Diamond F4 AIO 5-IN-1 Flight controller VTX ESC OSD Moblite 6/7

¥ 5,300 税込

商品コード:

数量

軽量な受信機・VTXも付属したF4オールインワンFC+ESC!

カメラを付けるだけでの簡単装着!

ワンボードで
軽量な機体に仕上げることが出来ます



FrskyやフタバSFHSS対応の受信機内蔵!

Moblite補修用



Happymodel DiamondF4 AIO 5-IN-1 Flight controller built-in VTX ESC OSD Receiver with Frsky Receiver For Moblite 6/7



Specification:

Flight controller

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Original whoop size compatible

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky receiver

Built-in 5V 1A BEC



Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_8.HEX

Default protocol: DSHOT600



Onboard Frsky SPI D8 receiver Version(SFHSS)

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model Channels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m



Onboard 5.8g VTX

Output power: 25mw~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready

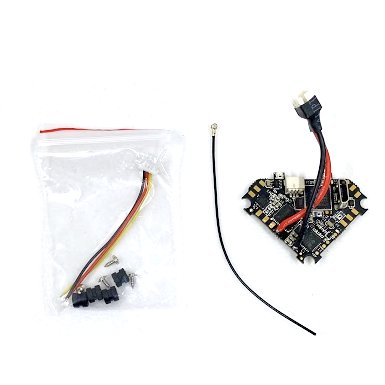

Package Included:

1*Flight controller
