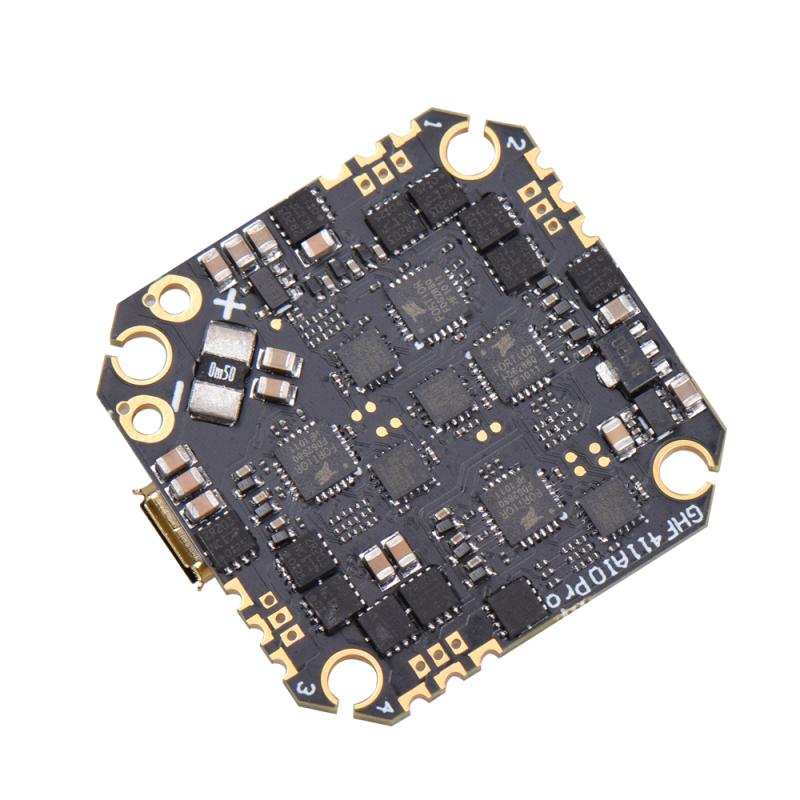

JHEMCU GHF411 PRO 2-6S F4 25A AIO
¥ 5,180 税込
商品コード：
関連カテゴリ
6セルまで可能なオールインワンF4+25Aのワンボード！
ESCはBLHeli
※XT60コネクター付き
OSD付きでコンパクトな設計！
コントローラーはBeta Flight等で設定が可能！
SPECIFICATION
Brand Name: JHEMCU
Model: GHF411AIO Pro
Item Name: F4 OSD FC Built-in 25A BL_S 4in1 ESC
Size: 32.5x32.5mm
Mounting Hole: 25.5x25.5mm
Weight: 6.3g
CPU: STM32F411CEU6 (100MHZ)
MPU: MPU6000 ( SPI)
Firmware: Betaflight JHEF411
Built-in Betaflight OSD ( AT7456E)
BEC Output: 9V 2A & 5V 2.5A
USART: UART1,UART2
Receiver: SBUS,IBUS,DSM2,DSMX ,TBS (UART2)
Blackbox: 8MB
Built-in Current Sensor
- Support WS2812 LED
Input Voltage: 3-6S Lipo
Con. Current: 325A
Firmware: BLHELI_S G_H_30.HEX
Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

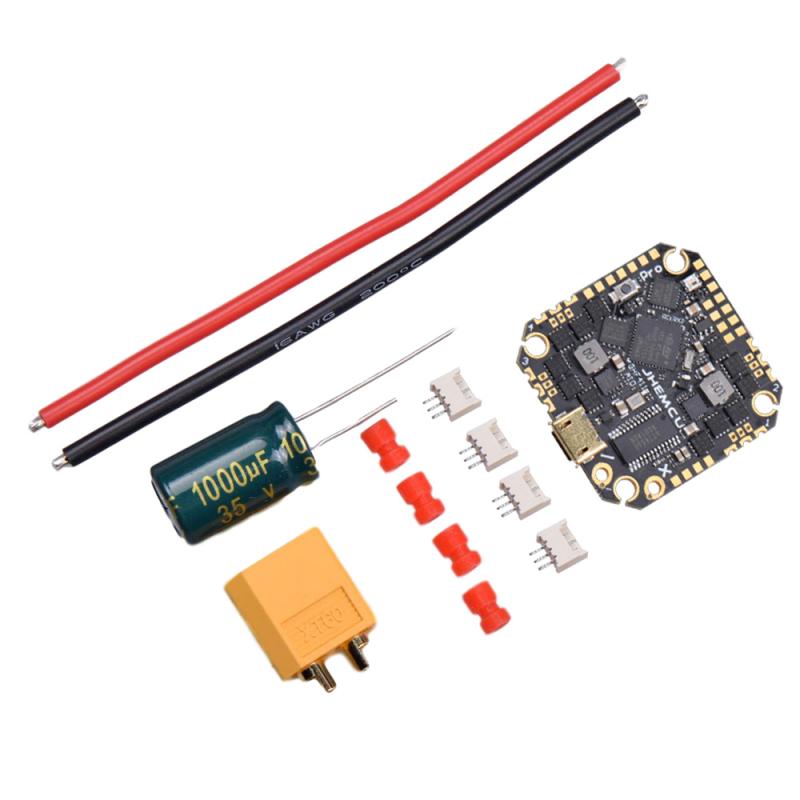

PACKAGE INCLUDED:
1x F4 FC AIO 25A ESC Board
2x Power Cable
1x XT60 Plug Connector
1x 35V 1000uF Capacitior
4x 1.25mm Connector for Motor(Plug and Play)
4x Anti-vibration Ball
