TBS PODRACER AIO 2-6S 30A
¥ 11,900 税込
商品コード：
関連カテゴリ
TBSクロスファイアNano受信機やUNIFY Nano 32 VTXなどをダイレクトで半田付けできる便利なFC
6セルまで可能なオールインワンF4+30Aのワンボード！
ESCはBLHeli_32

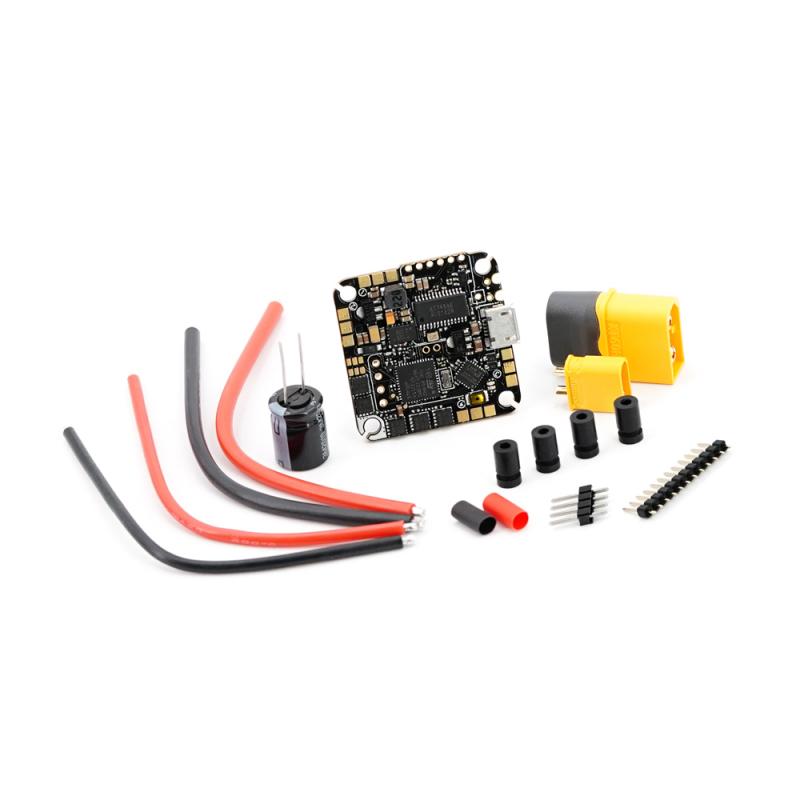

※XT60/XT30付属
OSD付きでコンパクトな設計！
コントローラーはBeta Flight等で設定が可能！
TBS partnered with Zeez to make this awesome whoop AIO. Introducing the the TBS Podracer AIO, the board is designed to cater for TBS Pro32 Nano VTX and TBS Crossfire / Tracer Nano RX with direct pin-header installation. The result is a clean, compact and lightweight core for your build..
The FC is equipped with F4+MPU6000 and the ESC is capable of True 30A current running BLHeli32. This board is versitle enough to run on your cinewhoop, 4/5" racer like the podracer and longrange cruiser like the TBS Aureo.

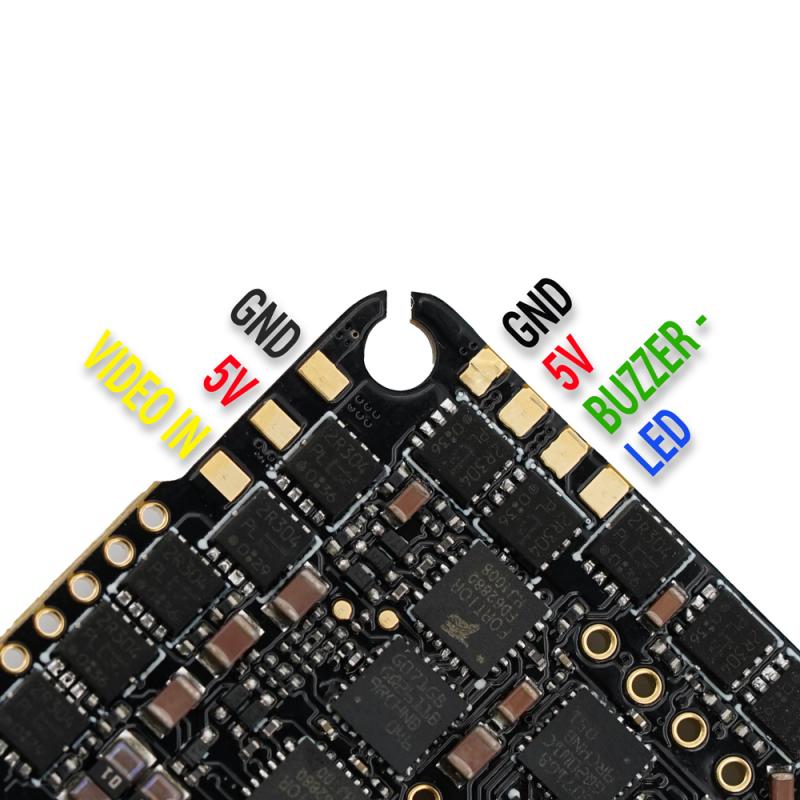

FC SIDE
Mounting holes: 25.5×25.5 mm / M2 holes
Up to 6S input
5V BEC up to 1.2A continuous
STM32F411 MCU (Support BetaFlight, EmuFlight)
MPU6000 Gyro/ACC
OSD chip Onboard (AT7456E)
2 available UART
LC Filter for 5V VTX and Camera
Direct solder connection for TBS Nano RX and TBS Unify Pro32 Nano
Support programmable LED like WS2812 etc
Built-in current sensor
ESC SIDE
Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Continuous current: 30A
Peak current: 35A
ESC firmware: BLHELI 32
PWM Frequency Range: 24KHz up to 96KHz

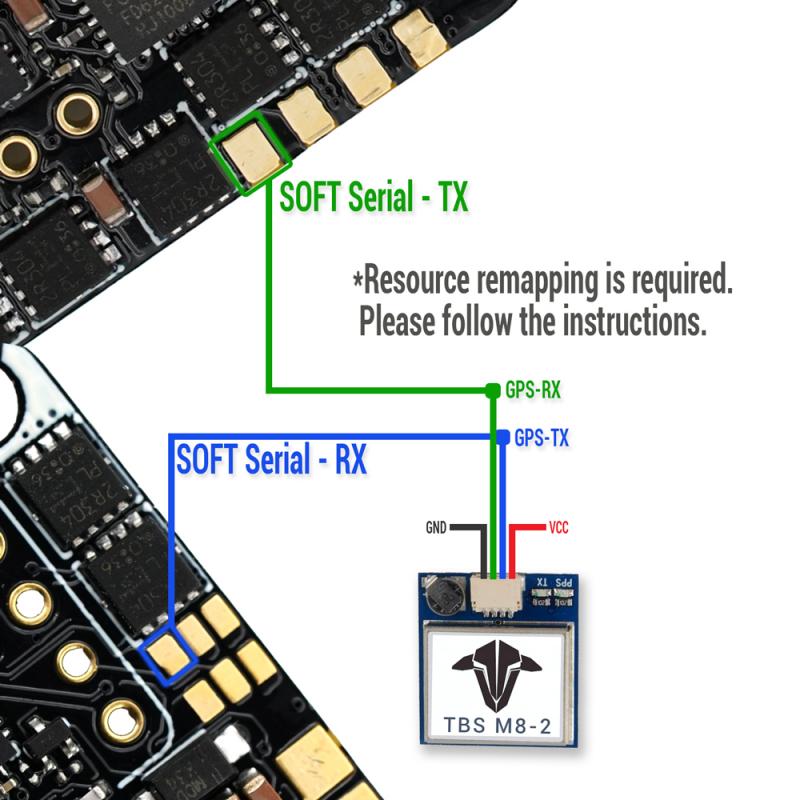

GPS INSTALLATION
Because of the phyiscal limitations, installing a GPS module to the FC will require a few extra steps to remap the board's resources.

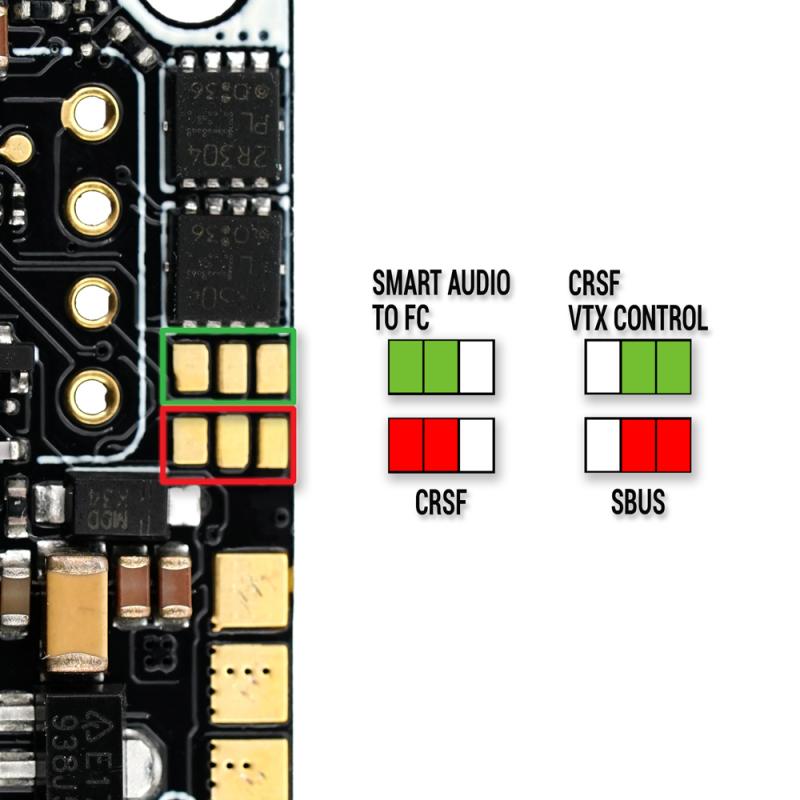

Note: The follow steps will disable LED and FC's SmartAudio and use as softserial for GPS.
