Happymodel BeecoreX Brushed F4+ESC +VTX+RX+OSD Flight Controller

¥ 4,850 税込

商品コード:

数量

受信機/VTXが内蔵されたブラシモーター用オールインワンフライトコントローラー!

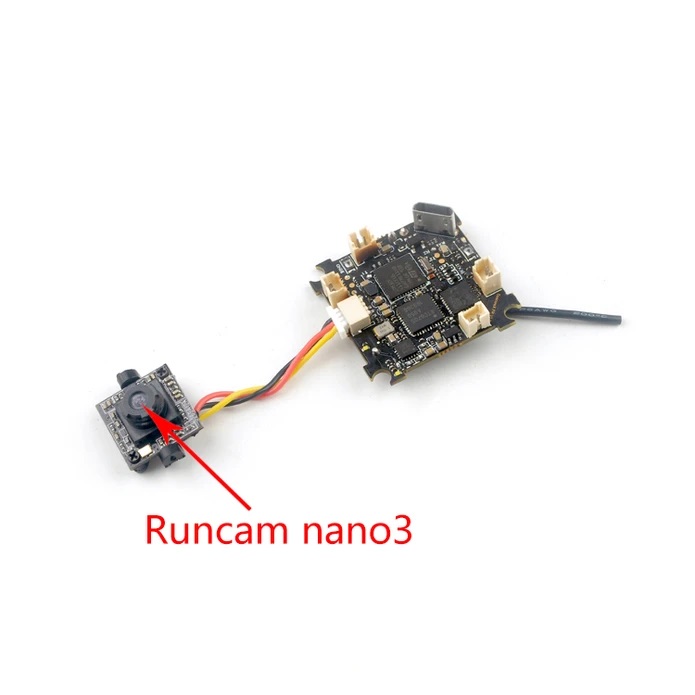

カメラとモーターのみ接続するだけでとても簡単!

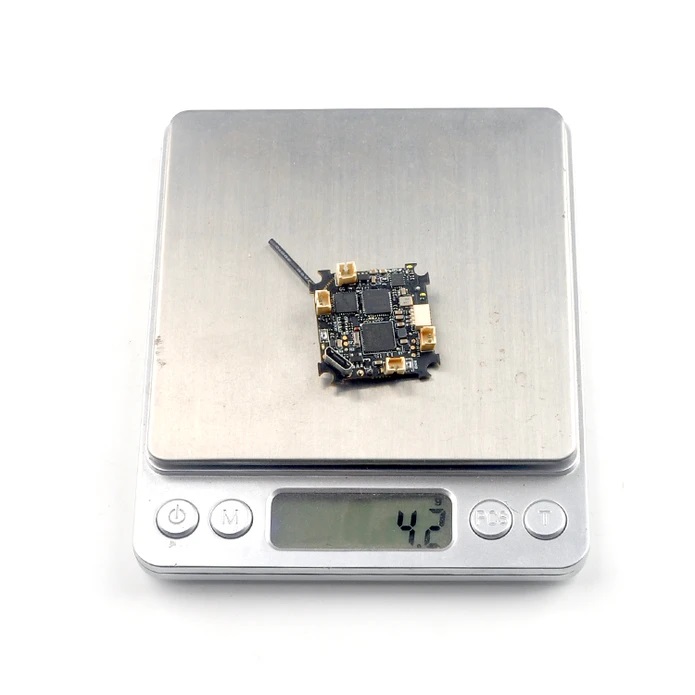

ワンボディで4.2gととても軽量です!







Specification:



Flight controller



(Frsky SPI RX version) Betaflight Firmware target: CrazybeeF4FR



MCU:STM32F411CEU6 (100MHZ, 512K FLASH)



Sensor: MPU-6000(SPI connection)



Board size: 28.5 * 28.5MM



Power supply: 1S battery input (DC 2.9V-4.35V)



Built-in 5A(each) Brushed 4in1 ESC



Built-in Betaflight OSD(SPI Control)



Built-in 5.8G VTX 25mw~100mw switchable



Built-in SPI Frsky receiver(compatible with Frsky_D/ Frsky_X/ S-FHSS/ Redpine protocol)



Built-in 5V 1A BEC



Built-in voltage detection







Onboard Frsky SPI  receiver Version



SPI BUS receiver Frsky version



Compatible with Frsky D8/D16 ( D8 is recommend) , S-FHSS , Redpine protocol



Channels: 8ch



Failsafe support



No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m



RSSI compatible







Onboard 5.8g VTX



Output power: 25mw~100mw switchable



Frequency: 40CH



Input voltage: 3.3V 5.5V



Current consumption: 300mA(type)



Frequency: 5.8GHz 5bands 40 channels



With Race band



Smartaudio ready



VTX POWER=1 (25mw)



VTX POWER=2(50mw)



VTX POWER=3(100mw)



Recommend to use 50mw
