BETA FPV BEC Board for GoPro Hero6/7

¥ 1,100 税込

商品コード:

数量

GoPro HERO6/7Blackの改造用キット!

GoProをすっきりと軽量にしたい方には、このBECボードが役立ちます

5V @ 2A BEC、ストックのGoProボタンとLED、プラグイン可能なコネクター、リモート録音を統合

このBECボードは、GoPro Hero 6およびHero 7 Blackに適合します。 ただし、Hero 8は対象外



※改造マニュアル

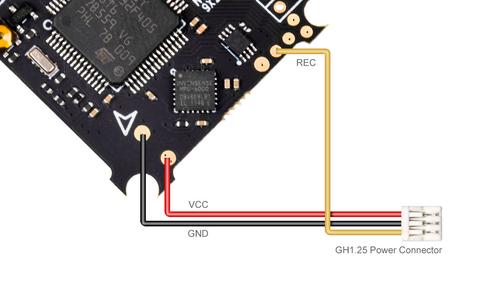

95X用追加CLIコマンド

resource FLASH_CS 1 NONE

resource PINIO 1 B12

set pinio_box = 40,255,255,255

save

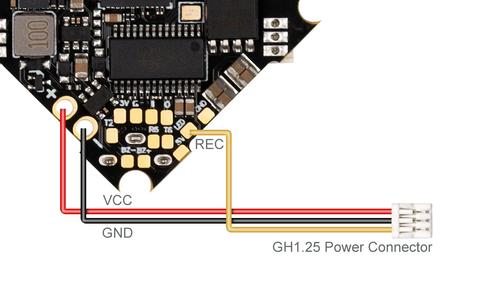

85X用追加CLIコマンド

resource LED_STRIP 1 NONE

resource PINIO 1 A08

set pinio_box = 40,255,255,255

save



【仕様】

Item: BEC Board for GoPro Hero

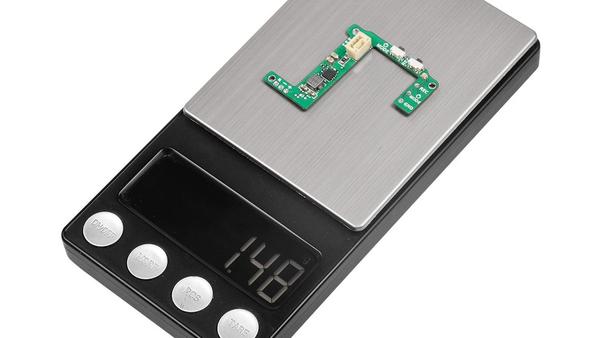

Weight: 1.48g

Output: 5V@2A

Input Voltage: 2-4S

Connector: GH 1.25 3P Connector

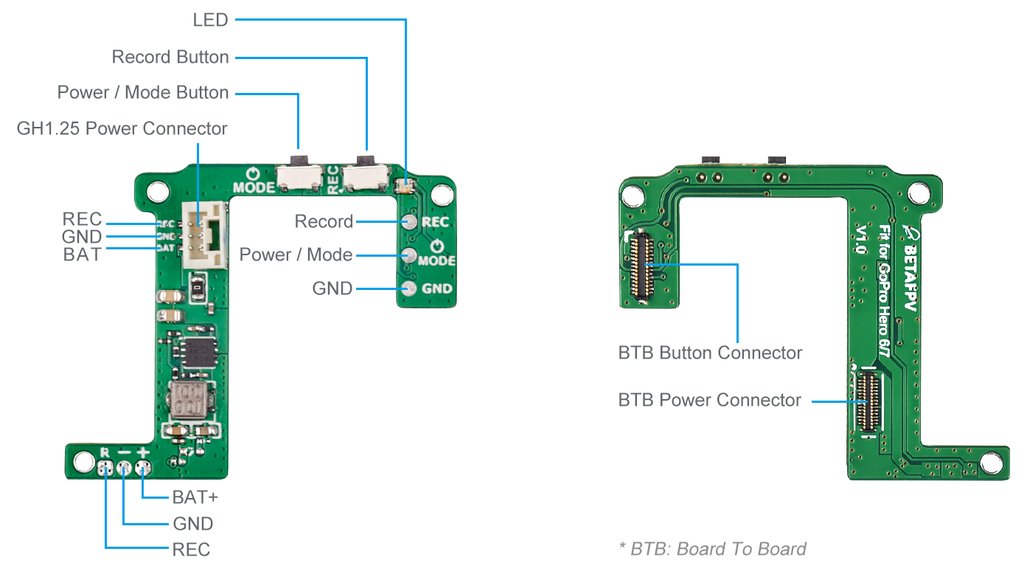

Diagram of BEC Board

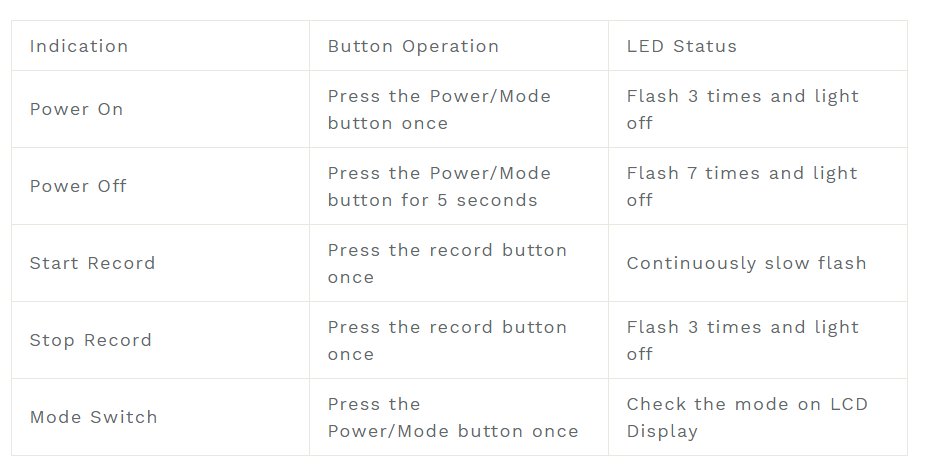

The two buttons on the BEC board has the same function as the stock GoPro buttons. Three actions we will use frequently.



Power On - Press the Power/Mode button and the LED flashes three times and light off.

Start Record - Press the Record button once and LED flashes slowly. If LED flash once and light off, it means there is no SD card.

Stop Record - Press the Record button and LED stop slow flashing.

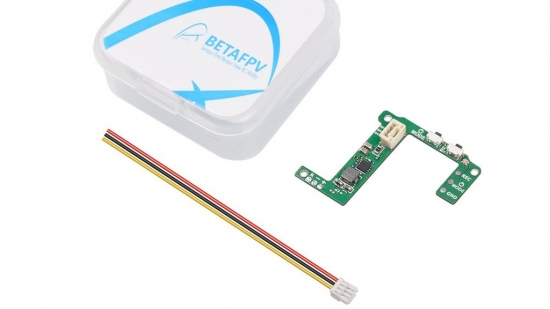

Package



1 * BEC Board for GoPro Hero

1 * GH1.25 Power Cable (80mm 30AWG)
