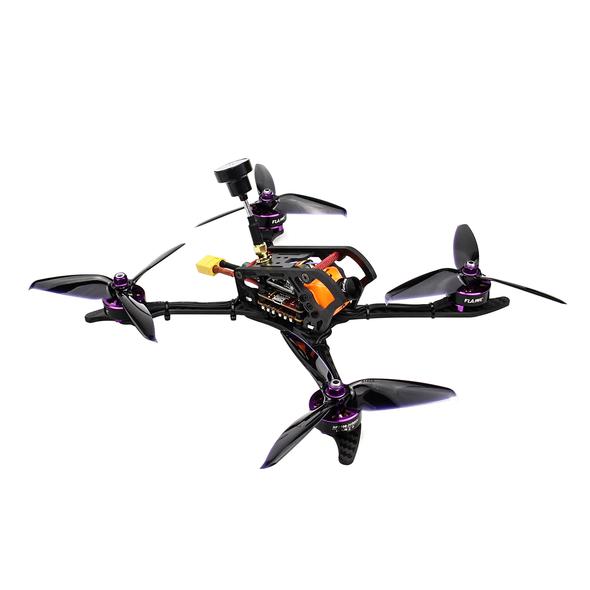

HGLRC 4-5s 5" Mefisto FPV RACING DRONE PNP

¥ 27,230 税込

商品コード:

数量

即レース可能なスペックのレーシングドローン!

4~5セルの軽量なフルスペック仕様!

フレームはRotoramaデザイン!

カメラはRuncam Swift2標準搭載でクリアな視界!

60A対応のESC

モーターはトルクフルで扱いやすい2306-2450kv



※受信機は別途ご購入ください



Specification:



Item Name: HGLRC Mefisto 226MM FPV RACING DRONE-PNP

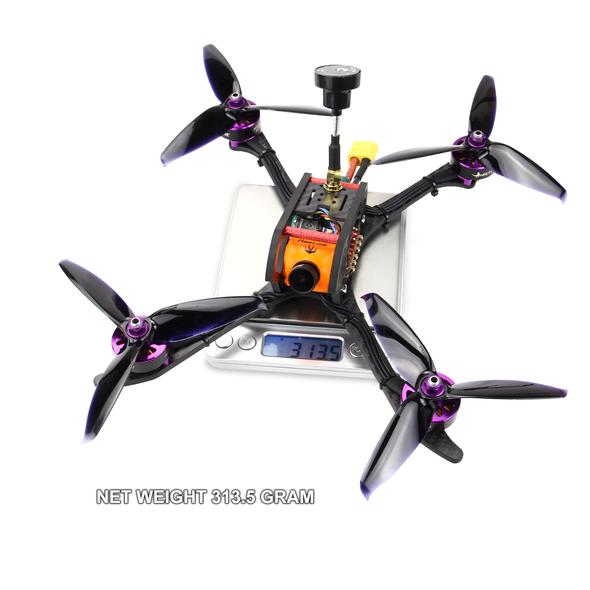

Net Weight: 313.5g

Total Weight With Package: 685g

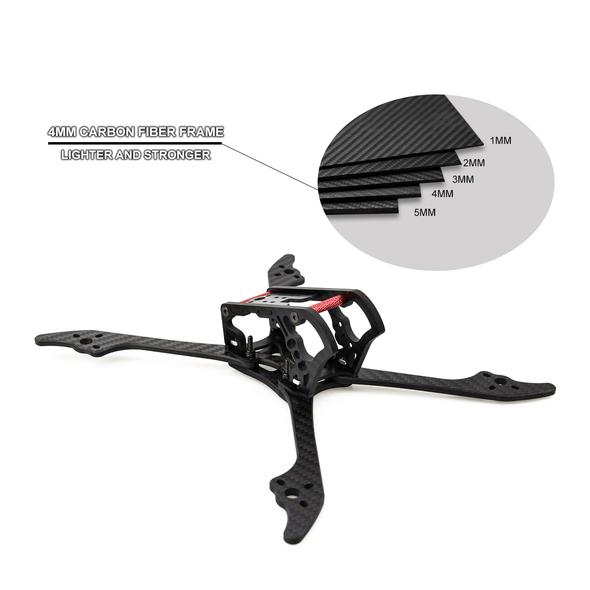

Mefisto 226MM Carbon Fiber Frame Kit

Wheelbase: 226mm

Arm Plate Thickness: 4mm

Bottom Plate Thickness: 4mm

Material: Carbon Fiber

Weight: 76g



Airbus F4 OSD Flight Control Board ( D-Shot Version)

MPU: MPU6000-SPI

CPU: STM32F405RGT6, dual 8K.

Black Box: Flash 16M

Input Voltage: 2-6S Lipo

Built-in Betaflight OSD to adjust PID

BEC Output: 5V@3A

Size: 36x36mm board, 30.5mm mounting holes (M3)

Weight:8.3g

Support SBUS/PPM/DSMX receiver



DinoShot 60A BL32 3-6S 4-in-1 ESC

Input Voltage: 3-6S Lipo battery

Constant Current: 60A-4S/50A-5S/40A-6S

Peak Current: 70A

BEC Ouput: NO

Firmware:32bit ESC with BLHELI_32 firmware

Size: 36x36mm (main board)/40x48mm (including pad)

Installing Hole: 30.5x30.5mm,M3

Weight: 12.9g

CPU:STM32F051

MOS Tube: TOP QUALITY MOSFET

Protocol:DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped



GTX226 V2 VTX (Transmitter)

Output power: PIT/25mW/100mW/200mW/400mW switchable

Control mode:BFOSD control(RX)/button

BAT: 7-26V,BEC 5V-1A

240mA----400mW

Video system: NTSC/PAL

Antenna: IPX

Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ

Size: 20mm×25.5mm×8.5mm

Weight: 5.3g

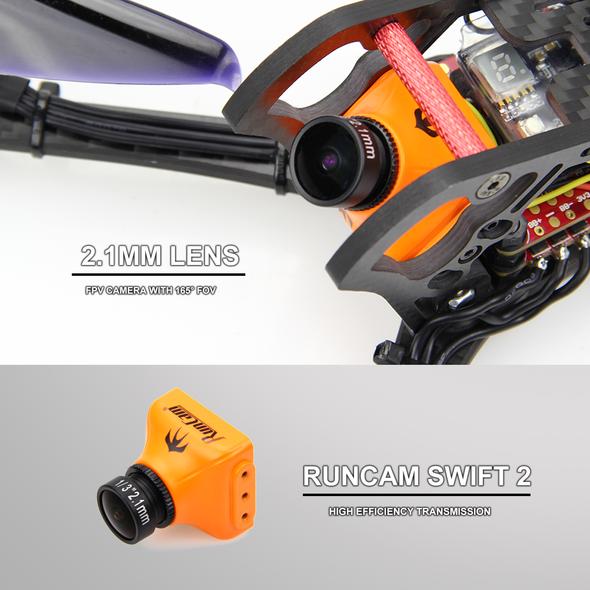

RunCam Swift 2 CAMERA

Image Sensor: 1/3" SONY Super HAD II CCD

Horizontal Resolution: 600TVL

Lens: 2.1mm Lens

FOV: 160 degree(2.1mm)

Signal System: PAL

S/N Ratio: >60dB(AGC OFF)

Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000

AutoGain Control(AGC): YES

Back light compensation(BLC): YES

Min.illumination: 0.01Lux/1.2F

WDR: D-WDR

DNR: 2DNR

Day/Night: Color / Auto / B&W

Power: DC 5 to 36V

Net weight: 14g

Dimensions: 28.5mm * 26mm * 26mm

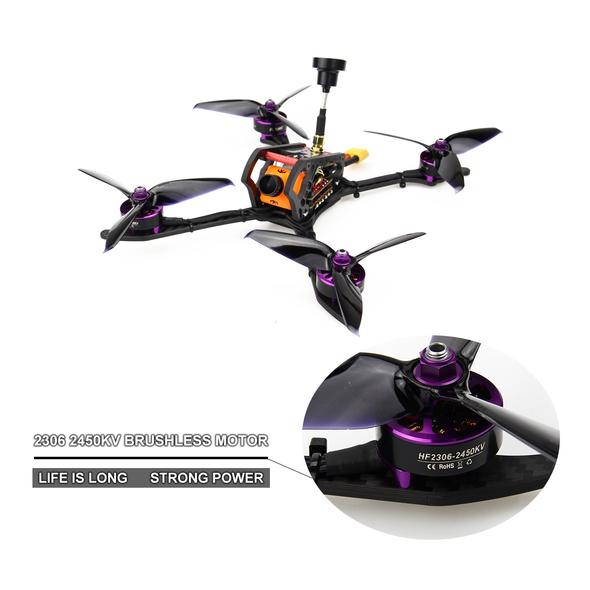

HF2306 2450KV 4-5S Motor

KV: 2450KV

Stator Diameter: 23mm

Stator Thickness: 6mm

No.of Stator Arms: 12S

No.of Rotor poles:14P

No-load Current(A/10V):1.6A

Motor Resistance:49mΩ

Max Continuous Current:41.4A

Max Continuous Power:660W

Weight:32g

Rotor Diameter:28.72mm

Shaft Diameter:5mm

Body Length:16.1mm

Overall shaft Length:29.7mm

No.of Cells(Lipo):4S~5S

Wire type:20AWG 110mm



Gemfan 5152 5 Inch 3-Blade Propeller

Color: Black

Quantity: 3 CW & 3 CCW



Package Included:

1x HGLRC AIRBUS F4OSD Flight Control Board

1x HGLRC 60A BL32_60A 3-6S 4in1 BLHeli_32 ESC

1x HGLRC GTX226 V2 VTX FPV Transmitter

1x RunCam Swift 2 CAMERA

1x Mefisto 226MM Carbon Fiber Frame Kit

4x HGLRC 4-5S HF2306 2450KV Motors

6x Gemfan 5152 3 propeller

1x Battery Strap

1x Pagoda 5.8G Antenna
