BETA FPV F4 1S AIO Brushless Flight Controller (SFHSS)
¥ 7,800 税込
商品コード:
関連カテゴリ
VTXも内蔵となった1セル用のAIO軽量フライトコントローラー!
モーターコネクター装着済+フタバSFHSS受信機内蔵!
Tiny Whoop用オールインワンブラシレスフライトコントローラー!(モーターコネクター装着済)
1セル専用で5A ESCが付属のワンボードFCです!
OSD付きでコンパクトな設計!
ブラシレス専用のフレームと組み合わせると30gを切ることが出来ます!
コントローラーはBeta Flight等で設定が可能!
※ファームはMATEKF411RX
レシーバーモードはSPI RX supportとなります
Specification of F4 1S AIO FC(SPI Rx)
Item: F4 1S AIO FC(Frsky/Futaba Rx)

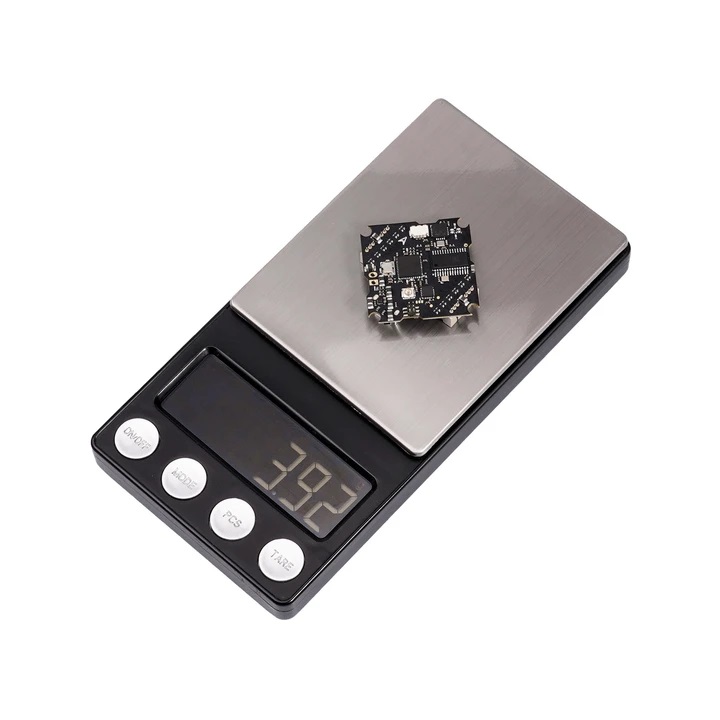

Weight: 3.92g(without antenna and BT2.0 connector)
VTX Power: 25mW
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Firmware version: betaflight_4.2.0_STM32F411

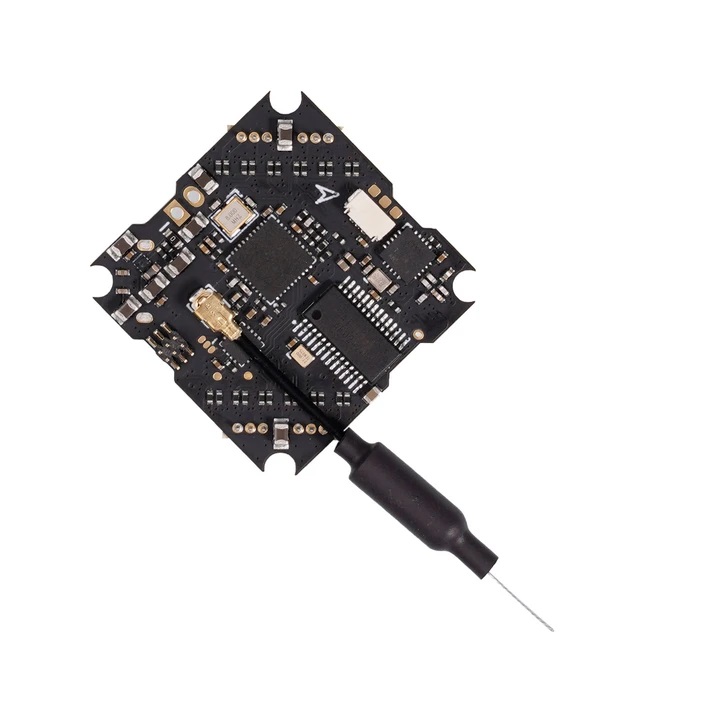

Receiver: Support Frsky Receiver/ Futaba Receiver
Motor Pin Connecter: 1.25mm Header Pins
Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame
Specification of ESC
Built-in ESC with 5A continuous and peak 6A current
Input voltage: 1S Lipo
ESC firmware: O_L_5_REV16_8.HEX

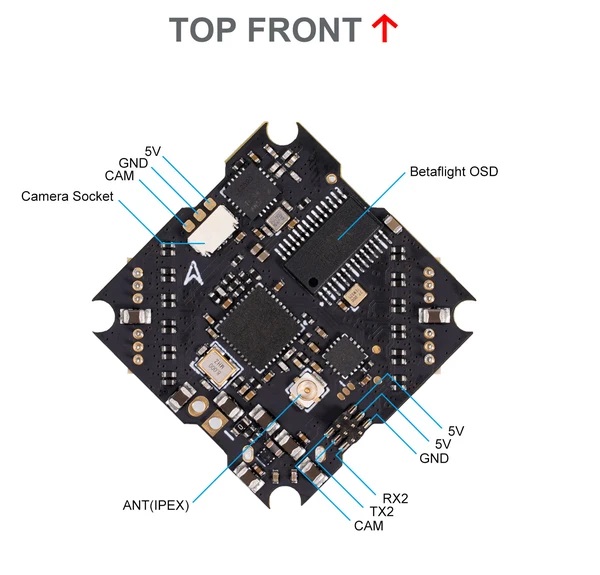

OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

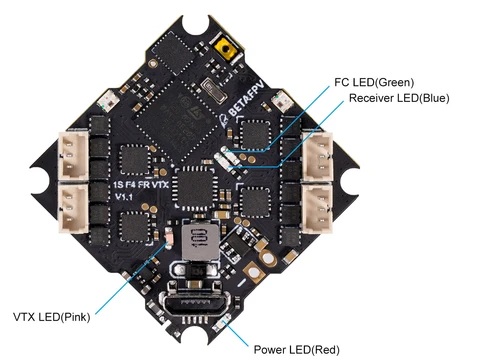

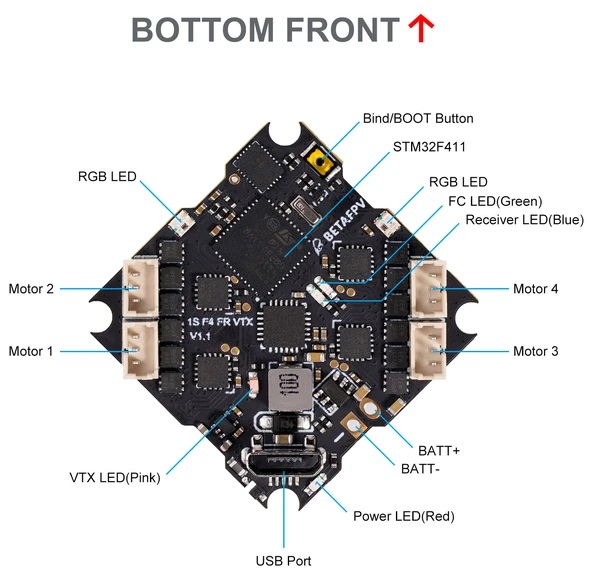

4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)
Recommended Parts of F4 1S AIO FC(Frsky/Futaba Rx)
Battery: BT2.0 300mAh 1S Battery / BT2.0 450mAh 1S Battery / BT2.0 260mAh 1S Battery
Frame: Meteor65 Frame / Meteor75 Frame
Props: 31mm 4-Blades props / 40mm 4-blades props
Motors: 0603 motors / 0703 motors / 0802 motors / 0802SE 22000KV Motor

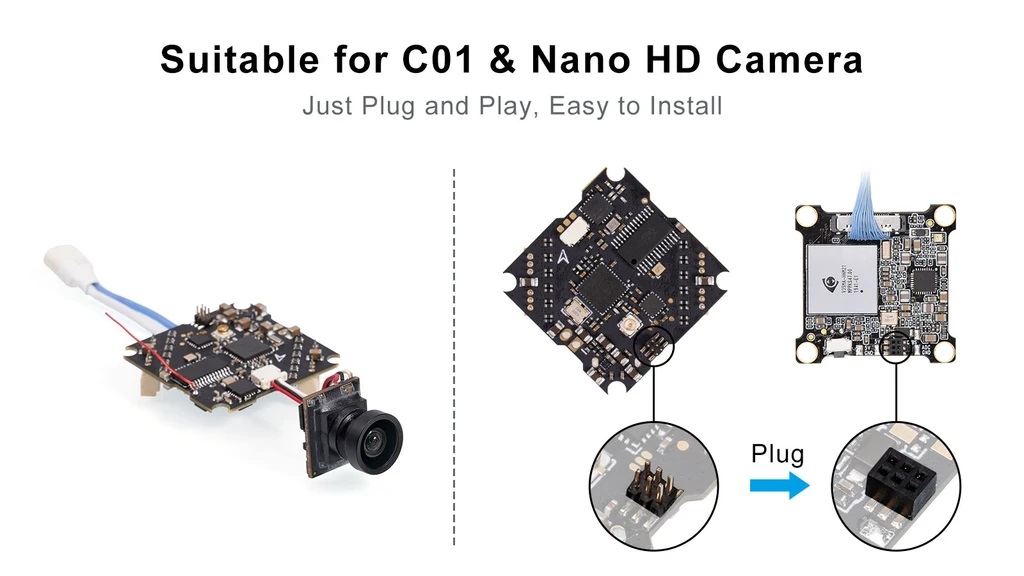

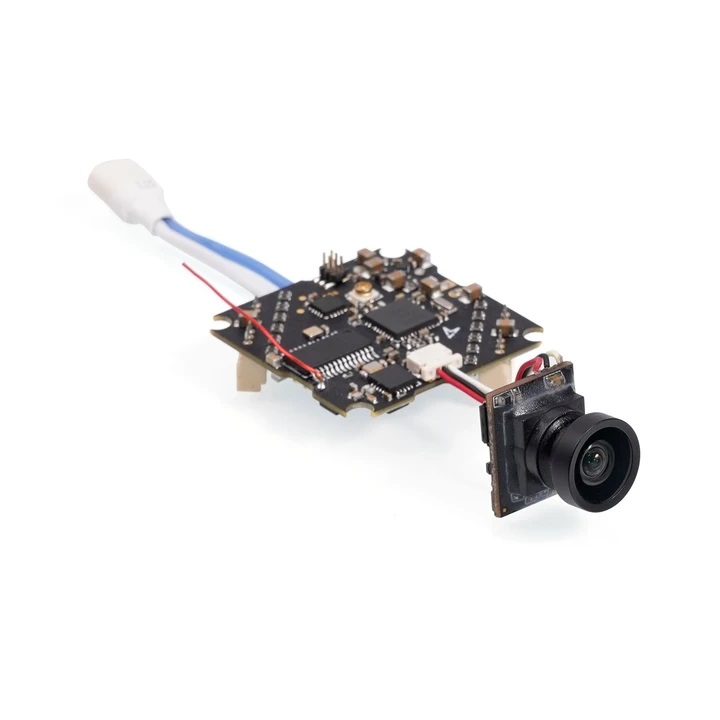

Camera: C01 Camera / C01 Pro Camera / BETAFPV Nano HD Camera

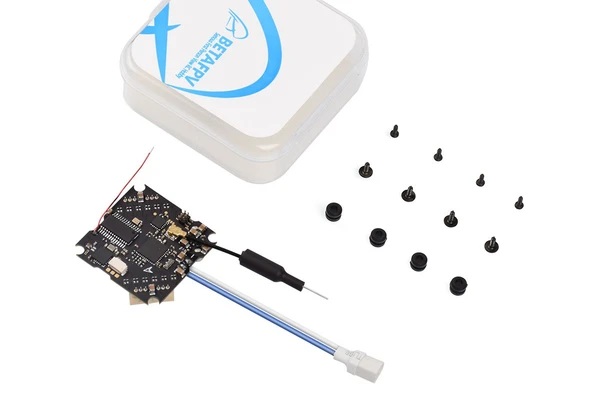

Package
1 * F4 1S AIO Brushless Flight Controller
4 * M1.2x4mm Screws
4 * M1.4x5mm Screws
4 * Anti-vibration Rubber dampers
