WDA公式ドローンショップ

¥ 16,800 税込

商品コード：

2セルで気軽に飛ばせる100サイズToothPickマイクロドローン！

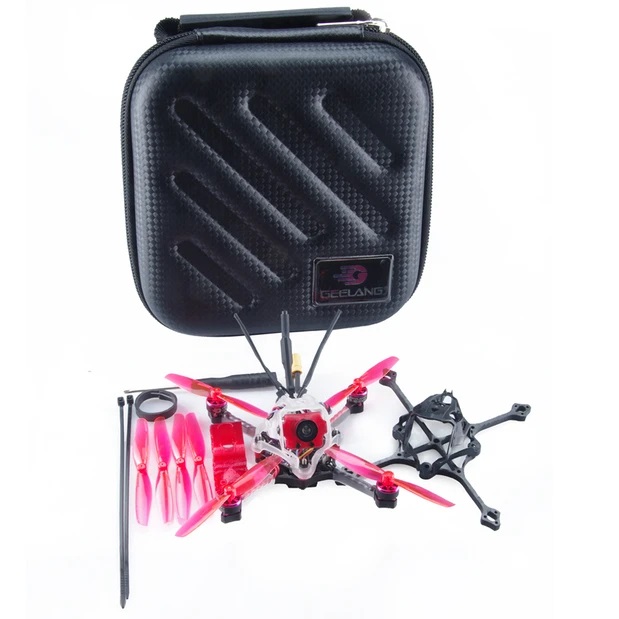

ケースや予備のフレームおよびキャノピーが付属したお得なセットです

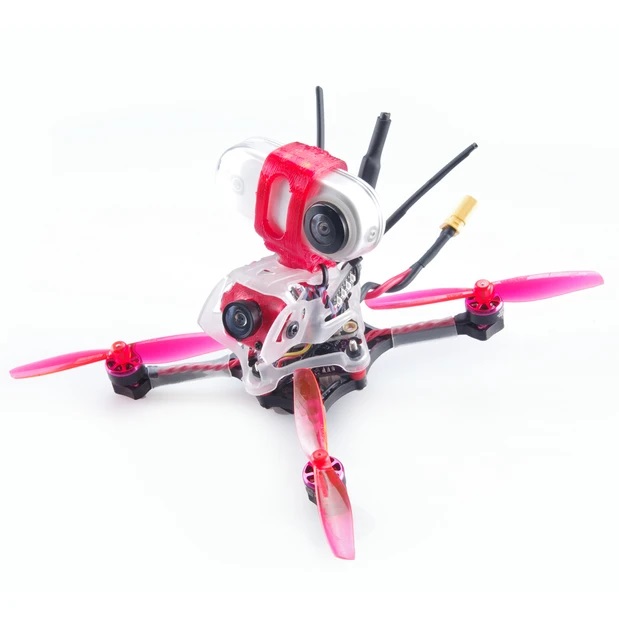

LEDやINSTA360GOマウントなどが付属します

初心者でも飛ばしやすく、バッテリーはXT30コネクターの2セルが300～450ぐらいが最適です

受信機はFrsky XM+が付属



Specifications:

Brand Name:GEELANG Mode Name:WASP V2 Item Name:2S 100mm Brushless Whoop racing drone BNF Wheelbase:100mm Size:79x79x45mm Weight: 35g(without battery) Weight: 52g(with Original 2s 300mah lipo battery)

Features:

*Use Play F4 flight controller to support 1-2s lithium battery power. Integrated Betaflight OSD function, display the flight voltage, receiver signal, and can observe the situation in real time during the flight.

*Prepare Smartaudio, change the VTX frequency band and channel through OSD(Adjust the settings and PID of the flight controller via OSD). 2S ultralight toothpick drone has strong power, low noise and long flight time. *Support Betaflight adjustment, multiple flight modes, carefully adjusted by the original factory, suitable for novice flight practice, stable style. *The nacelle cover is made of a one-piece injection molded plastic of a special material. Sturdy structure and light weight. It supports multiple camera adjustments. If there is enough space, the heat dissipation effect will be better. *The receiver version is used independently, and the electronic control is more stable. *The flight control adopts the newer version of bf4.2, the ESC adopts version 16.77, the bidirectional DSHOT mode and the gyroscope RPM filter are turned on, making the Flight Control more stable. *Using the latest GL0802 motor with a power input of 2s and a 65mm two-blade propeller, the efficiency is extremely high. Flight control is stable. Double-sided RGB LED ready *The thickness of the fuselage carbon plate material is 4mm, which will not deform or vibrate during high-speed flight. *The whole machine is controlled at about 35 g to achieve ultra-high and flexible control. Body weight becomes a professional indicator.

Spare parts specifications:

Motor

Mode:GL0802 KV14000 Configuration:9N12P Stator Diameter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.5mm Weight(g):1.9g No.of Cells(Lipo):1S-2S

Flight Controller

Flight controller:Play F4 whoop Version:F411CEU6 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size:28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.2-8.4V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5V 2A BEC Built-in voltage detection Firmware version:Betaflight Configurator4.2.0

Onboard 4in1 ESC

Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current:5A continuous peak 7A (3 seconds) Support BLHeliSuite programmable Factory firmware:S_H_50_REV16_77.HEX Default protocol:DSHOT300 Power input:XT30

Frsky NON-EU XM+ Receiver Version

SBUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m Operating Voltage Range: 3.7~10V Operating Current: 30mA @5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware upgrade-able, can be upgrade to EU-LBT with RSSI
