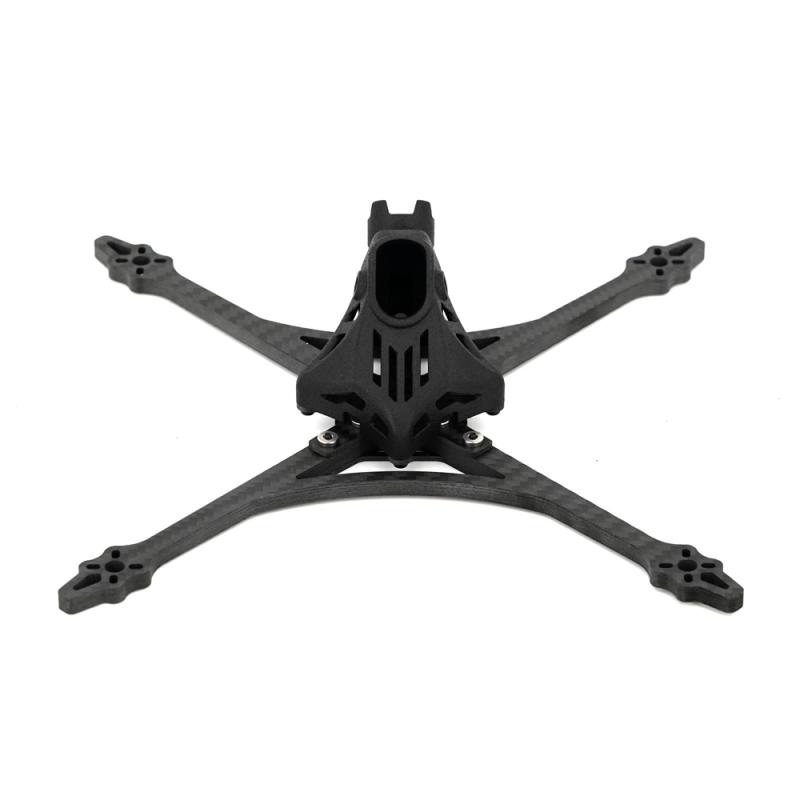

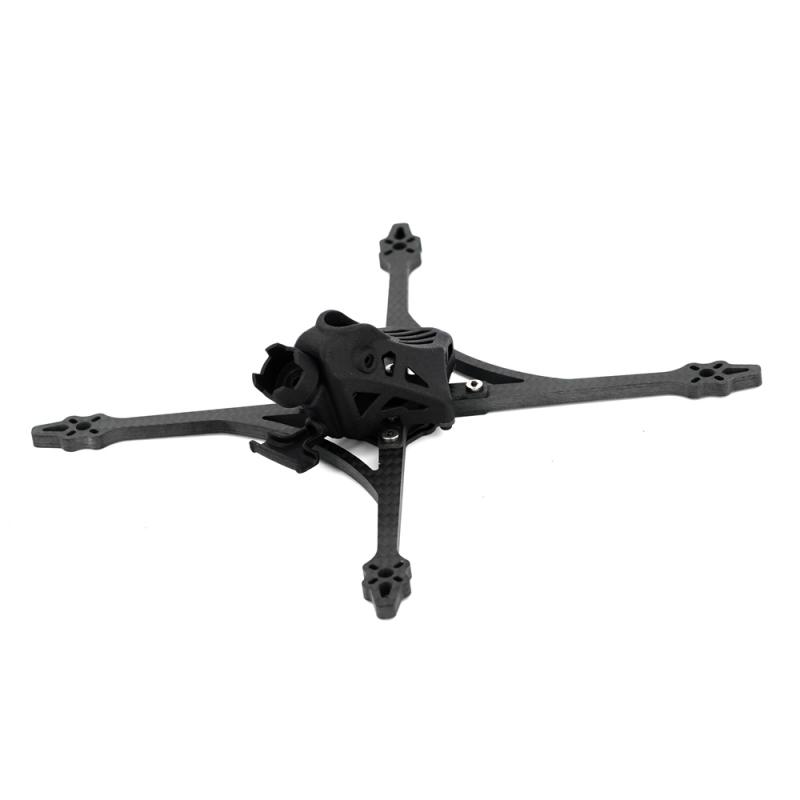

TBS SOURCE PODRACER 5inch Frame Kit
¥ 3,980 税込
商品コード：
関連カテゴリ
レース専用に設計されたレーシングフレーム！
カメラの位置が後方にマウントされ、スピードフライト時に機体の幅間隔を把握しやすくなっています
5インチの軽量でコンパクトなフレームです！
※フレームキットのみ
ABOUT THE PROJECT
The SOURCE PODRACER project is a collaborative FPV frame project initiated by Team BlackSheep.
The frame is donated to the community to empower creators and makers,
and integrate best practices and current trends faster into a continuously manufactured product.
In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point,
great documentation and wide availability of compatible parts and accessories,
without violating other people’s intellectual property.
GET INVOLVED!
Project discussion: https://github.com/ps915/source_podracer
Project files: Coming Soon
3D Printed files on Thingiverse: Pod
3D Printed Parts (STL) Coming Soon
詳細
Wheelbase: 200mm
Stacking Mounting Plate: 1.5mm
Bottom Plate: 1.5mm
Arms: 5mm thick
Stack Mout: 19 x19mm, 26x26mm, 20x20mm
Motor Mount: 12 x 12mm & 9 x 9mm
Frame weight: 47g

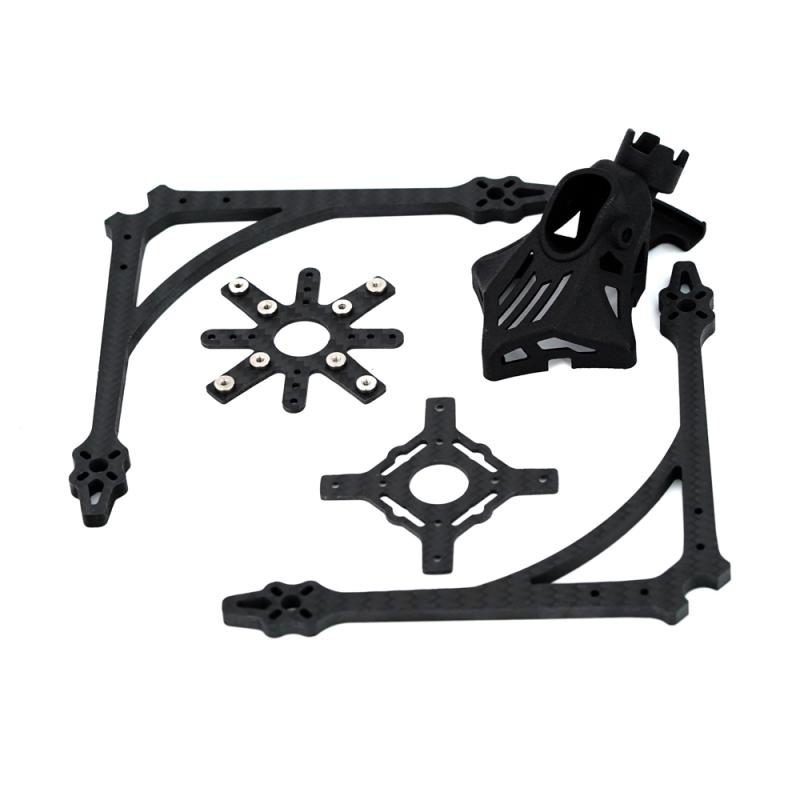

内容
8 x M2x10mm Countersunk screws
4 x M2x12mm Countersunk screws
2 x M2x6mm Socket head screws
24 x M2x10mm Socket screws
1 x 1.5mm Carbon Fiber Top Plate
1 x 1.5mm Carbon Fiber Bottom Plate
2 x 5mm Carbon Fiber Arms

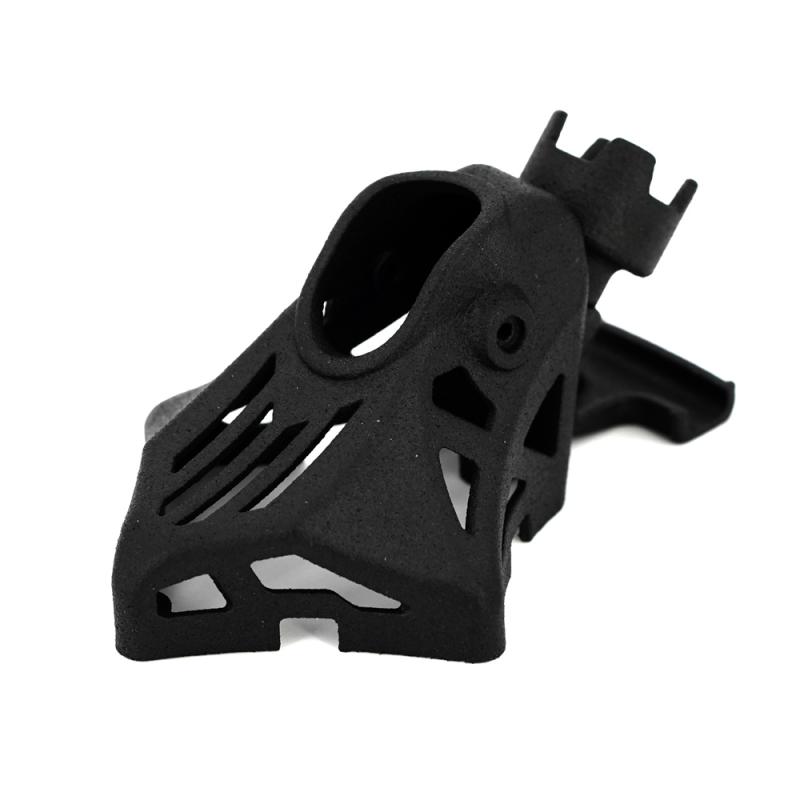

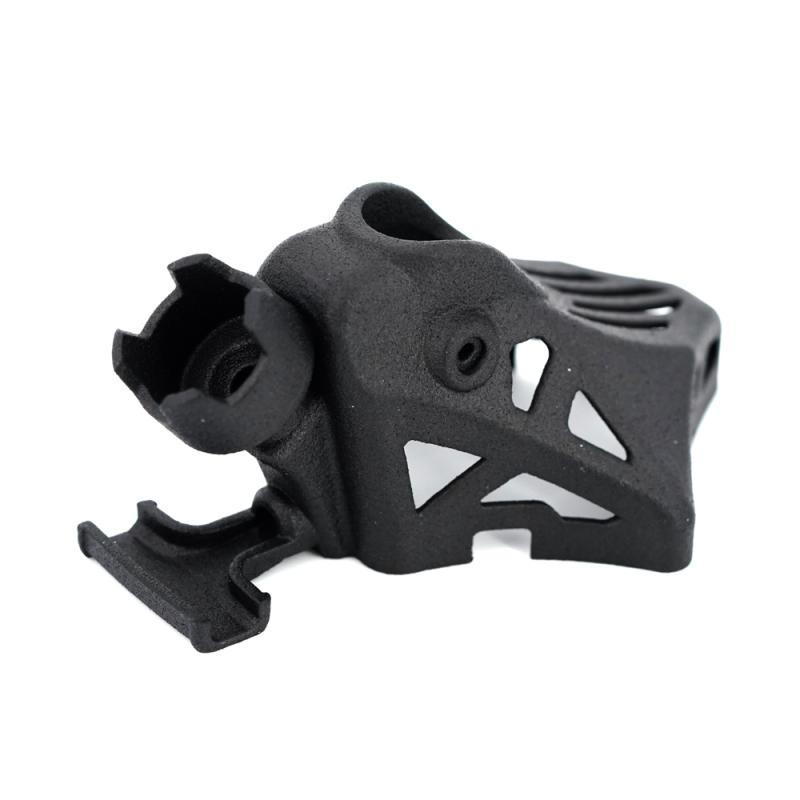

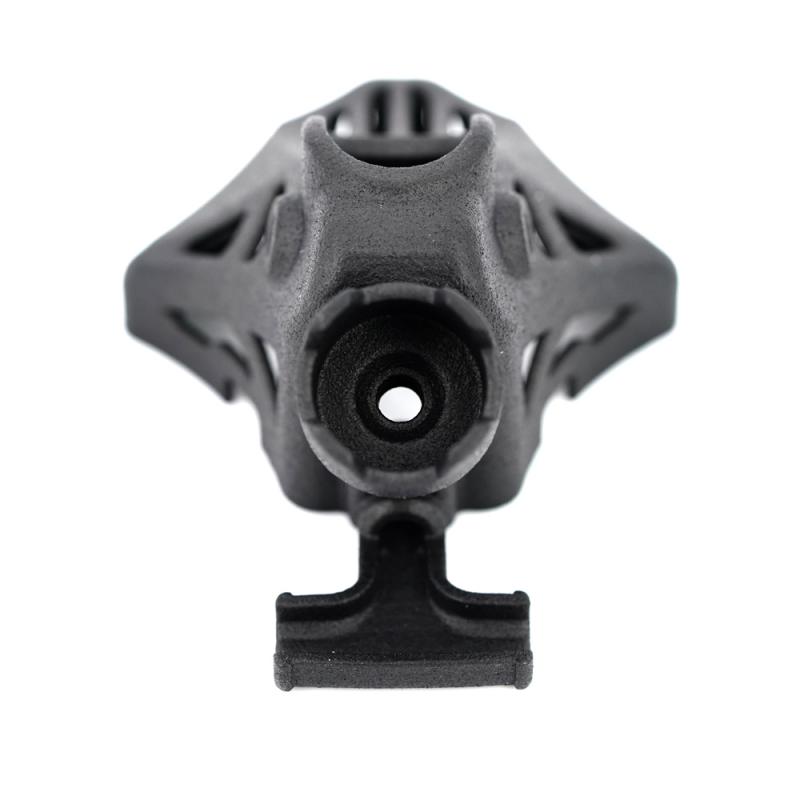

Black Nylon 3D printed canopy
推奨パーツ
AIO: BetaFPV Toothpick F4 2-4S AIO Brushless Flight Controller 20A(BLHeli_S)
Motors: 1505 - 3600kv
Camera: Caddx Ant, RunCam Racer Nano 2
VTx: TBS Unify Pro32 Nano or TBS Unify Pro Nano
Antenna: TBS Triumph Pro (U.FL) *Strongly recommended, the pod is designed for this antenna.
Props: 5" - HQ Durable Prop T5
Battery: 450 - 600mAh, 3-4S
