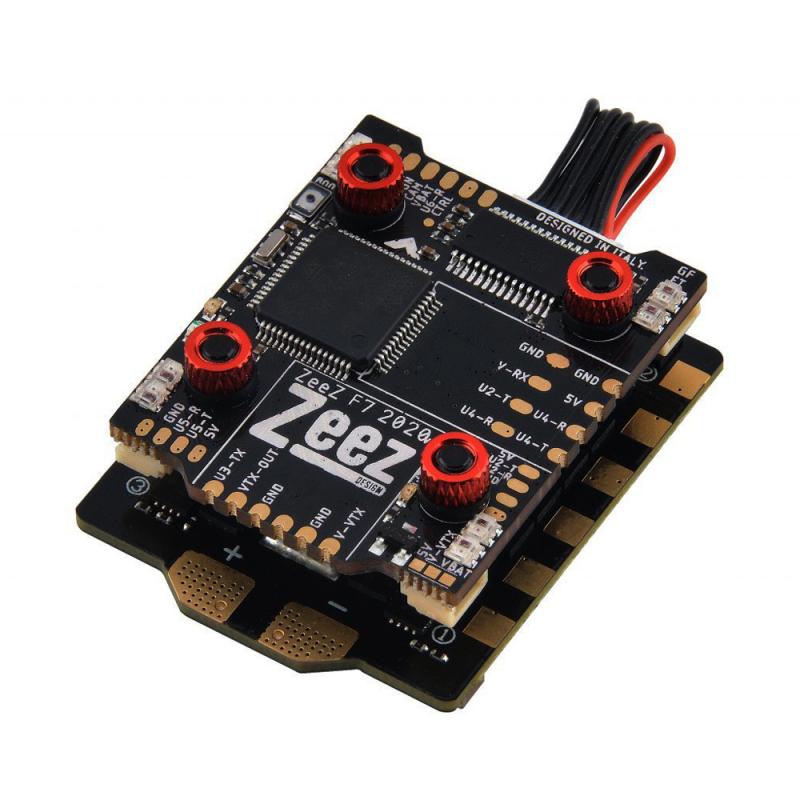

ZEEZ 2020 STACK F7 45A

¥ 11,980 税込

商品コード:

数量

マイクロ機に最強のF722+BLHELI32-45Aスタック!

LEDコネクター付で簡単いLEDを装着できます

振動防止マウントブッシュ付

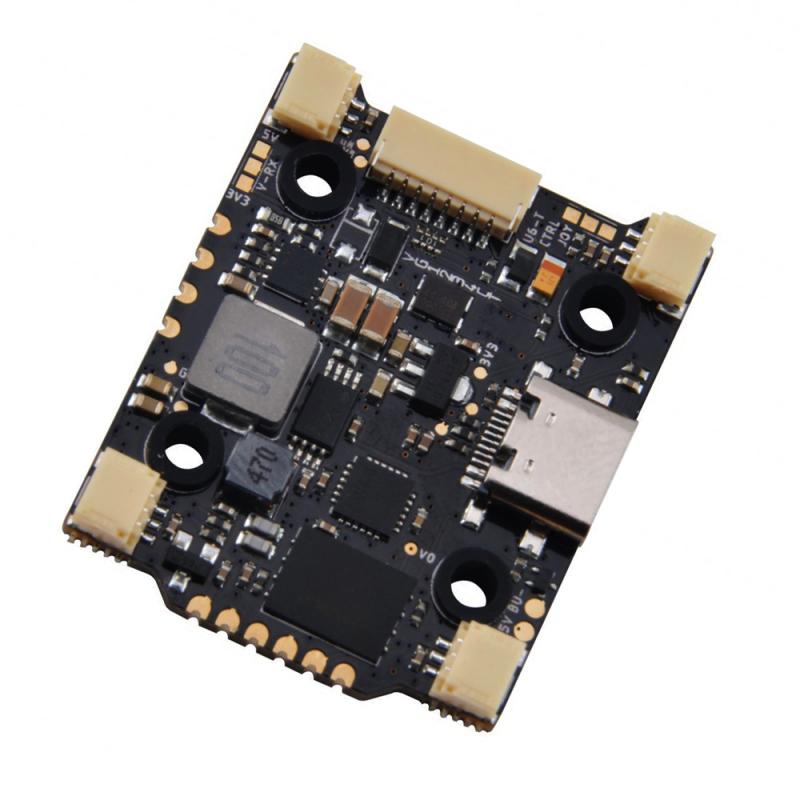

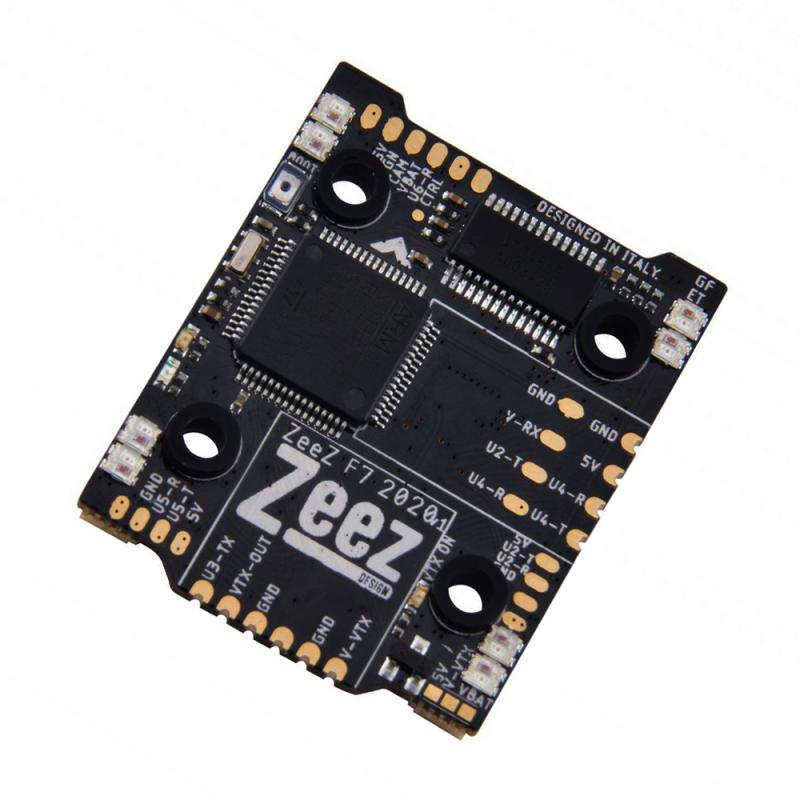

ZEEZ F7 2020 SPECIFICATIONS



Mounting Holes 20×20



Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation.



Up to 8S input (max 36V)



5V BEC up to 3A continuous



STM32F722 MCU (Support Betaflight, INav, Emuflight)



MPU6000 Gyro/ACC for smooth performance



128MB Onboard flash



OSD chip Onboard



6 available UARTS



VTX switch to control the ON/OFF of the VTX



directly from your transmitter (control via Betaflight with USER1 mode)



LC Filter for 5V VTX and Camera



USB Type C connector



Onboard RGB LED distribution for clean wiring



to the LED on the arm of the quad.



8 Onboard RBG LED (compliant with FAI Rules)



Logic Side and USB current protection

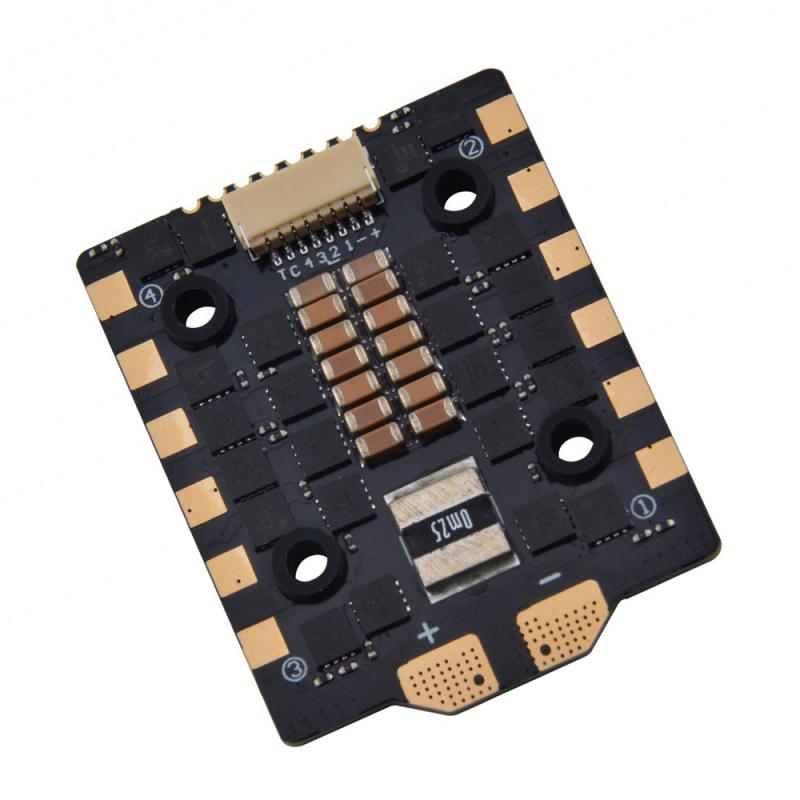

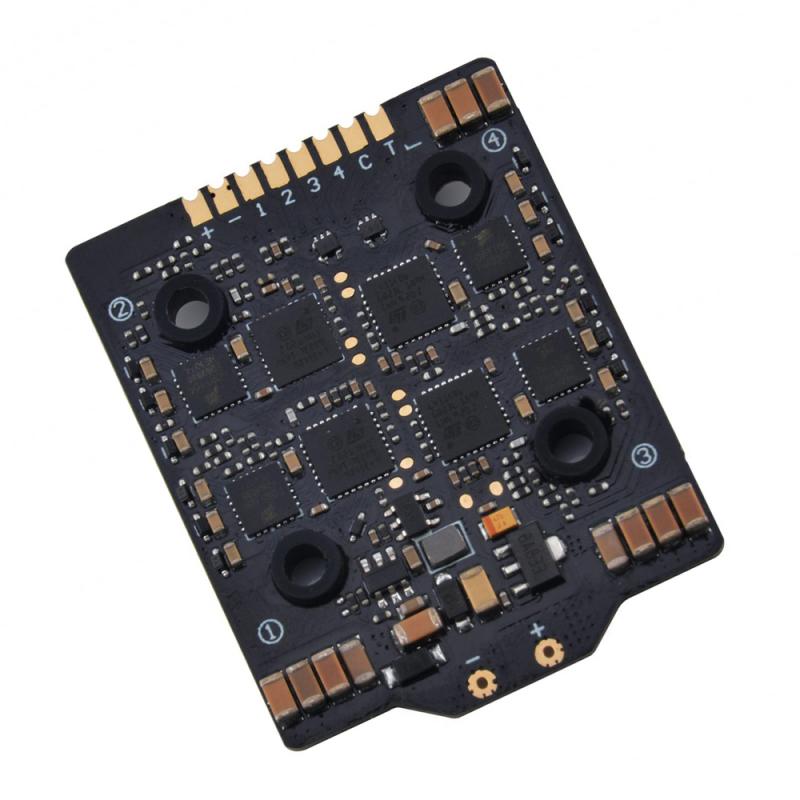

ZEEZ ESC 4IN1 45A 2020



Mounting Holes 20×20



3S to 6S input



Constant Current: 45A



Peak Current: 55A



STM32L4 MCU (ARM Cortex M4, 80MHz frequency)



BlHeli32 Firmware (support Dshot150/ Dhsot300 /Dshot600/ProShot 1000) and still compatible with all older analog protocol (OneShot42, OneShot125, Multishot)



8 Pin JST connector and 8 Pin solder pads



Holes for Aluminum Low ESR capacitor (included 35V 470uF Low ESR capacitor and a spare capacitor)



Onboard analog current sensor (Betaflight Scale: 200)



ESC telemetry to read RPM and ESC temperature



Compatible with Bidirectional Dshot out of the box





ZEEZ 2020 STACK (WITHOUT LED) INCLUDES:



(1X) Zeez F7  2020 Flight Controller



(1X) Zeez ESC 4in1 45A 2020



(8X) Aluminum Standoff



(4X) Aluminum Nut



(1X) ESC to Flight Controller 8 Pin to 8 Pin JST SH 1.00mm connector



(1X) ESC to Flight Controller 8 Pin to Free wires (with JST SH crimp) JST SH 1.00mm connector



(1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH 1.00mm connector



(1X) JST SH 8 Pin Plastic Housing



(1X) JST SH 10 Pin Plastic Housing



(2X) 470uF 35V Low ESR Capacitor



(1X) XT60 with 12AWG Silicon Cable for battery connection



(2X) 2.00mm Header Pin for VTX connection



(2X) 2.54mm Header Pin for Receiver connection



(4X) Spare M3 rubber anti vibration for Flight Controller or ESC
