HGLRC FD413 STACK 16x16 3-6S F411 Flight Controller 13A BLS 4in1

¥ 4,580 税込

商品コード:

数量

16mmx16mmサイズのコンパクトなFC!

マイクロ機に最適な13Aの軽量タイプ!

ESCにF4にOSD付きの最新モデル!


コントローラーはClean FlightやBeta Flight等で設定が可能!

小さな機体にお勧めのFCです



※BetaFlightのファームウエアーはSTM32F411になります





Specification:

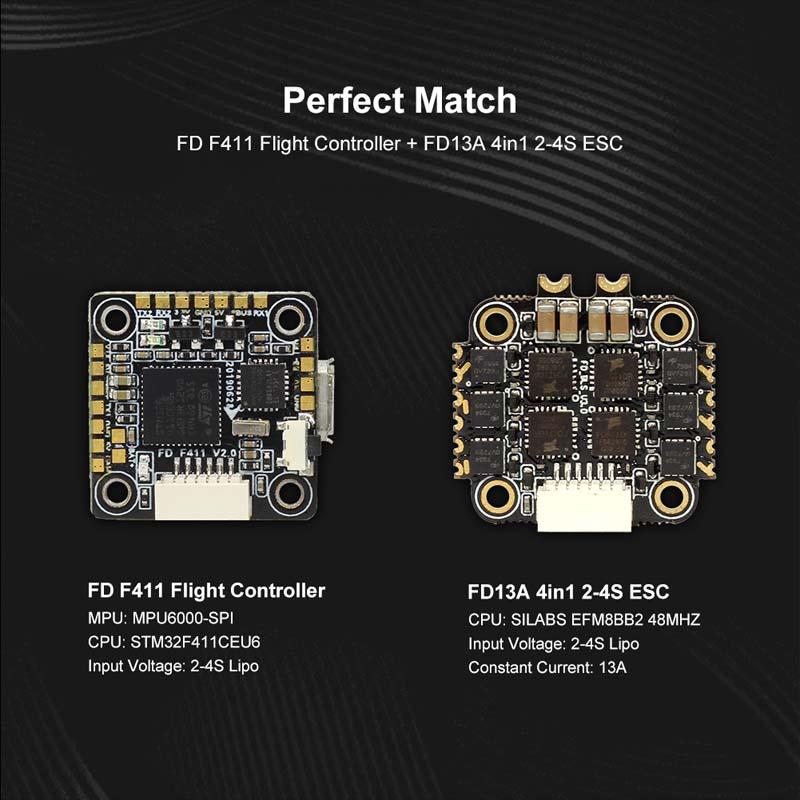

FD411 Flight Controller

Item Name: FD411 Flight Controller

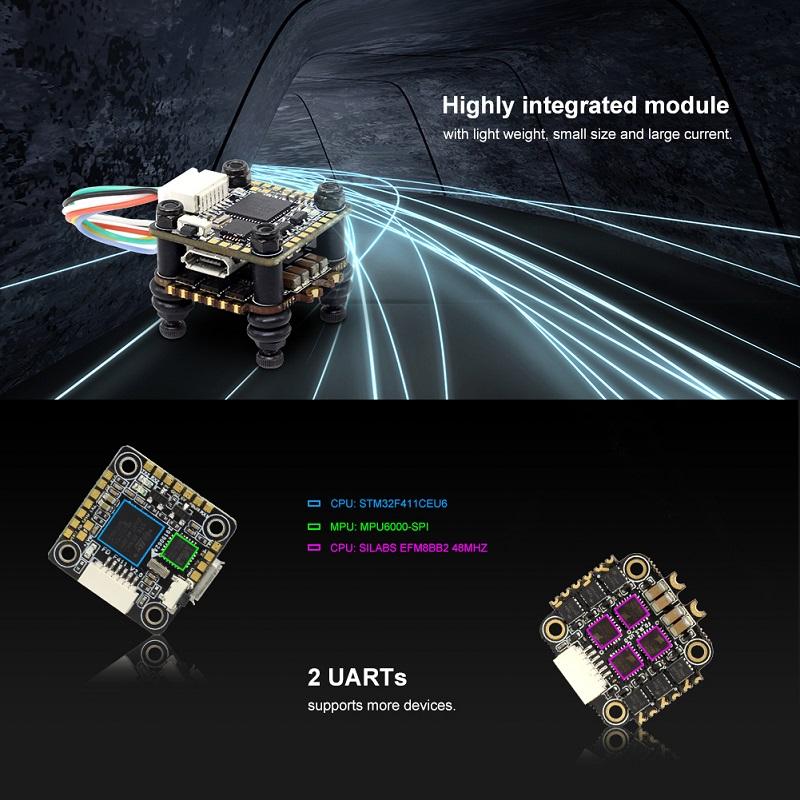

MPU: MPU6000-SPI

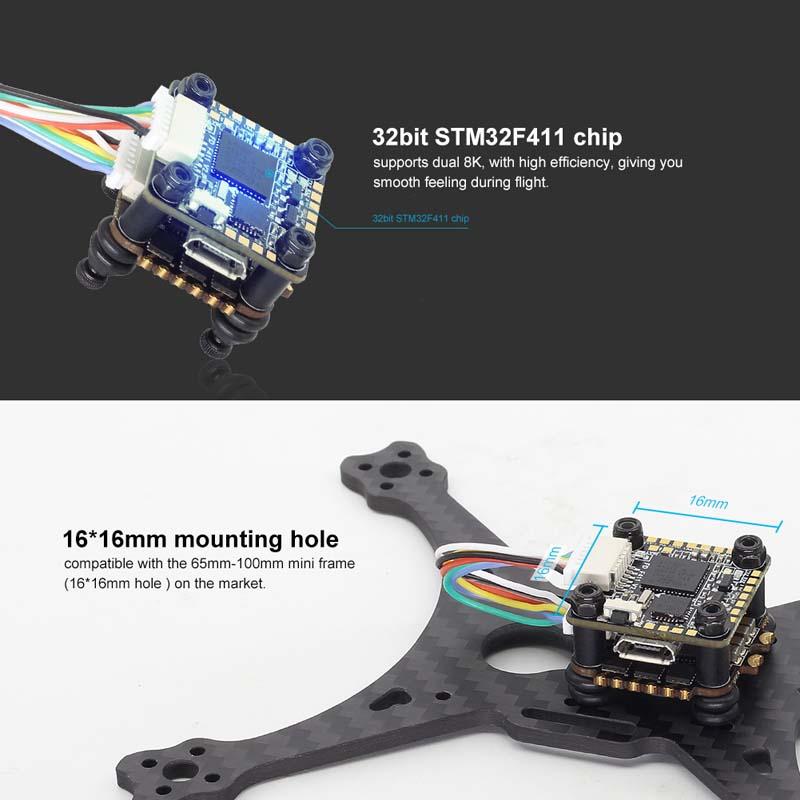

CPU: STM32F411CEU6

Black Box: NO

Input Voltage: 3-6S Lipo

Built-in Betaflight OSD to adjust PID

BEC Output: 5V2A

Size: 21x21mm

Installing Hole: 16x16mm, M2

Weight: 2.7g

Support SBUS / PPM / DSMX / iBUS receiver



FD13A BLS 4in1 ESC

Item Name: FD13A 4in1 3-6S ESC

Input Voltage: 3-6S Lipo

Constant Current: 13A

Peak Current: 15A (5S)

BEC Ouput: NO

Size: 23x24mm

Installing Hole: 16x16mm, M2

Weight: 3.2g

CPU: SILABS EFM8BB2 48MHZ

MOS Tube: TOP QUALITY MOSFET

Support Damped Mode: DSHOT600 / 300/150 / Oneshot125 / 42, MultiShot, PWM



Package Included:

1x FD411 Flight Controller

1x FD13A BLS 4in1 ESC
