HGLRC Sector V3 + GPS 5 inch Racing Drone 6S
¥ 39,800 税込
商品コード:
関連カテゴリ
GPS付きのフリースタイル/レーシング5インチ機!※完成機
ロングレンジ対応
226mm Wheelbaseの軽量で丈夫なドライカーボンフレーム!
HGLRC Sector 5 V3 Freestyle FPV Racing Drone Caddx Ratel Version
Net Weight:442.4g(Weight without receiver)
Sector 5 V3 Freestyle Frame 5 inch
Type:5" frame
Wheelbase:218mm
Support for propellers:up to 5.5 inches
Overall size:172.5 * 136.7mm
Weight:177.9g(contain TPU)
F722 Flight Controller
MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/2A
Weight:7.6g
60A BL32 3-6S 4in1 ESC
CPU:STM32F051
Input Voltage:3-6S Lipo
Steady Current:60A
Peak Current:65A(10 Sec)
Weight:18g
MT VTX 800MW
Output power:PIT/25/100/200/400/800mW
Input:DC 7-28V
Antenna:MMCX
Weight:5.2g
Caddx Ratel FPV Camera
Image Sensor:1/1.8 " 1200TVL CMOS
Lente:2.1mm
Input Power:DC 5V
Dimensions:19mm*19mm*19mm
Net weight:8g

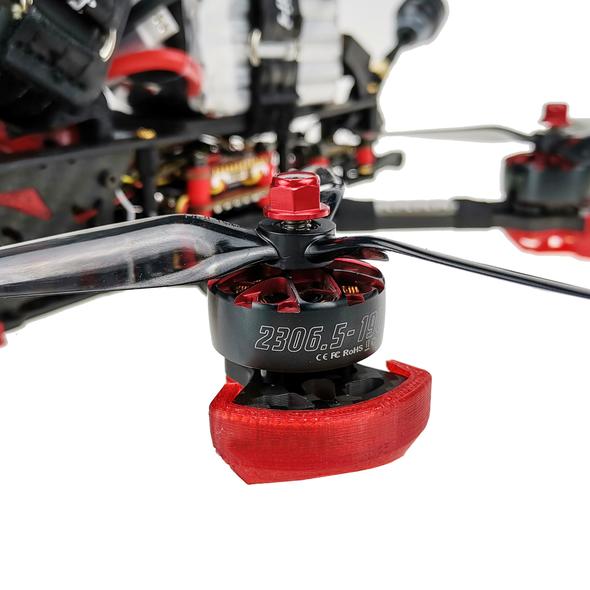

HGLRC 2306.5 Brushless Motor
1900KV (6S) / 2550KV (4S)
No.of Cells(Lipo):16.8 V
Recommended Prop(inch):5Inch
M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g
W554A LED Light board
Motor Valtage:2-6S
LED Voltage:5V
Overcurrent:50A
Size:34.8x7.9mm
Weight:5.2g(4 pcs)
Package Included:
1x F722 Flight Controller
1x 60A BL32 3-6S 4in1 ESC
1x MT VTX 800mW
1x Caddx Ratel FPV Camera
1x Sector 5 V3 Freestyle Frame Kit
4x 2306.5 1900KV Motor
1x M80 GPS
4x W554A LED Light board
8x EthixS5 propeller
1x Hammer Antenna
4x Battery Strap
