Beta FPV F4 Brushed Flight Controller

¥ 4,280 税込

商品コード：

数量

Tiny Whoop用OSD内蔵のF4フライトコントローラー

F411 100MHzのハイパフォーマンスなCPU！

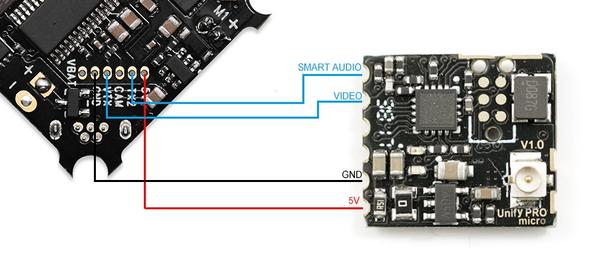

OSDはスマートオーディオポート付



30Aの大容量 MOS FET搭載



本格的なドローンレーサーと同じモード設定できます！

モーターコネクター付きでモーターの交換も簡単です

※受信機は別途必要です



マニュアル



KEY FEATURES




  • The world's first compatible BetaFlight OSD, FrSky Rx, BetaFlight firmware, born for acro flight controller for the Micro Whoop or Blade Inductrix quadcopter.

  • Fully programmable through Betaflight, using the onboard USB port, tune all the parameters, PID's, and rates to your perfect settings

  • Designed to work with current Tiny Whoop or Blade Inductrix setups

  • No receiver integrated. So pilots could connect any receiver, like the TBS crossfire rx etc.

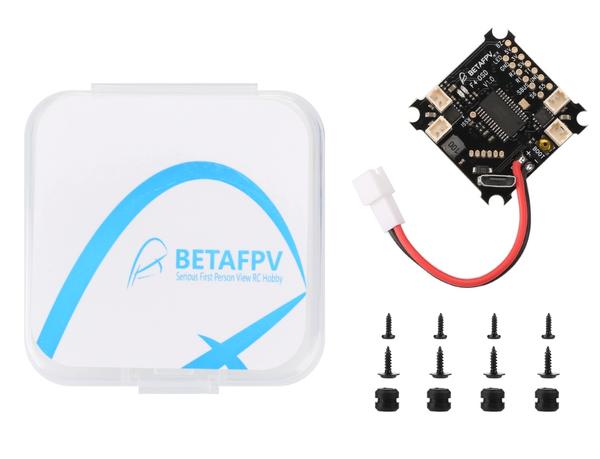

  • The flight controller board comes pre-flashed with Betaflight firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.





SPECIFICATIONS

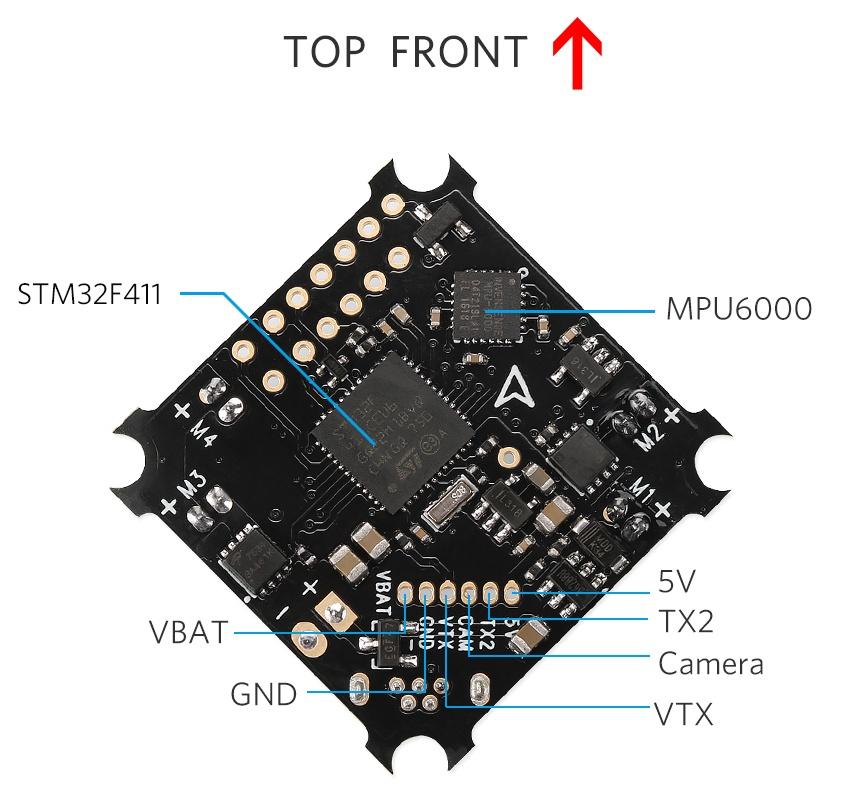

  • CPU: STM32F411CEU6

  • Six-Axis: MPU6000

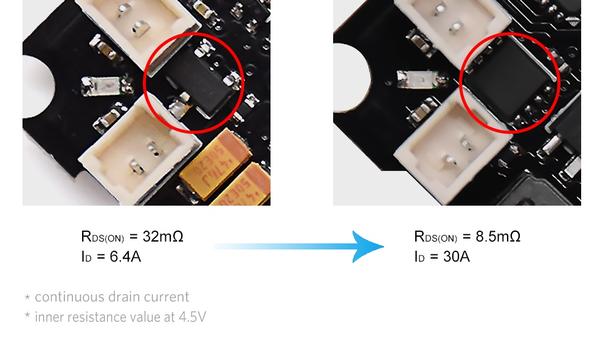

  • ESC: All FETs are rated at 30A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.

  • Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern

  • Firmware version: Betaflight MATEKF411RX 3.4.0

  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

  • Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector

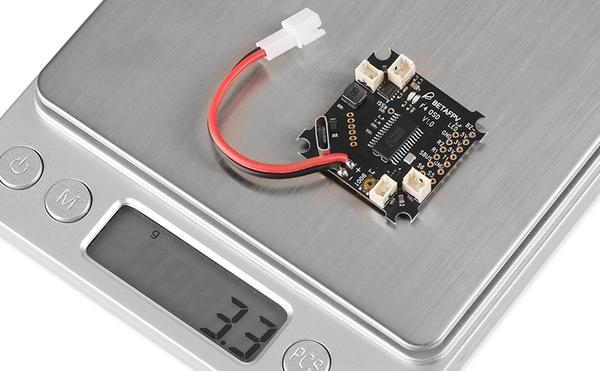

  • Weight: 3.7g
