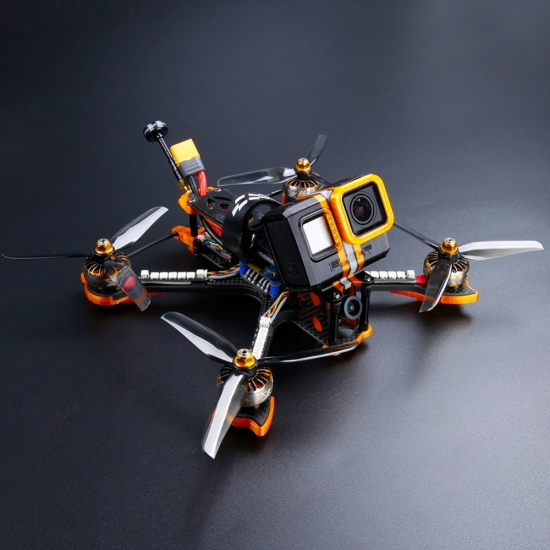

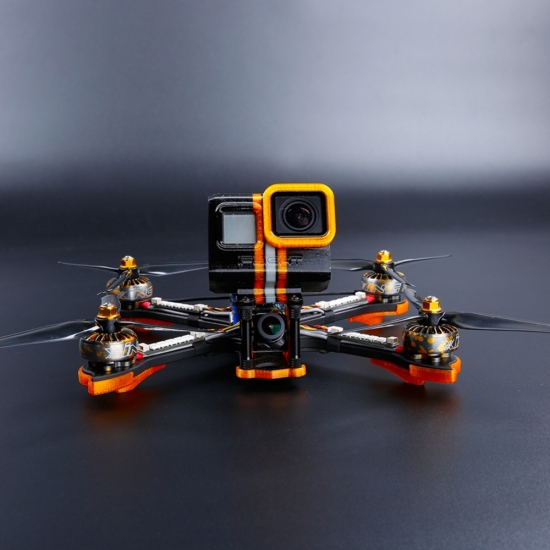

Cidora SL5 FPV Drone 6S - PNP
¥ 34,980 税込
商品コード:
関連カテゴリ
※写真のGoproカメラマウントは別売りです。
Goproなどを搭載できる5インチのアクロ機!
ロングレンジ対応の1000mWのVTXが搭載されていますので、受信距離の長いレシーバーを搭載すれば遠距離フライトが出来ます
アームに搭載のLEDなどで視認性が抜群です
飛ばしやすく素直な操作感で撮影用にも適しています
F7のツインジャイロ搭載でとても安定した機体です
2306-1700kvブラシレスモーター+DSHOT1200の50A ESCなどハイスペック!
丈夫な機体なので初心者~上級者まで楽しめます!※受信機は付属しません
※オプションで受信機を搭載可能です
(搭載フライト調整:受信機代+3000円)
※TBS Crossfireなどを使用すると長距離フライトも可能です
Features:
- Full 3K Carbon Fiber airframe
- Easy arm swaps -215mm wheelbase,115g
- Popular Squish X configuration
- SucceX F7 TwinG Bluetooth with 50A 4in1 ESC stack
Specifications:
- Total Dimensions: 165*138mm (body dimension)
- Frame Wheelbase: 215mm
- SucceXF7 TwinG Bluetooth FC
- SucceX 50A 2-6s 4-in-1 ESC Dshot1200

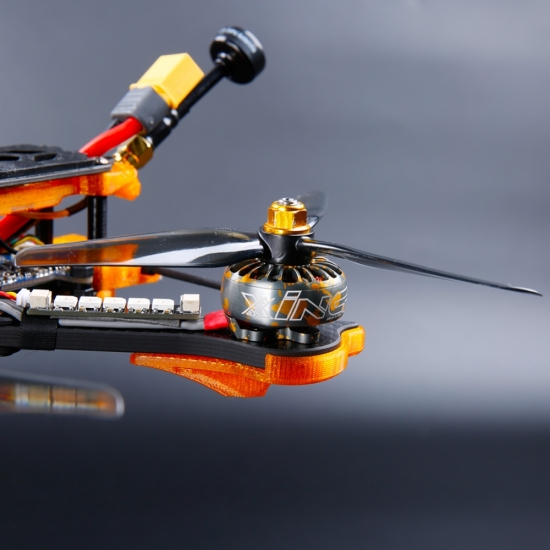

- XING CAMO X2306 1700KV (6S )
- Caddx.us Ratel 2.1mm FPV cam
- Nazgul 5140 propellers
- Weight: 384.2
SucceX F7 TwinG BT Flight Controller(TwinICM20689)
- MCU:216MHz STM32F722RET6
- Gyro: 2x ICM20689(SPI)
- Baro: Yes (Altitude on your OSD)
- Betaflight OSD:YES
- Bluetooth wireless adapter (Antenna integrated, can be linked to the SpeedyBee smartphone app)
- Blackbox: Onboard 32MB
- 5x Uarts
- 8x Motor outputs
- 8-pin 4in1 ESC port
- 4-pin VTX connector
Betaflight
-Betaflight Firmware:betaflight_4.0.5_STM32F7X2.hex
-CLI dump file:IFLIGHTF7_TWIN_G.config
SucceX 50A 2-6S 4-in-1 ESC Dshot1200
- Dimension: 43*39mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Volts input: 2-6S
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: Yes
-Telemetry:Supported
- BEC: No
- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
- Target: iFlight-BL32-4IN1
- BLHeliSuite download (BL32):http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
5.8G 1000mW VTX
- Tramp telemetry with OSD/Lua script frequency and output power control
- Stable power transmission, ideal for long range flights
- Power settings 25mW/200mW/400mW/800mW/1000mW;
- 48 Channels including Raceband
- Frequency fast lock, soft start to reduce interference with other pilots
- Built-in output power self-check function;
- Full format video format: NTSC /PAL;
- Wide input voltage range. low power consumption:
- 7V~28V,+12V/500mA@1000mW;
- Small size: 36mm×36mm×8mm;
- Mounting holes 4-M3
- Lightweight: ≤11g(excluding antenna)
Recommend batteries (not included):
4S 1300mAh to 2000mAh
Package Included:
-1x Cidora SL5 4S 6S FPV Drone - BNF
-2x sets Nazgul 5140 propellers
-1x LED Lights
