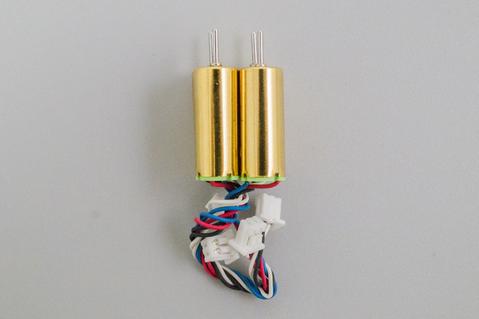

New Bee Drone BDR GOLD Edition - 6mm Brushed Motor (2CW+2CCW)

¥ 2,100 税込

商品コード：

数量

Tiny Whoop用19700kvの超高回転ハイパワーブラシモーターセット！





※6ｍｍ



※CW2個/CCW2個



Specification



 Gold Edition Motors




  • KV: 19,700

  • Speed: 73,000 RPM (@ 3.7V)

  • Current Load: 1.0A (@ 3.7V, direct drive)

  • Lifetime Rating: 5-6 hours

  • No Load Current: 150 mA

  • Start Torque: 20 g.cm

  • Stall Current: 4100 mA

  • Terminal Resistance: 0.9 Ohms

  • Operating Voltage: 0.5 - 4.35 V



Dimensions:




  • Can Diameter: 6mm

  • Can Length: 15mm

  • Shaft Diameter: 0.8mm

  • Shaft Length: 5mm

  • Weight: 1.85g

  • Wire Length: 46mm

  • Plug: Micro-JST-1.25



Package Includes:




  • 4 GOLD Edition BDR motors (2 CW, 2 CCW)
