¥ 3,260 税込

商品コード：

FCを介してプロポでチャンネル操作ができるスマートオーディオ機能付き！”

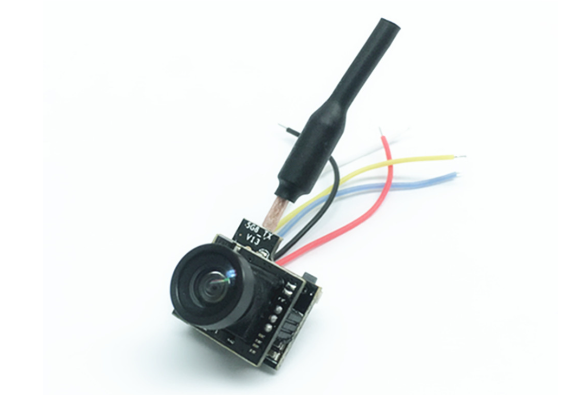

700TVLの高画質、OSD対応のオールインワンカメラVTXです！

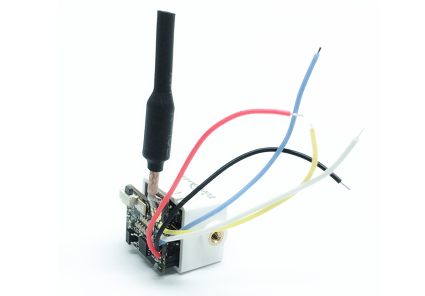

カメラ固定用カバー付き

OSD付きのFCに装着可能

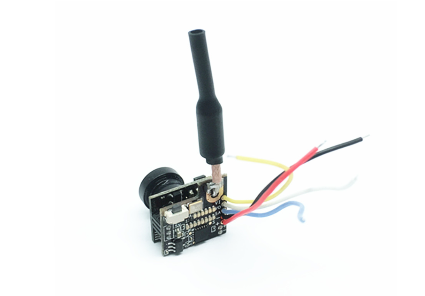

壊れにくいホイップアンテナで3.7gの軽量コンパクト！

カバーを外せば『RKH TPU Micro FPV Camera Mount-10 Degrees』に使用できます。

Specification:



Output Power:25mw

Supply Voltage:2.9-5.5v

Frequency Band:5362-5945 Mhz

Channel Customer:48

Channel Sel:Touch Switch

Input Format:Ntsc/Pal

Camera Resolution:700tvl

Lens Angel:h:120°/v:100°

Operating Temperature:-10℃~+60℃

Pcb Profile Dimension:14.5mmx12mm+15mmx15.6mm

Miniature And Light Weight Design: 3g

Total Weight: 4.2g



Features:



Compatible With Smartaudio v1 Protocol.

Mounting Bracket Hole Position:Standard m2 Screw Hole Position.



Package Included:



1 x 5.8g 48ch Fpv Camera & Transmitter

1 x English Manual

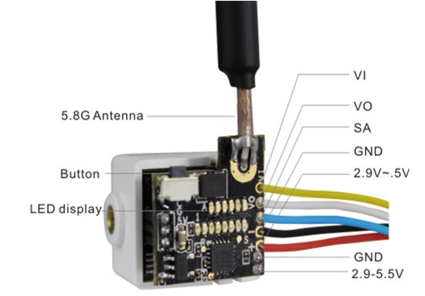

Instructions:



1.Red And Blue Two Rows Lights Different Colors Blinking Combinations Will Move Position Of Thefrequency;

2.With Blue Led Lights Abcdef Expressed As a Frequency Group, With a Red Led Light 12345678 Shows As The Channel;

3.Frequency Selection:Long Press The Button For 2 Seconds To Enter The Frequency Group Settings,

   Press The Button To Change The Frequency Group From a To f, Select The Appropriate Options You Want Then Long Press

   The Button To Exit Frequency Group Settings;

4.Change Channels-Short Pressing The Button, Will Changes The Channel To 1 Through 8, Select The Appropriate Option

   To Complete the Frequency   Selection.
