BETA FPV Lite 2S Brushless Flight Controller (Silverware Firmware) Frsky D8

¥ 3,900 税込

商品コード：

数量

Silverwear搭載の2セルTiny用ブラシレスFC！

Frsky D8 受信機内蔵！



Tiny Whoop用オールインワンブラシレスフライトコントローラー！



Software:

Add Butterworth Filter on the accelerometer data, solve the issue of drift in level mode.

Solve the issue of vibration and overheat on 110x motors

Solve the issue of statics and flash on the OSD information

Hardware:



Since to use orange color on the FC with Silverware firmware.

Built-in physical current sensor.

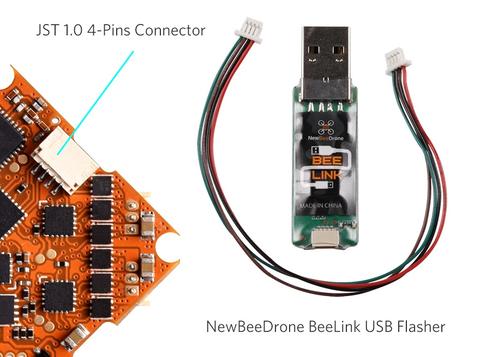

Added the JST SH 1.0 4-pins programming port for the flight controller.

Built-in Frsky D8 native receiver for option.



【おすすめPOINTS】

The first 2S Brushless FC board with Silverware firmware in the current market, can totally support 2S brushless motor. This must be the most simple and affordable method to try whoop FPV racing hobby.

Supports Acromode, Levelmode, Racemode_Angle, Racemode_Horizon, Horizonmode and Turtle mode. Also it has the ability to change settings for custom builds or or to adapt to personal preferences by OSD menu.

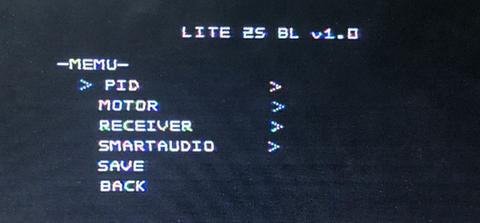

Bulid-in OSD, allows you to select viewing options, such as voltage of battery, flight time, flight mode and setting menu. Includes OSD menu, supports PID tuning, motor rotation changing and channel mapping of AETR/TAER switching via OSD menu.

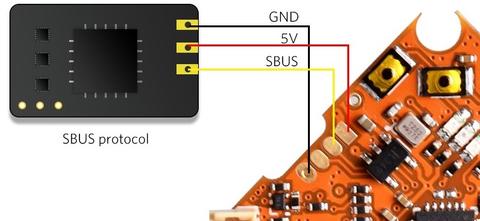

Convenient operation for switching receiver communication protocol: SBUS / DSMX, since you can switch it directly by button.

The flight controller board comes pre-flashed with Silverware firmware, and pre-soldered 55mm power cable pigtail withXT30 cable.



【FC仕様】

CPU: STM32F042G6U6 (Frsky version) / STM32F031F6P6 (Bayang version)

Six-Axis: MPU6050

Size: 26mm x 26mm, whoop mounting pattern

Firmware version: BETAFPV LiteSilverware firmware

OSD: BETAFPV LiteOSD

Build-in receiver: Frsky D8 RX (SBUS protocol) / SPI Bayang

Supported external receiver: SBUS / DSMX protocol

Power Cable: 55mm, with XT30 cable

Weight: 5.39g with XT30 cable



【ESC仕様】

Built-in BB21 ESC with 5A coutinuous and peak 6A current

Input voltage: 2S lipo

Support BLHeliSuite programmable

Motor Connectors: 1.25mm header pins connector

Factory firmware:S_H_50_REV16_7.HEX

Signal Support:D-shot150, D-shot300, D-shot600(Default), Oneshot125

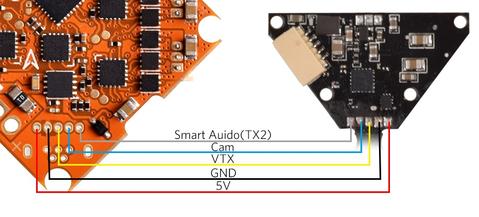

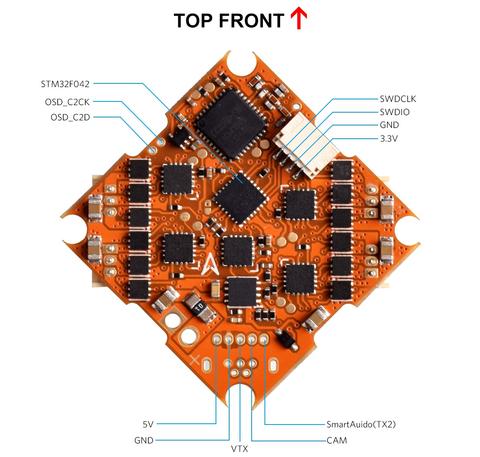

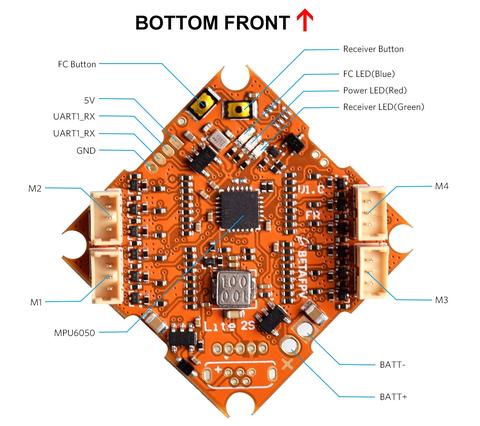

DIAGRAM FOR LITE 2S BRUSHLESS FC (Frsky)
