Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens FPV Camera（4:3）
¥ 2,980 税込
商品コード：
関連カテゴリ
高解像度1200TVLの1/3” CMOSセンサー内蔵マイクロカメラ！
マイクロ機に最適な高性能！超小型カメラ+5.8G VTX！
2.9～5.5Vまで対応！
5.8G 48ch 25mWでTBSスマートオーディオ対応
OSD上でch変更が可能です
※4：3
※2.1mmワイドレンズ
※PAL
Specifications of Camera:
Brand Name: Caddx
Item Name: Firefly
Color: Black
Lens: 2.1mm
Image Sensor: 1/3" CMOS Sensor

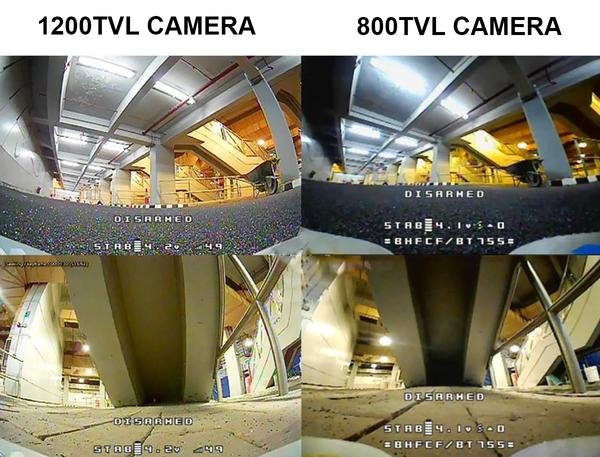

Horizontal Resolution: 1200 TVL
TV System: PAL
Image: 4:3
Synchronization: Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 2 DNR

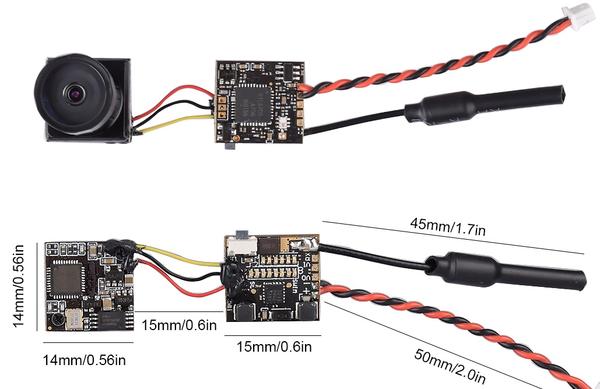

Dimensions: 14mm*14mm*16mm
Wide Power Input: DC 3.3-9V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%

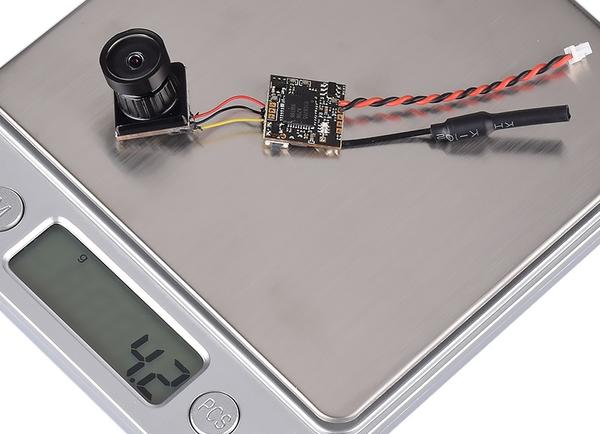

Weight: 4.1g (Camera + VTX)
Specifications of VTX:
Feature: TBS SMART OSD
Frequency Band: 5362~5945MHz
Channel Customer: 48
Modulation Type: FM
Channel SEL.: Touch Switch
Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
Transmit Power: 13±1dBm
Frequency Control: PLL
All Harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: 1dB
Antenna Port: 50 Ω
Power Consumption: 140±20MA@5V DCIN
Supply Voltage: 2.9-5.5V
Operating Temperature: -10℃~+60℃
Profile Dimension: 15mmx14mm
English Manual, Click Here
