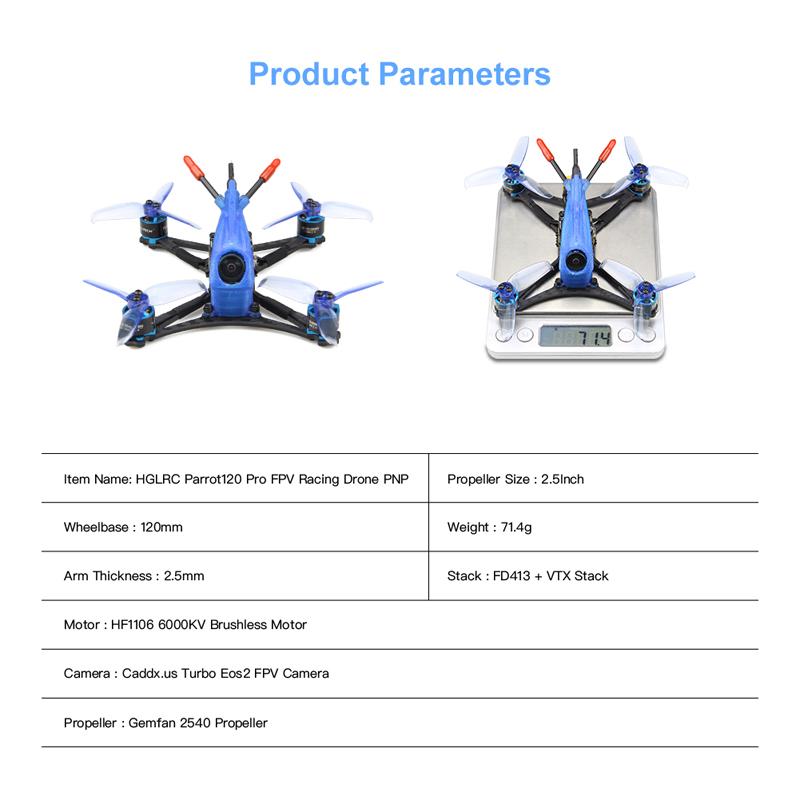

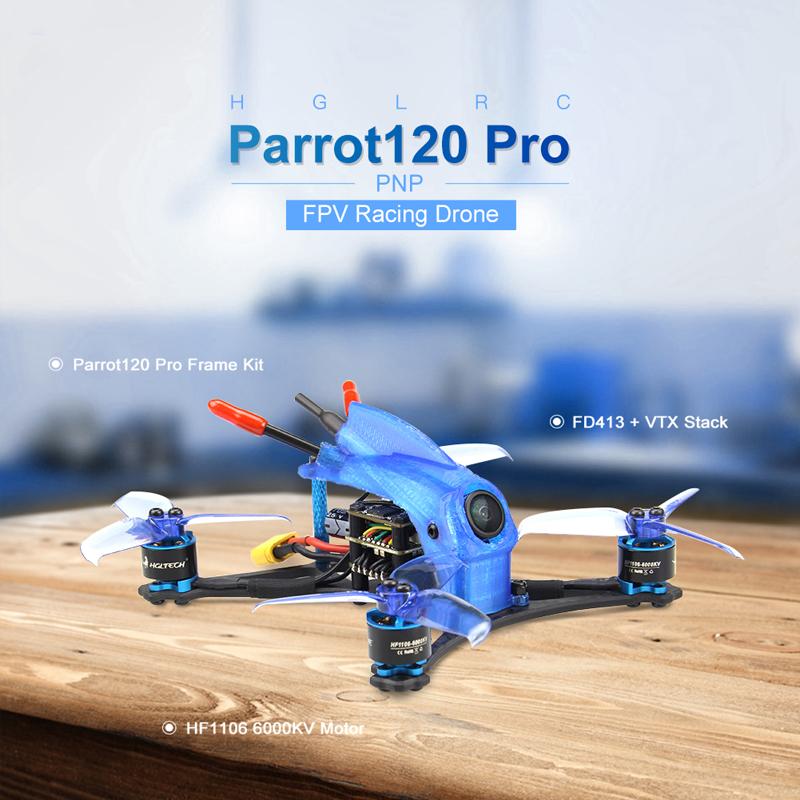

HGLRC Toothpick Parrot120 Pro micro 2-3S FPV Racing Drone
¥ 14,900 税込
商品コード：
関連カテゴリ
U199のToothpickレーシングドローン！
飛ばしやすいストレッチタイプの120mmサイズ！
2.5インチ+1106ブラシレスモーターで軽量でパワフルな機体です
新型の16mmx16mmサイズのFCタワーでとてもコンパクト！
U199のレースにも使用できるスペックです
VTXは400mWまで出力可能！
2.5mm厚のカーボンアームを採用した丈夫な構造！
※受信機は付属しておりません
※受信機の取り付けおよびフライト調整も可能です
（受信機代+3000円）

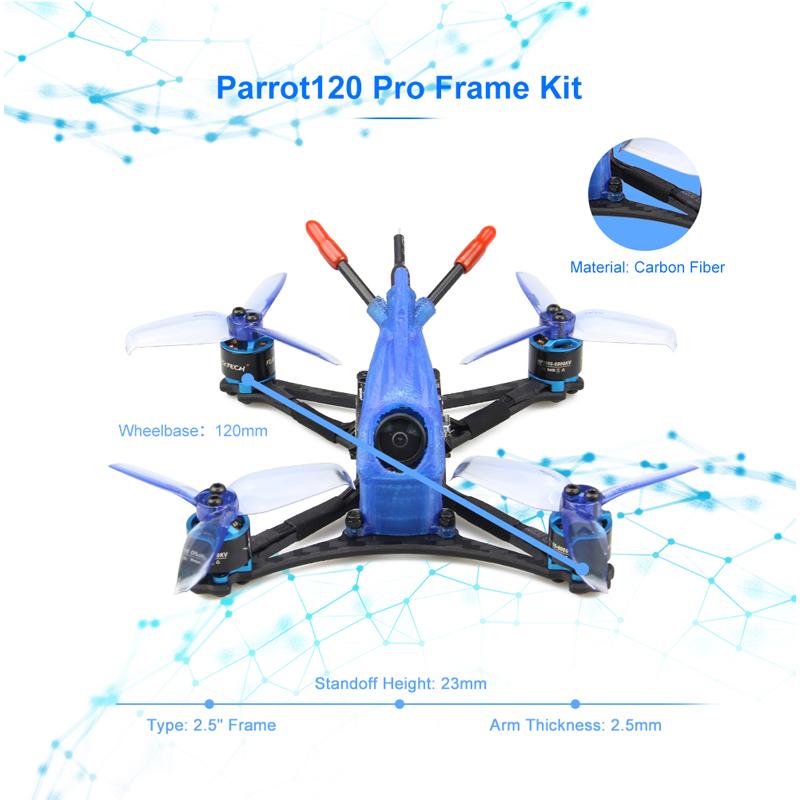

HGLRC Parrot120 Pro Frame Kit
Material: Carbon Fiber
Wheelbase：120mm
Type: 2.5" Frame
Arm Thickness: 2.5mm
Standoff Height: 23mm
Flight control installation holes: 16*16mm
Support camera: 14X14mm
Weight: 15g

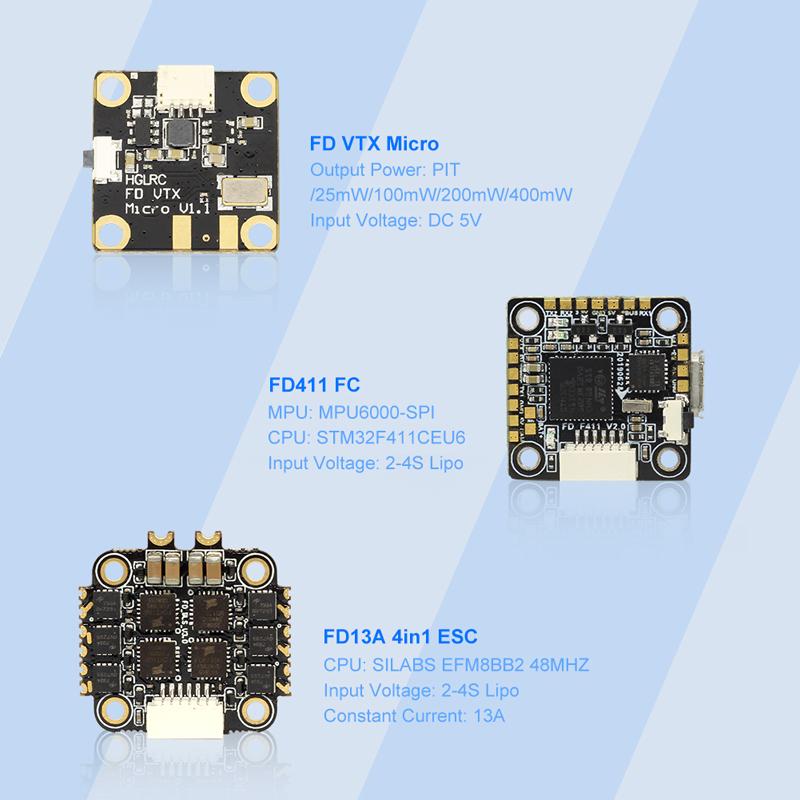

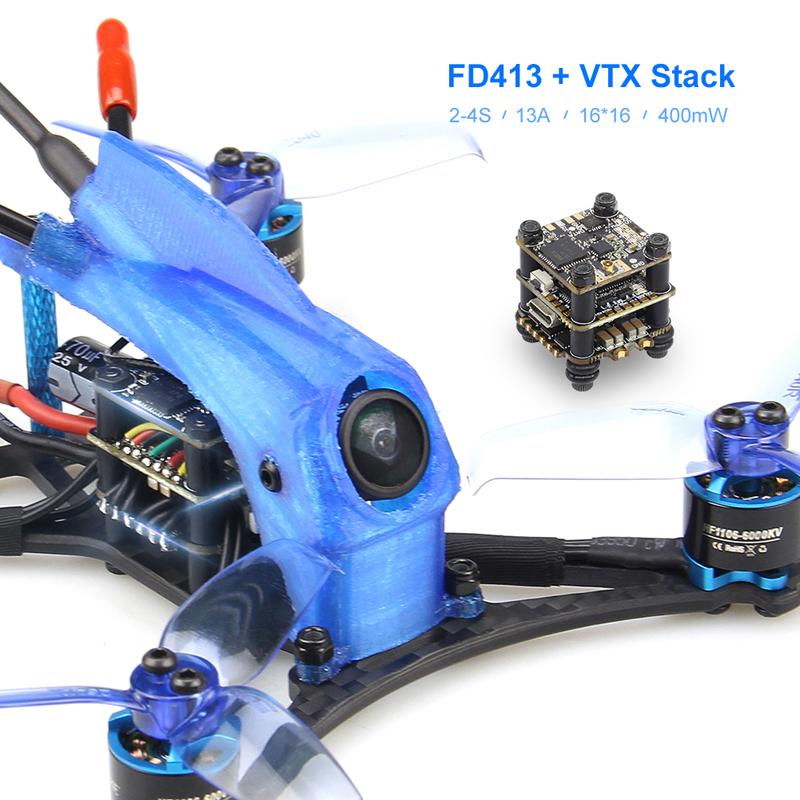

HGLRC FD411 Flight Controller
Item Name:FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 21x21mm
Installing Hole: 16x16mm, M2
Support SBUS/PPM/DSMX/iBUS receiver
Weight:2.7g
HGLRC FD13A 4in1 BLS 2-4S ESC
Item Name: FD13A 4in1 2-4S ESC
Input Voltage: 2-4S Lipo
Constant Current: 13A
Peak Current: 15A（5S）
BEC Ouput: NO
Size: 23x24mm
Installing Hole: 16x16mm, M2
Weight: 3.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode：DSHOT600/300/150/Oneshot125/42,MultiShot,PWM
HGLRC FD VTX Micro 400mW
Item Name: FD VTX Micro
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Input Voltage: DC 5V
PIT---------0dBm------70mA
25mW-----14dBm-----150mA
100mW----20dBm-----210mA
200mW----23dBm-----280mA
400mW----26dBm-----360mA
Installing Hole: 16x16mm, M2
Size: 20x20mm
Antenna: IPEX
Weight: 1.5g
Caddx.us Turbo Eos2 FPV Camera
Item Name:Turbo EOS2
Image Sensor:1/3" CMOS
Horizontal Resolution:1200 TVL
TV System:NTSC / PAL option
IMAGE:16:9
Synchronization:Internal
Electronic Shutter:PAL: 1/50-100,000
NTSC: 1/60-100,000
S/N Ratio: >52dB (AGC OFF)
Video Output:CVBS
Lens:2.1mm
Auto Gain Control：YES
BLC: YES
WDR:Global WDR
DNR:2 DNR
Dimensions:14mm"14mm*16mm
Input Power:DC 3.3-6V
Working Temperatur:-20℃~+60℃
Work Humidity:20%~80%
Net weight:3.5g

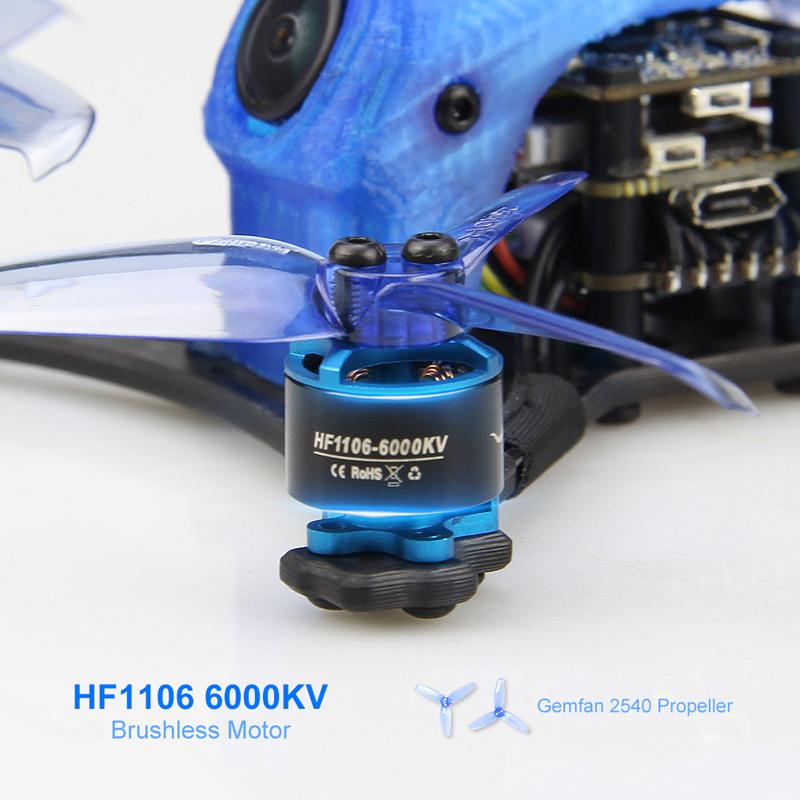

HGLRC HF1106 6000KV Brushless Motor
Item name: HF1106 6000KV Brushless Motor
Motor:KV 6000KV
Stator Diameter:11mm
Stator Thickness:6mm
No.of Stator Arms:9S
No.of Rotor poles:12P
Motor Resistance:120mΩ
Max Continuous Current:15.27A
No.of Cells(Lipo):2-3S
ESC:15A
Recommended Prop(inch):2.5 Inch
Wire type:28AWG x 80mm
Weight:6g
Gemfan 2540 2.5Inch 3-Blade Propeller
Quantity: 3 CW & 3 CCW

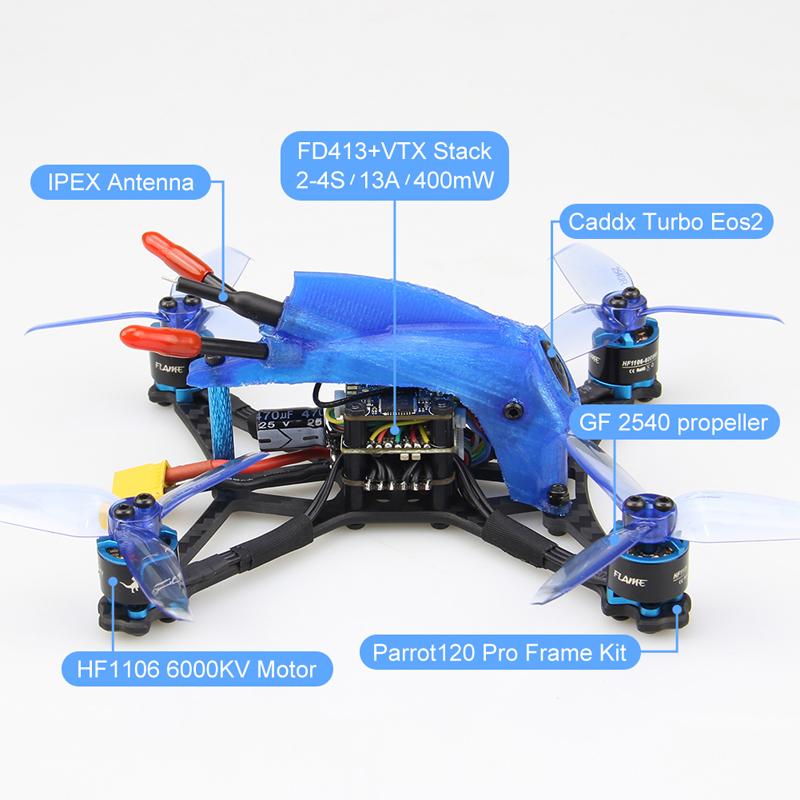

Package Included:
1x FD411 Flight Controller
1x FD13A 4in1 BLS ESC
1x FD VTX Micro
4x HF1106 6000KV Brushless Motor
1x Parrot120 Pro Frame Kit
1x Caddx.us Turbo Eos2 FPV Camera
6x Gemfan 2540 propeller
1x IPEX Antenna
