Beta FPV F4 Brushed Flight Controller(SFHSS Rx + OSD)

通常価格:¥ 5,480 税込

¥ 4,650 税込

商品コード:

数量

Tiny Whoop用OSD+フタバSFHSS受信機内蔵のF4フライトコントローラー!

F411 100MHzのハイパフォーマンスなCPU!

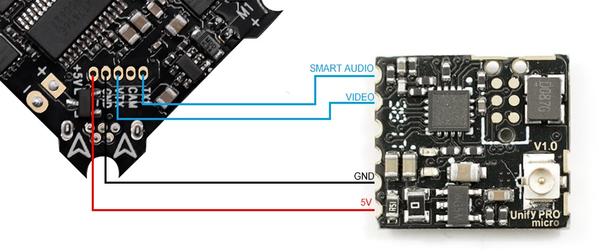

OSDはスマートオーディオポート付

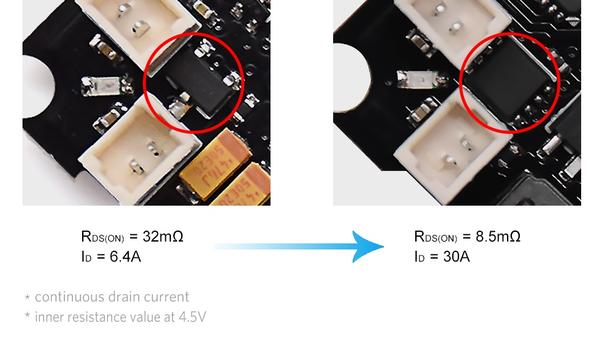

30Aの大容量 MOS FET搭載



本格的なドローンレーサーと同じモード設定できます!

モーターコネクター付きでモーターの交換も簡単です

※受信機はフタバSFHSS専用となります



マニュアル



KEY FEATURES








  • The world's first compatible BetaFlight OSD, Futaba SFHSS Rx, BetaFlight firmware, born for acro flight controller for the Micro Whoop or Blade Inductrix quadcopter.

  • Fully programmable through Betaflight, using the onboard USB port, tune all the parameters, PID's, and rates to your perfect settings

  • Designed to work with current Tiny Whoop or Blade Inductrix setups

  • Built in SPI S-bus protocol native receiver, compatible with almost Futaba SFHSS radios

  • The flight controller board comes pre-flashed with Betaflight firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

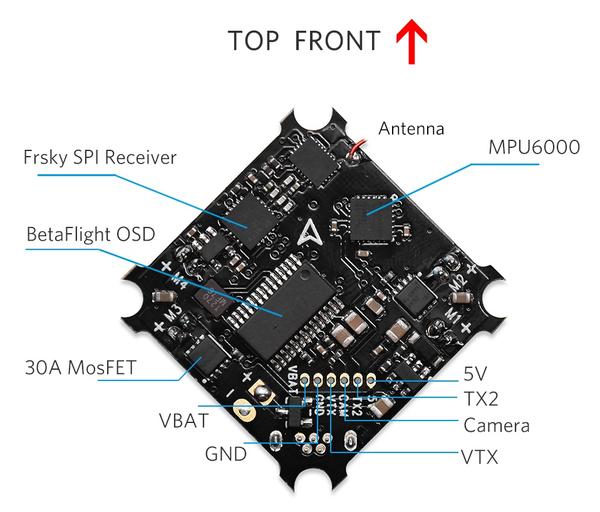

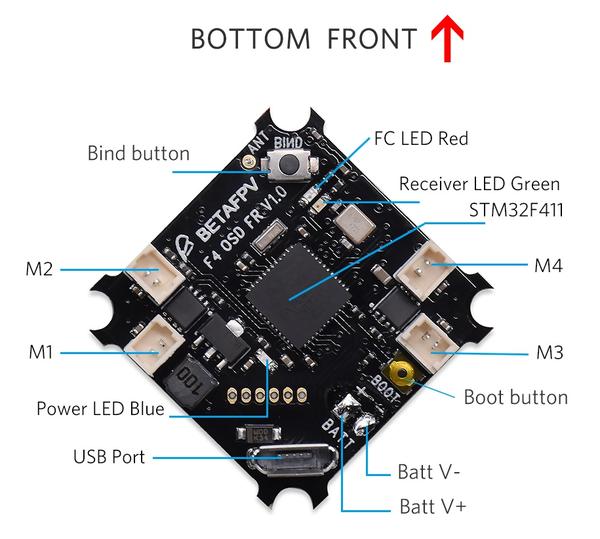

SPECIFICATIONS








  • CPU: STM32F411CEU6

  • Six-Axis: MPU6000

  • ESC: All FETs are rated at 30A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.

  • Size: 26mm x 26mm,fully compatible with the Inductrix quad frame and mounting pattern

  • Firmware version: Betaflight MATEKF411RX 3.4.0

  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

  • Receiver: SPI Frsky D8 protocol (AKA FRSKY_D on Betaflight Configuration)

  • Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector

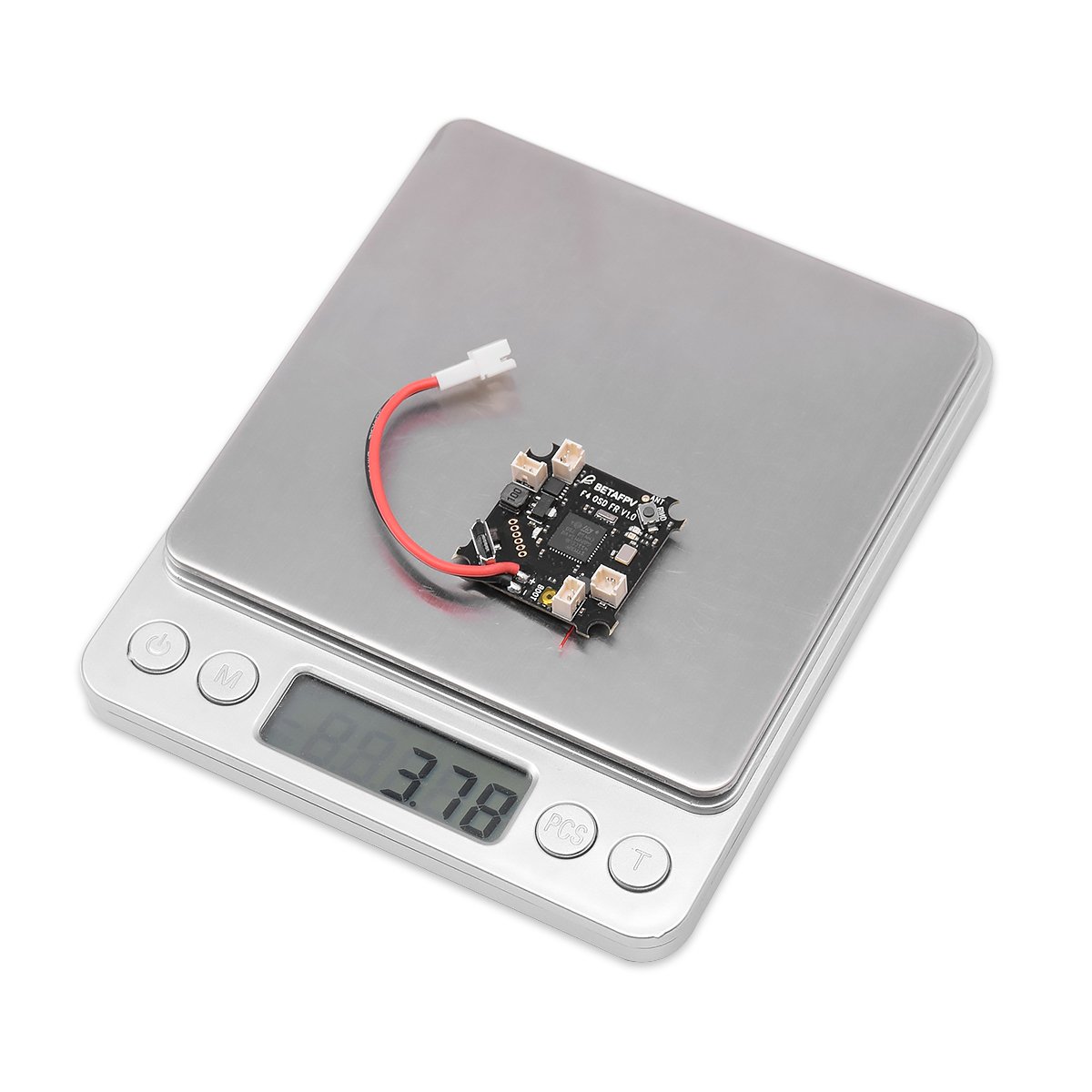

  • Weight: 3.7g
