RKH Delrin Carbon 66mm Brushless Whoop FPV BNF-DSM2/X

¥ 21,510 税込



Spektrum DSM2/Xの受信機付きでバインドすればすぐに飛ばせます!
FCはFurious Racewhoop、ESCはRacestar 4A 4 in 1


1. Description:
- RKH 66mm Brushless Whoop is a Smallest Ducted Brushless Motor Kit.
- Assembled and tested with the Bind-N-Fly® completion level is compatible with SPEKTRUM, JR, WALKERA DSM2 Transmitter.
- Main Size: 66mm Frame, 31mm Propeller Duct, 1.0mm Thick Carbon Frame.
- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.
- Battery Connector: JST-PH-2.0 and included a spare connector for Eflite's (Blade) Battery.
- Flight time: 2.5-3 minutes with 205mAh Battery.
- Weight (without Battery): 24.89(g) = 0.88(oz).

2. Package Included:
1 x Rakonheli CNC Delrin and Carbon 66mm Brushless Whoop Kit (SKU: 66BLW981)
1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
1 x 0.8g 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter (SKU:R0.8DSM2X)
1 x Racerstar 4A 1S Blheli_S 4 In 1 Brushless ESC (SKU: Star4-4A)
4 x Racerstar BR0703 12000KV 1-2S Racing Brushless Motor (1.0mm Shaft) (SKU: BR0703-12000KV)

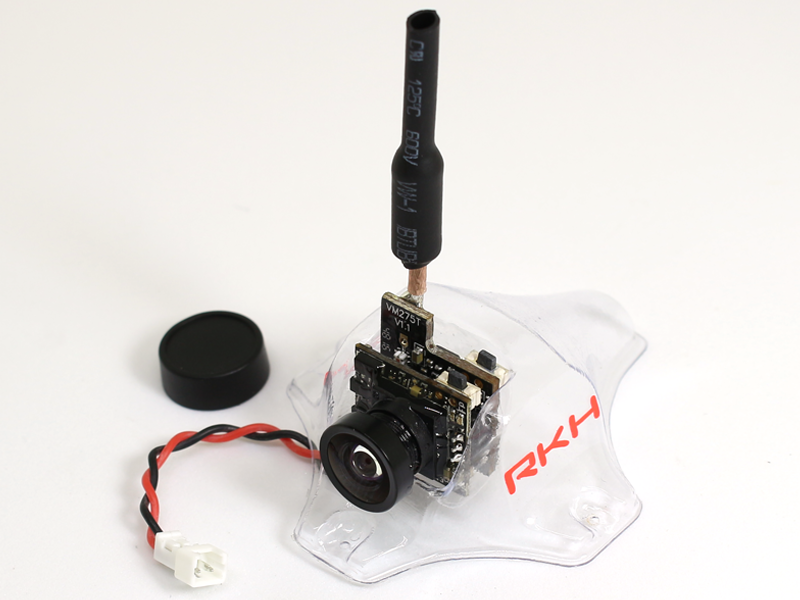

1 x FuriousFPV 5.8G 25mW VTX600TVL FPV Camera (SKU: FPV-0198-S)
1 x Clear Canopy (SKU: C02-H01)
2CW+2CCW Rakonheli 31mm 3 Blade Transparent Propeller (1.0mm Shaft) (Red) (SKU: 3PROP3110-TR).

3. Needed To Complete:
- 6+ Channel DSMX®/DSM2® Transmitter
- FPV Monitor or Headset
- Battery: 1S 205mAh or 1S HV 255mAh
- Suitable Charger

1. BetaFlightもしくはCleanFlightでPCと接続しCLIに入る
2. set spektrum_sat_bind=9 と入力しエンターを押す
3. save と入力してエンターを押す
4. USBを取り外し、バッテリーをつなぐ
5. 受信機のLEDが素早く点滅し、バインドモードに入る
6. 送信機のバインドボタンを押し電源を入れる
7. LEDが点灯するとバインド完了
