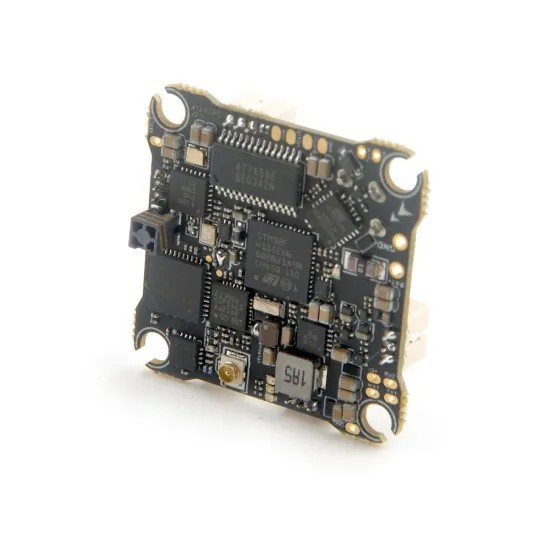

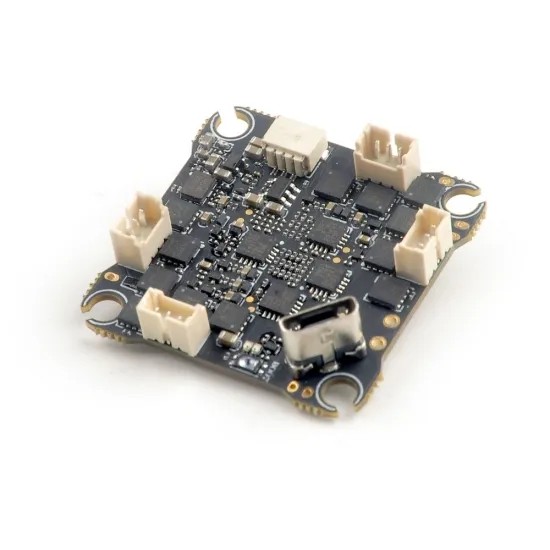

HappyModel X12 1-2S AIO 5-IN-1 Flight Controller (ELRS or FRSKY/SFHSS)
¥ 10,400 税込
商品コード：
関連カテゴリ
The world first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently.
It comes with onboard SPI ELRS receiver which support ELRS TX module 2.x firmware, and also provide other receiver option like SPI Frsky receiver which support Frsky D8/D16 , REDPINE and SFHSS.
This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
Specifications:
Brand Name: Happymodel
Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX

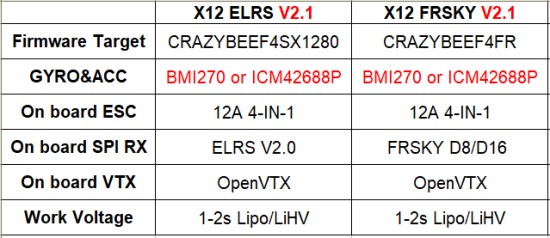

Betaflight firmware target:
ELRS Version: CRAZYBEEF4SX1280
FRSKY / SFHSS Version:CRAZYBEEF4FR
VTX antenna: U.FL
Weight: 5.1g
Support 1-2S Lipo/LIHV battery
Size: 30mm*30mm*8mm
Flight controller:

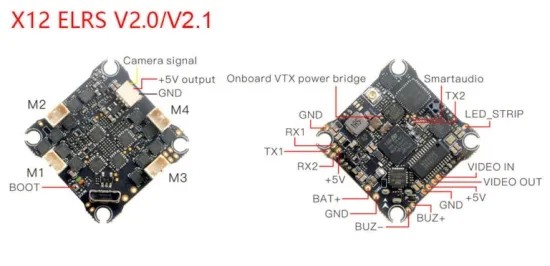

X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280

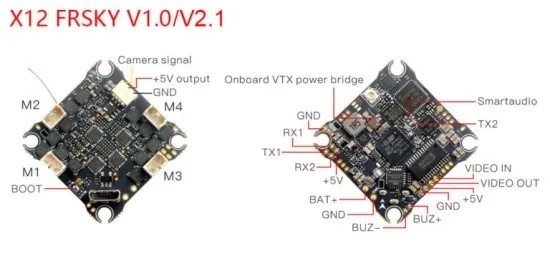

X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC:
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver:
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version:
SPI BUS receiver
CC2500 RF
Compatible Non EU transmitter D8 model Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Support Frsky D8/ D16 , Redpine , SFHSS
Onboard 5.8g OPENVTX:
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL
セット内容：
1x X12 HappyModel X12 AIO 5-IN-1 Flight Controller (ELRS V2.1 or X12 FRSKY/SFHSS V2.1 )
1x 5.8G Antenne
1x XT30 Battery Cable
1x PH2.0 Battery Cable
1x Signal cable - for camera
1 set Rubber-Dumper & Screws
VTX系統図が付属します。
