¥ 2,980 税込

商品コード：

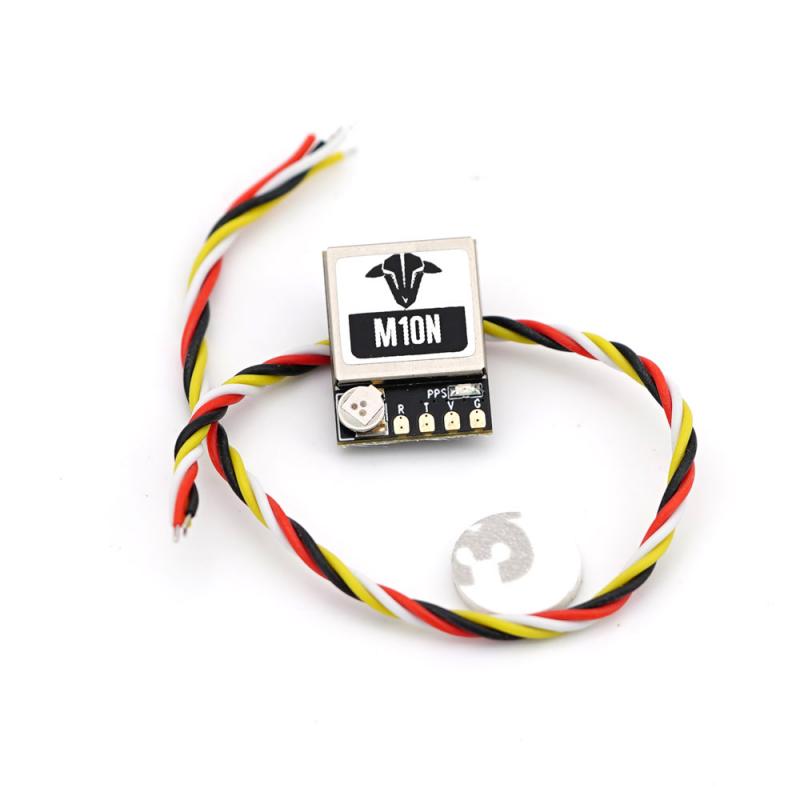

マイクロ機やWhoop機に最適なサイズ（16.5 × 12.3 × 6.0 mm）！

高精度なublox UBX-M10050チップ搭載！

超小型のマイクロGPSです！

設定次第ではホームリターンが可能になります

またOSD上では位置情報などを表示することが出来ます

Specification:

Electrical Characteristics

Chip: M10050

Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN)

Default Position System: GPS, BDS, GALILEO

Augmentation System: SBAS, QZSS

Channel: N/A

Sensitivity

Tracking & Navigation: -166 dBm

Reacquisition: -160 dBm

Cold Start: -148 dBm

Hot Start: -160 dBm

Accuracy

Horizontal Position: 2.0 m CEP

Velocity: 0.05 m/s

Dynamic Heading: 0.3°

Time Pulse: RMS 30 ns / 99% within 60 ns

Acquisition

Cold Start: 27 s

Hot Start: 1 s

Aided Start: 1 s

Data Output

Baud Rate: 4800 – 921600 bps (default: 115200 bps)

Signal Level: TTL

Protocols: NMEA, UBX

UBX Messages: PVT

NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL

Update Rate: 0.25 Hz – 18 Hz (default: 10 Hz)

FLASH Memory: Retains configuration after power loss

Operational Limits

Altitude: 80,000 m

Velocity: 500 m/s

Dynamics: < 4 g

Power

Input Voltage: 3.6V – 5.5V (typical: 5.0V)

Power Consumption: 15 mA @ 5.0V

Physical

Dimensions: 16.5 × 12.3 × 6.0 mm

Weight: 3 g

Connector: 1.00 mm 4-pin connector

Temperature

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +105°C

LED Indicator

PPS LED: Off when no fix; flashes blue after 3D positioning, the blue light flashes
