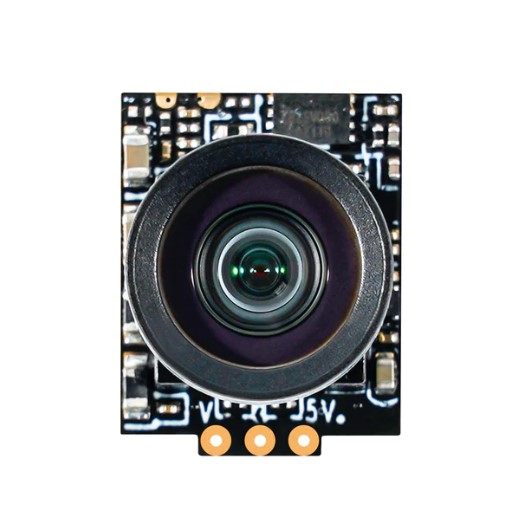

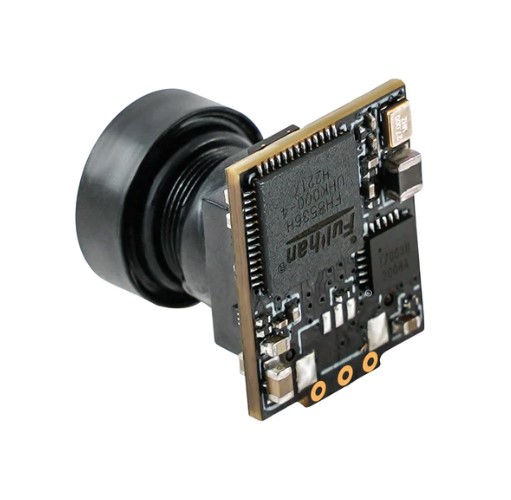

BETAFPV C03 FPV Micro Camera with Canopy

¥ 3,450 税込

商品コード：

数量

C03カメラ+キャノピーです！

BETA FPVのFCにボルトオンで装着可能



Specification

Item: C03 FPV Micro Camera

Image Sensor: 1/3" CMOS Sensor

Horizontal: 1200TVL with Global WDR

Signal System: NTSC (4:3)

Lens : 2.1mm(M7) FOV 160°

S/N Ratio: >50db

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 100mA@5V / 120mA@3.3V

Housing Material: ABS

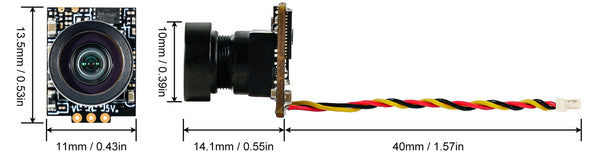

Dimension: 11*14.1*13.5mm

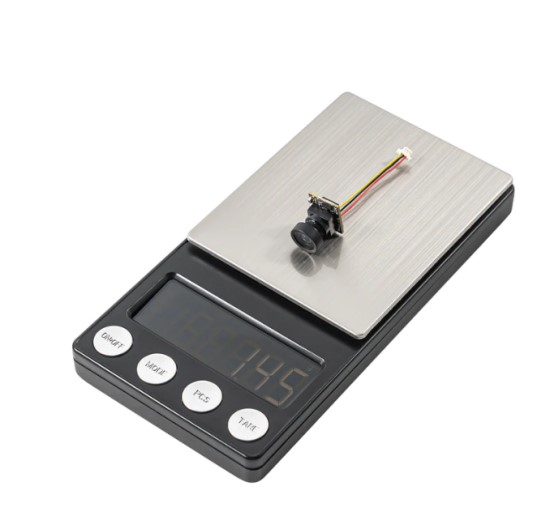

Net weight: 1.52g

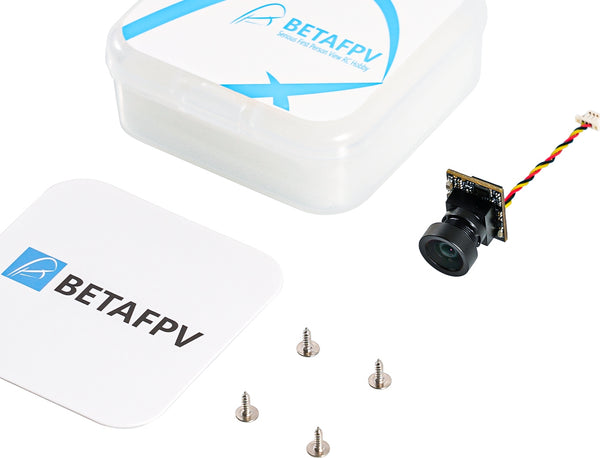

セット内容：

1 * C03 FPV Micro Camera

1 * BETAFPV Micro Canopy

1 * 20° Lens Camera Mount for C02

1 * 20° Lens Camera Mount for C03

1 * 30° Lens Camera Mount for C03

3 * Decorative Parts

4 * M1.4*5 Screws (Sliver)

6 * M1.4*4 Screws (Black)
