FLYWOO NIN V2 1203PRO 5500Kv/ 1.5mm shaft Fpv Motor 1PCS
¥ 2,170 税込
商品コード：
関連カテゴリ
セット内容：
1x FLYWOO NIN V2 1203PRO MOTOR
2x M2*7 4XM2*5 ounting Screw

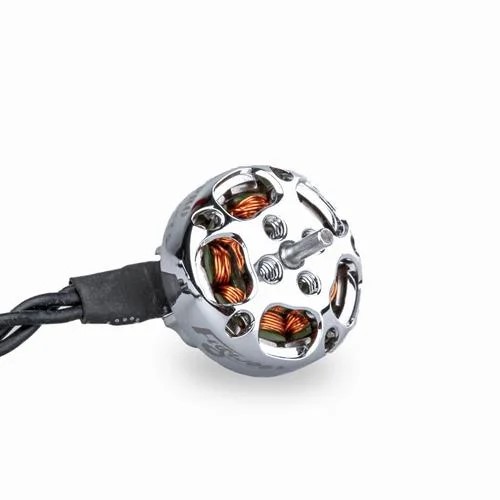

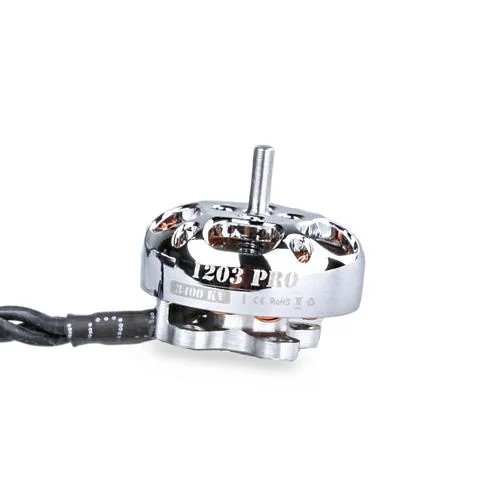

NIN V2 1203PRO was the ultra reliable high performance micro drone motor . Using the high grade unibell design , and the best electroplating process that looks clean and aggressive at the same time. The sturdy structure and high-quality materials make it performs like a beast, you"ll have your mind blown!
Best suited for cinewhoop, micro rippers or any 2''3'' freestyle and racing builds
Features
Power efficiency becomes higher, experience more flight time
The high grade unibell design , and the best electroplating process
Standard mounting pattern at the bottom, adapt to all frames on the market
Adopt a curved magnet structure to achieve more smooth and silent
Recommended Parts
Battery:
Explorer 450 mAh HV 4s 75C Lipo Battery
Explorer 300 mAh HV 4s 75C Lipo Battery
Frame:
Firefly Baby Quad 1.6'' Frame kit
Firefly Hex Nano 1.6'' Frame kit
Specifications
KV: 3400KV
Configu-ration :9N12P
Stator Diamter : 12mm
Stator Length : 3mm
Shaft Diameter : 1.5mm
Motor Dimension(Dia.*Len) : Φ16.2*9.9mm

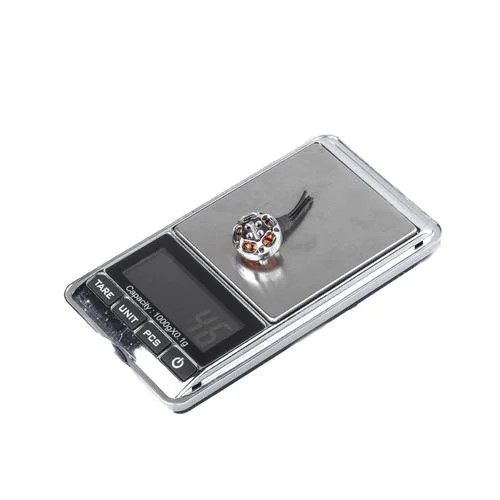

Weight(g) : 4.7(3cm wire)
Idle current(10) : @10V(A) : 0.3
No.of Cells(Lipo) : 3~4S
Max Continuous Power(W) 3S : 92
Internal Resistance : 700mΩ
Max Current(3S) : 6.2A
Max.Effciency Current : (0.6-1.2A)>85%
KV: 5500KV
Configu-ration :9N12P
Stator Diamter : 12mm
Stator Length : 3mm
Shaft Diameter : 1.5mm
Motor Dimension(Dia.*Len) : Φ16.2*9.9mm
Weight(g) : 4.7(3cm wire)
Idle current(10) : @10V(A) : 0.7
No.of Cells(Lipo) : 3~4S
Max Continuous Power(W) 3S : 96.2
Internal Resistance : 350mΩ
Max Current(3S) : 6.5A
Max.Effciency Current : (0.5-1.6A)>84%
