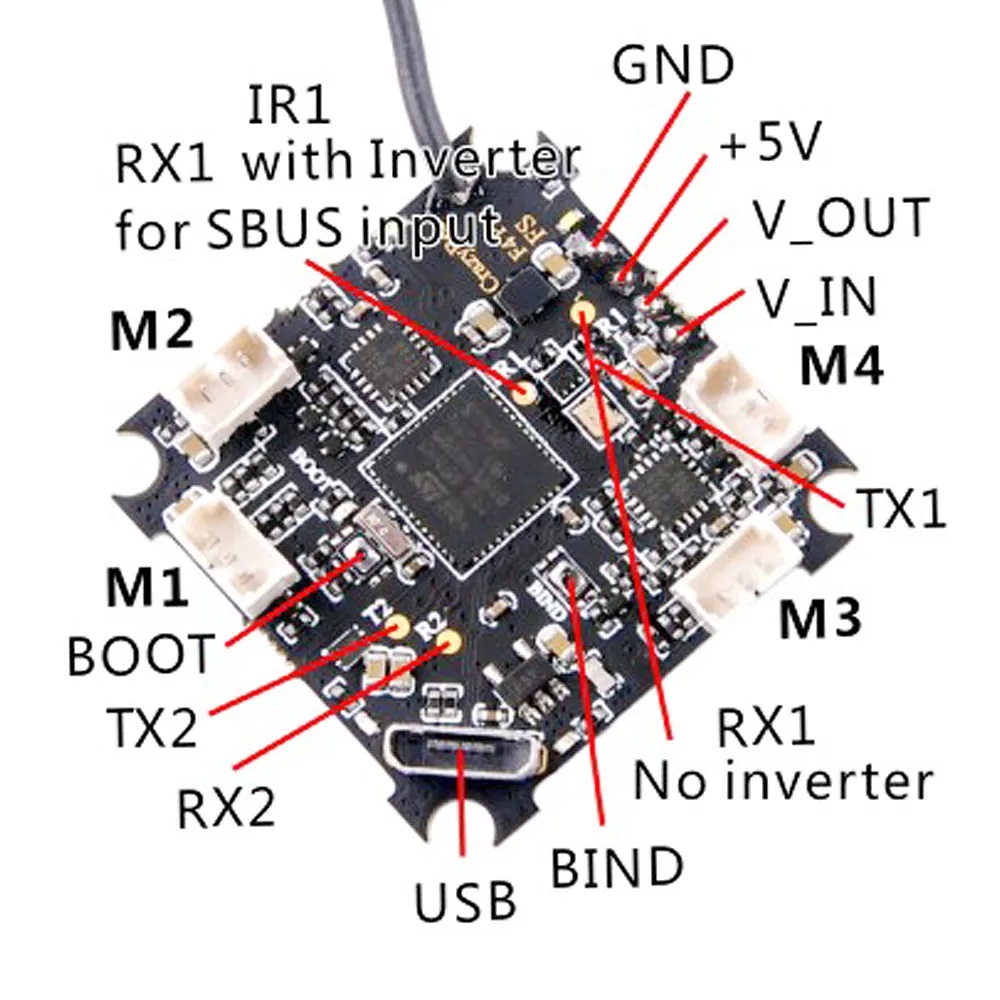

Crazybee F4 Pro V2.0 flight controller 1-2S Flysky

¥ 8,450 税込

商品コード:

数量

1〜2セルまで対応するF4オールインワンFC!



Flysky対応の受信機内蔵!

BETA75Xや75PRO2などを2セルで飛ばすことが可能です



Specification:

Brand Name: Happymodel

Item Name: Crazybee F4 Pro V2 Flight Controller

MCU:  STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1-2S battery input (DC 3.5-9V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Receiver ( Diffirent version having diffirent receiver,

                            without receiver version doesn't have rx)

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 28A

Current meter scale set to 1175

Built-in 5V 1A Buck / Boost with LC filter

Built-in voltage detection



Onboard 5A 4 In 1 ESC



MCU upgraded to EFM8BB21



Power supply: 1-2S LiPo/LiPo HV (3.5v/9v)



Current: 5A continuous peak 6A (5 seconds)



Support BLHeliSuite programmable



Factory firmware: S_H_50_REV16_7.Hex



Default protocol: DSHOT600



Onboard Receiver

Frsky version:  Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)

Flysky version: Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible)

DSMX version: Built-in Serial-based DSM2/DSMX compatible satellite receiver

                         (Default RX2 was used for DSM2/DSMX receiver)

No RX version: support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.



Package Included:

1x Crazybee F4 Pro V2.0 Flight Controller
