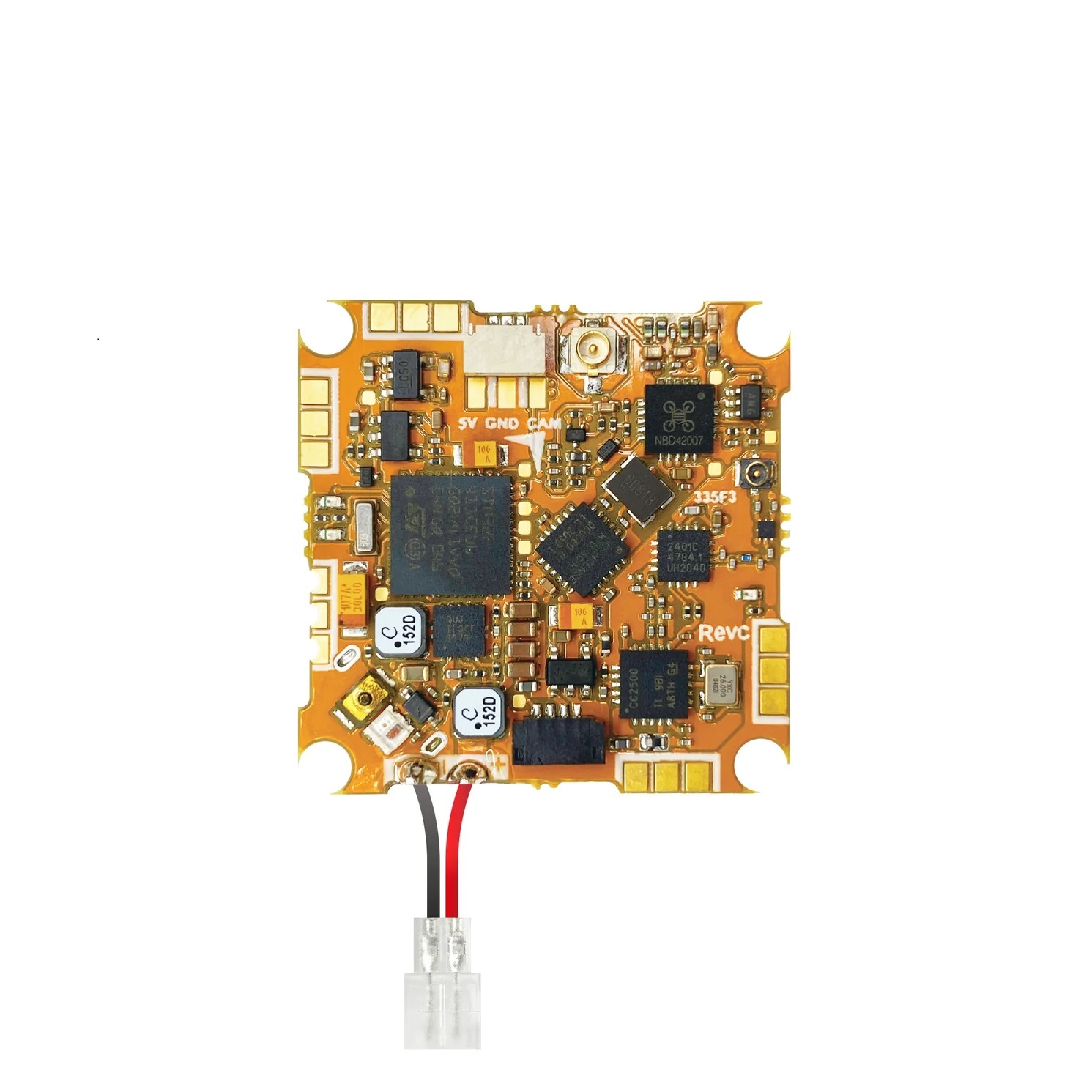

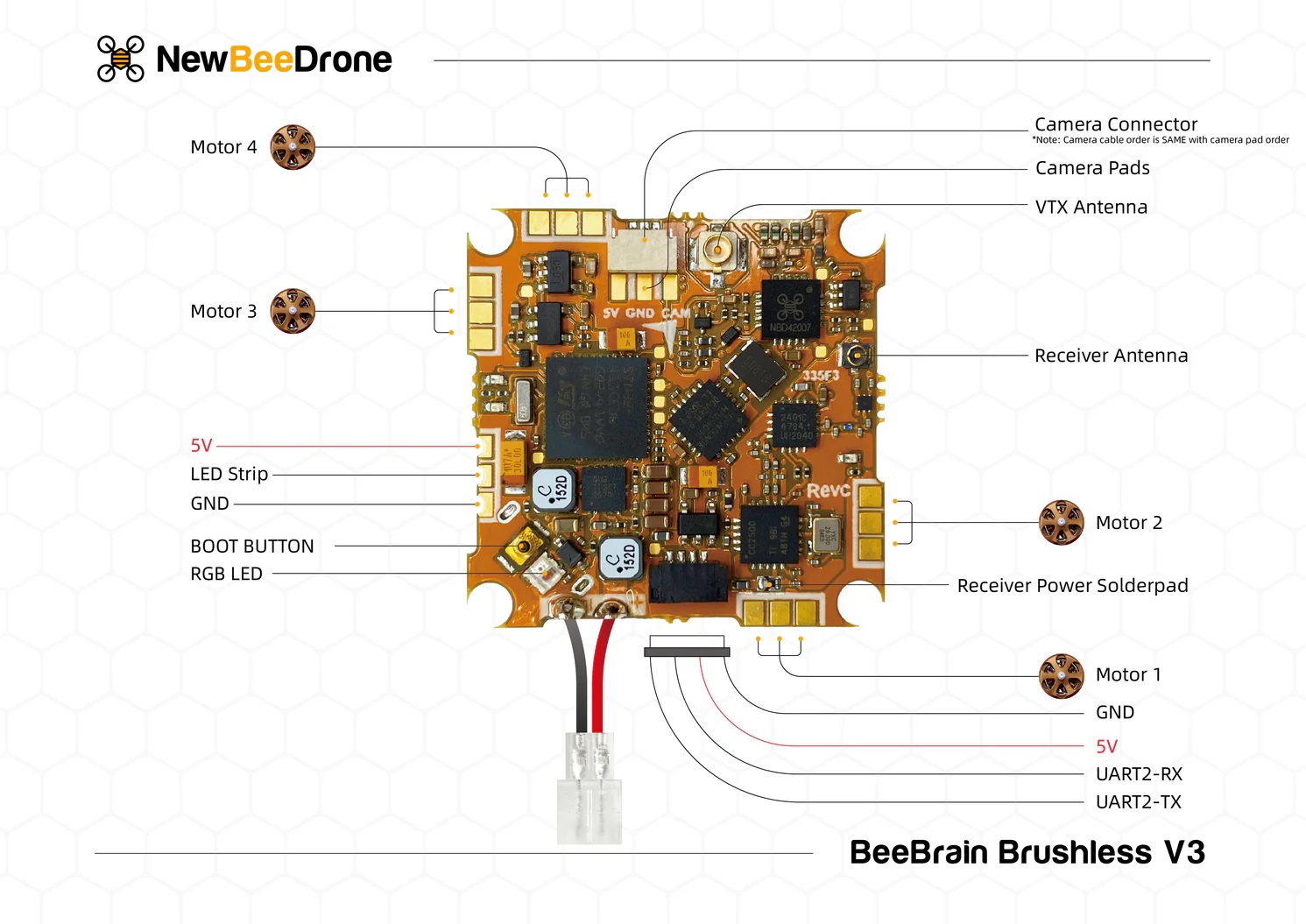

New Bee Drone BeeBrain BLV3 AIO Flight Controller(SPI Frsky)

通常価格:¥ 12,700 税込

¥ 9,500 税込




モーターコネクター装着済+SPI Frsky受信機内蔵!


Tiny Whoop用オールインワンブラシレスフライトコントローラー!(モーターコネクター装着済)

1-2セル対応で12A ESCが付属のワンボードFCです!



コントローラーはBeta Flight等で設定が可能!

レシーバーモードはSPI RX support(Frsky)となります

Receiver Improvements - 50% More Range

  1. Optimized SPI Receiver hardware to improve efficiency within the receiver.

  2. Removable antennas.

  3. Additional low noise amplifier to increase range.

  4. Optional wiring harness is included to install an external receiver (Crossfire, Ghost, etc)

Video Transmitter Improvements - 120mW

  1. New heatsink and layout to increase heat dispersion and efficiency.

  2. Transmitting power increased to 120mW from 25mW (V2)


  • STM32F411 MCU

  • ESC Firmware: Ships with JESC 48 KHz. BLHeli_s capable.

  • ESC Specifications: 4 channel 12A ESC

  • Weight: 6 grams (including antennas and battery connector)

  • Size: Outer dimensions 29 x 29 x 7.6 mm

  • Holes: 25.5 x 25.5 mm

  • Battery input: 1 – 2 S

  • UART2 TX and RX free for external receiver (un-inverted SBus signal only)

Note: The default power mode is low (5mW). Set the power level to medium (50mW) before flying.

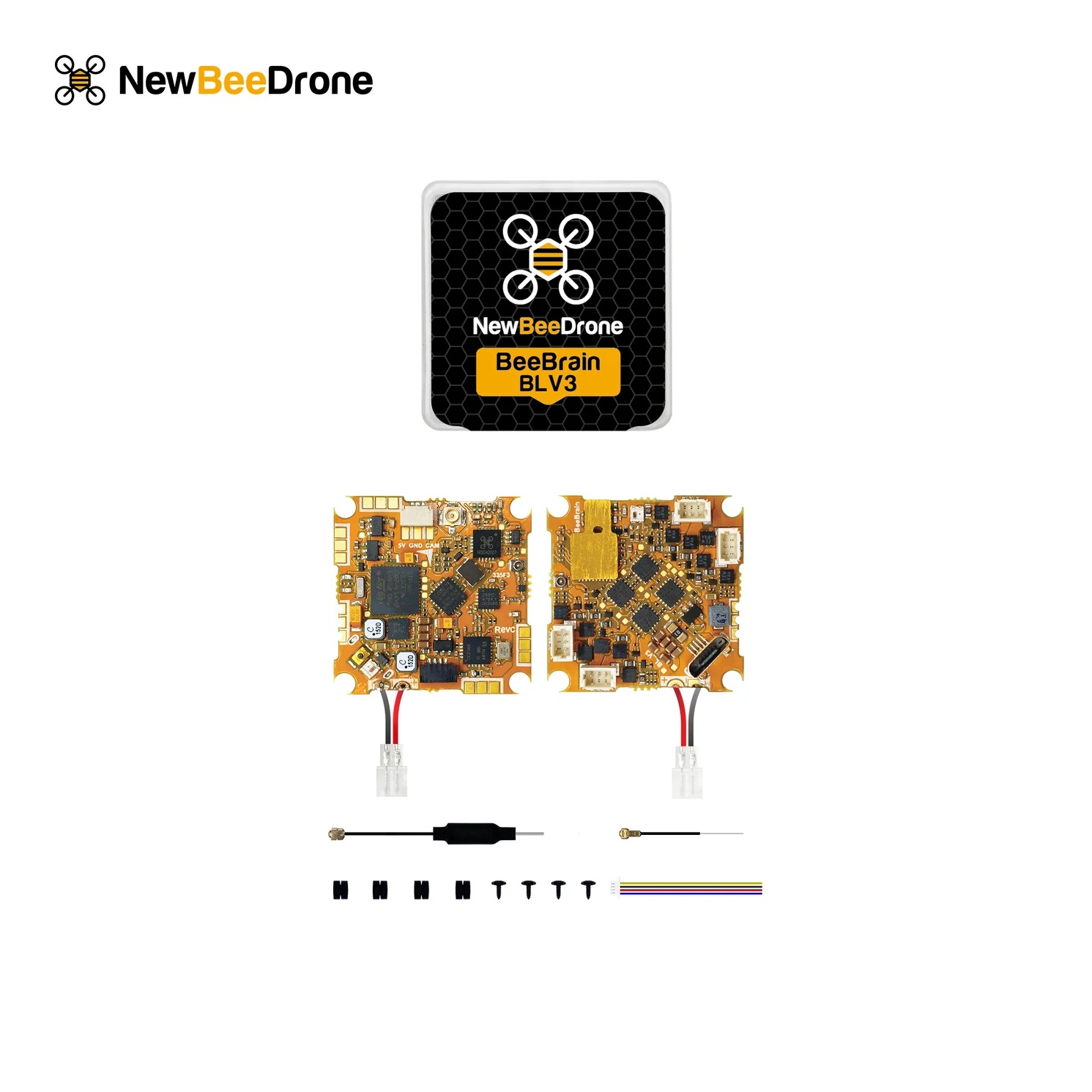

  • 1 x BeeBrain BLV3 Flight Controller

  • 4 x Grommet

  • 4 x Screw

  • 2 x Receiver Antennas

  • 1 x VTX Antenna
