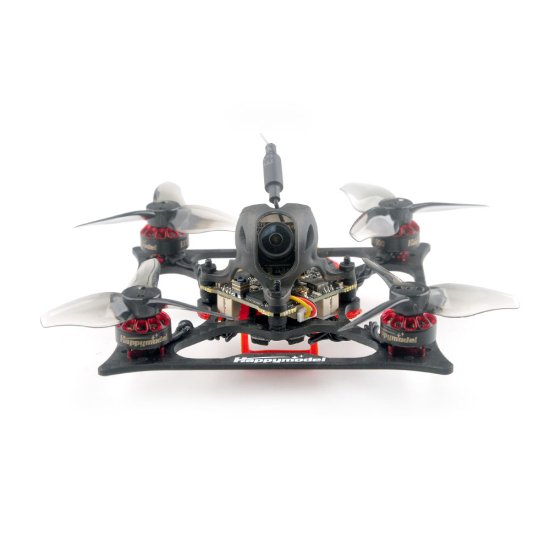

Happymodel Bassline 2s Micro FPV Racer Freest(ELRS)
¥ 19,800 税込
商品コード：
関連カテゴリ

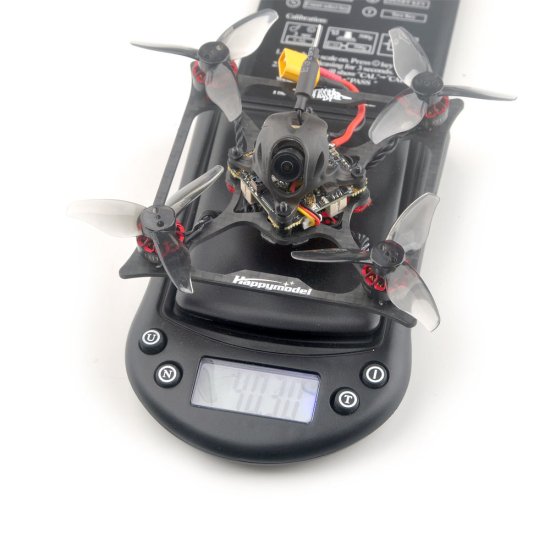

バッテリーを含めても100g未満のマイクロドローン！
2インチで本格的なフリースタイルを練習できるドローンです！
2セルでパワフルなフライトが出来ます！
TinyWhoopからのステップアップに最適です！

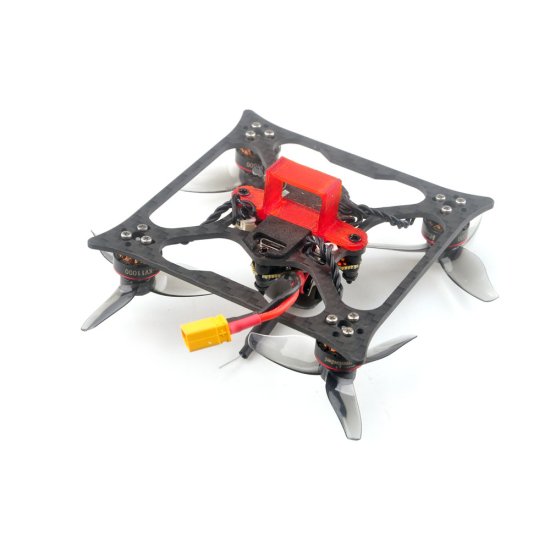

丈夫なスクエアカーボンフレーム構造！
0803-11000kvモーター搭載
Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
VTX Power up to 400mw
Support ELRS V3.0 (Need to upgrade firmware)
Powerful EX1103 KV11000 motors
CaddxFPV Ant FPV camera
Recommend 2S 350mah/450mah/550mah/650mah battery (Not include)
Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm
Specifications:
Brand Name: Happymodel
Item Name: Bassline 2S 2inch Micro FPV toothpick drone
Wheelbase: 90mm
Size: 115mm*115mm*40mm
Parts specifications:
Motor
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
Propellers
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller
X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky/SFHSS V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Default Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module
Onboard SPI Frsky / SFHSS receiver Versio
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 model
Channels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Caddx ANT 1200tvl camera
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)

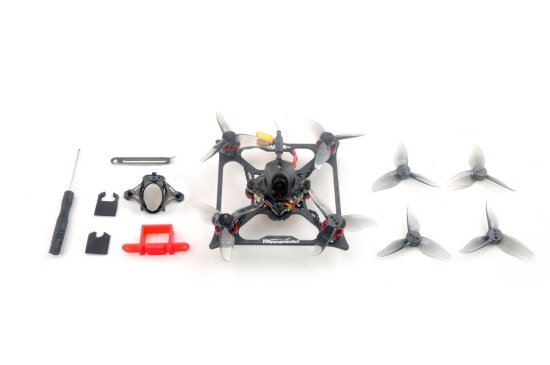

セット内容
1x Bassline 2inch frame and canopy
SFHSS Option: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver
ELRS Option: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver
4x EX1103 KV11000 brushless motor
1x Gemfan toothpick 2023 tri-blade propellers(4cw+4ccw)
1x Caddx ANT 1200TVL Camera
1x Onboard 5.8G Openvtx 0mw~400mw VTX
1x Canopy for 14mmx14mm camera
1x Screw driver
1*VTX系統図
