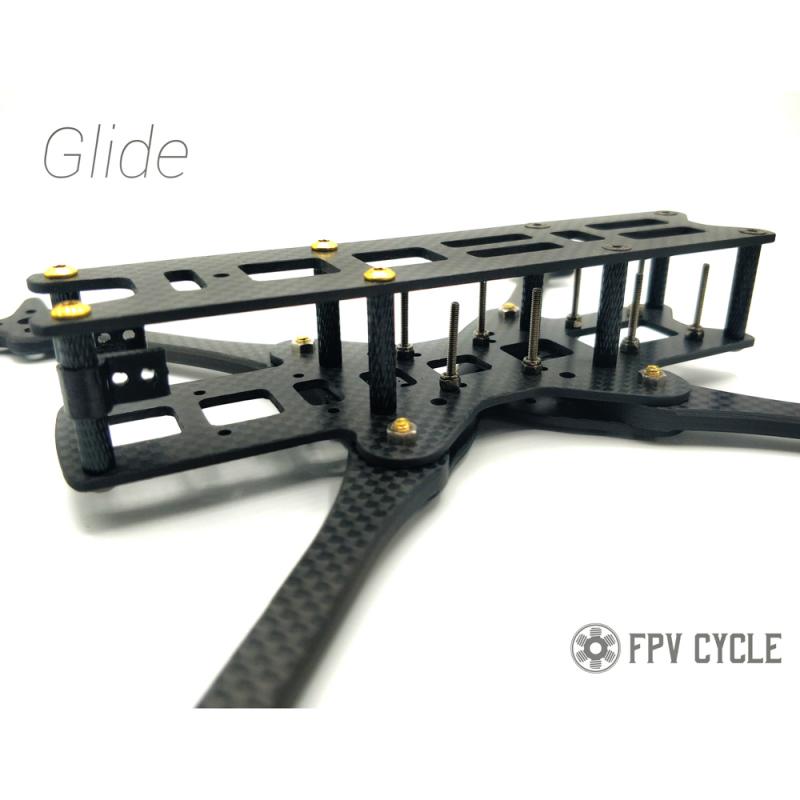

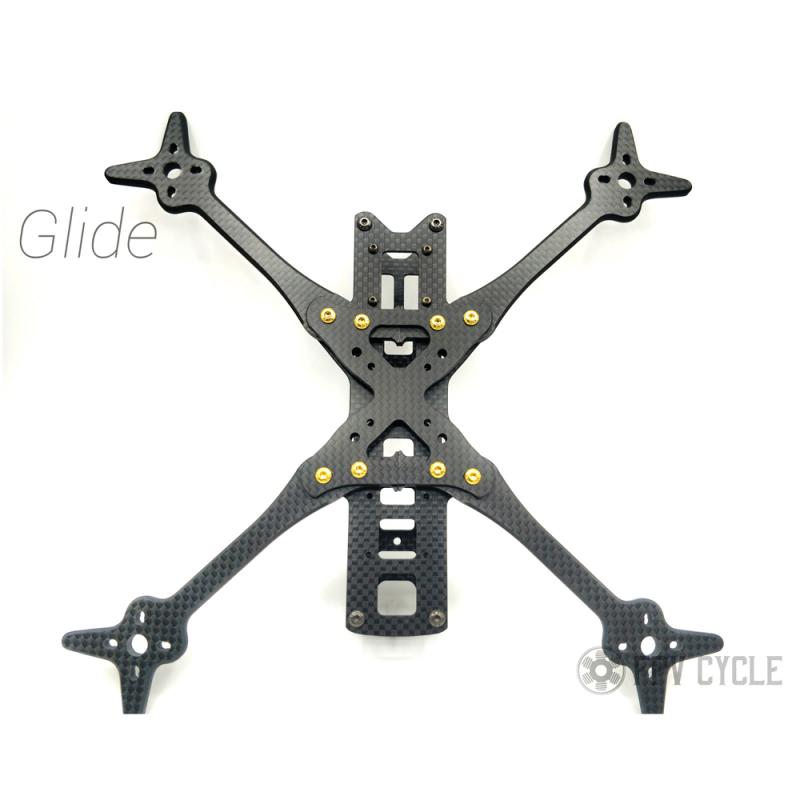

Fpvcycle Glide Frame
通常価格：¥ 7,800 税込
¥ 6,240 税込
商品コード：
関連カテゴリ
フリースタイル用に開発された軽量で丈夫なフレーム！
細部にわたって細かな配慮がなされた設計
5.1インチペラ装着可能！
※フレームのみとなります
FEATURES:
Fits 5.1” props
Motor mount pattern: 16x16 and 19x19
Frame weight fully built with FPV cam mount: ~99g, ~86g lite, ~130g Hammer
Premium materials
True X layout with option of dead cat arms
One central 30x30/20x20 mounting platform flanked by two 20x20 platforms all accessible at all times with no interference.
No stack screws touch any arm parts. No arm/stack integration.
Two screws per independent arm with bracing against other arms. Easy swaps and secure fit.
23mm standoffs (fits vista with low cam tilt, 25mm recommended for DJI standard cam)
Motor bumpers on arms really do save motors from damage.
GoPro mount platform compatible with legacy FlosStyle and Flowride mounts.
12.9 hardness steel screws and steel press-nuts because ain't nobody got time for stripped aluminum. (switched back to black because it’s stronger)
Micro and Nano sized FPV camera spacing (20mm wide or narrower)
Dead Cat arms available to be purchased separate
NOTE:
Please thread your central stack screws before assembling the arm and lower plate complex. Also, carbon compresses over time. The arm/lower plate complex is very tight the first time you put the frame together. each successive time it will not be that tight.
The Glide Floss is built to work for you. While it comes in nicer carbon with pretty finishes, its focus is convenience and compatibility rather than aesthetics. The option of dead cat arms is directed at those needing a workhorse for FPV videography and absolutely must get their props out of view with low GoPro tilt. The arms are also easy to swap so you can go back and forth. This design comes from the legacy of Hyperlite and Floss frames with optimizations over all freestyle frames in the series before it. If you’re running a Flowride or FlosStyle, we know you love them but overall this design is better balanced, easier to build and maintain, stronger and comes in better carbon.
RECOMMENDED BUILD:
Weight adds up quickly and is enemy #1 for flight performance. You don't really need that giant Vtx antenna mount or those thicc TPU shoes. The 20x20 mounting platform in front is primarily intended for your flight controller. This is due to the heaps of various types of noise radiating from your ESC, power lines, vtx and most importantly, the Crossfire receiver. Telemetry left on with Crossfire will disturb your OSD chip and camera. It's recommended that your Crossfire Rx be moved to the rear while the camera and FC stay up front. The first time you put this frame together it will be very tight. It will seem like the holes are off, they're not. Carbon compresses over time and this design will compress to normal rather than loose which causes arm wiggle. If your frame doesn't feel rigid after a while, please tighten your screws. They too come loose over time.
OTHER RECOMMENDATIONS:
Recommend 650g AUW or below for 5". Sub 610g AUW is ideal.
2207, 2306, 2208, 2306.5, 2307, 2407, 2305 motors in ~1800kv 6S or ~2500kv 4S.
Recommend motor weight under 35g
Sub 200g battery 4S-6S
Sub 4.3g 5" or 5.1" prop
Any 20x20 FC
WaFl premade cap
Please use blue loctite for inner arm mount screws...unless you're lazy like us. Then just know that they may come loose over many flights.
