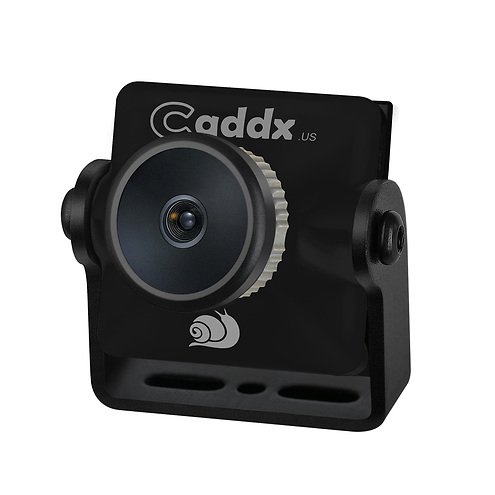

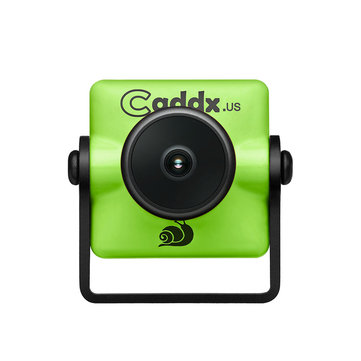

Caddx Micro Turbo F2-1200TVL 2.1mm

¥ 2,480 税込

商品コード:

数量

高解像度1200TVLの1/3” CMOSセンサー内蔵マイクロカメラ!

マイクロ機に最適な高性能!超小型カメラ!

調整機能付きで使いやすいカメラです!

4:3



角度変更が容易に出来る使いやすいカメラです



※2.1mmワイドレンズ

※NTSC



Specification:



Model: Turbo Micro F2



Image Sensor: 1/3" CMOS Sensor



Horizontal Resolution: 1200 TVL



TV System: NTSC/PAL switchable



Synchronization: Internal



Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000



S/N Ratio: >52dB (AGC OFF)



Video Output: CVBS



Lens: 2.1mm

Aspect Ratio: 16:9 or 4:3



Min. Illumination: 0.001Lux@F1.2



Auto Gain Control: YES



BLC: YES



Camera: YES



WDR: D-WDR



DNR: 2 DNR



Day/Night: Auto/Color/B&W



Dimensions: 19mm*19mm*16mm



Wide Power Input: DC 4.5-40V



Work Temperature: -20℃~+60℃



Work Humidity: 20%~80%

Color: Yellow/Green/Pink



Weight: 4.5g (N.W.)





Package included:



1 x Caddx Turbo Micro F2 FPV Camera



1 x Aluminum bracket



1 x FPV silicone cable (4-pin port one side, 3-pin port the other side)



1 x Internal hexagonal wrench



1 x Warranty card

1 set x Screws
