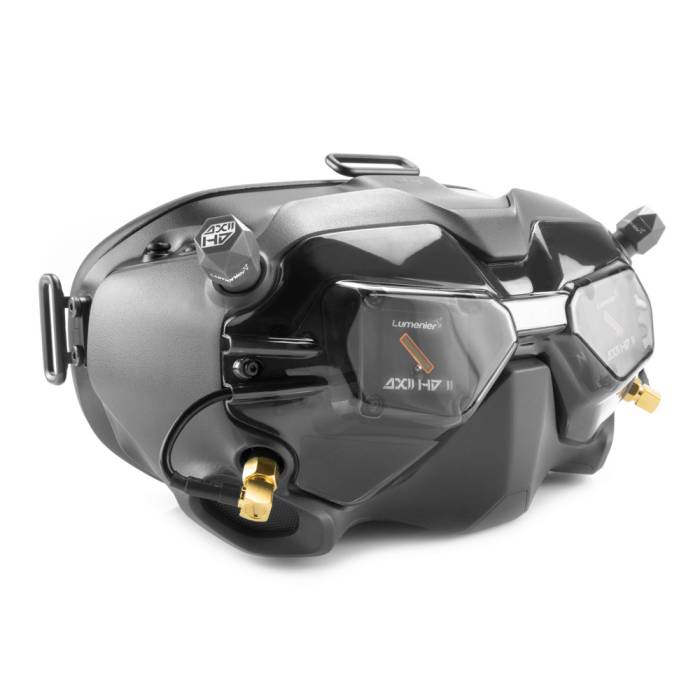

【DJI Air Unit用】Lumenier AXII HD 2 Patch Visor 5.8GHz Antenna Combo Set for DJI FPV Goggles Gray

¥ 13,500 税込

商品コード:

数量

DJI FPVゴーグル用5.8G超高感度パッチアンテナアンテナセット!

5.8Gの安定した受信に最適です!

スタイリッシュでコンパクト!



※LHCPに対応



Specifications

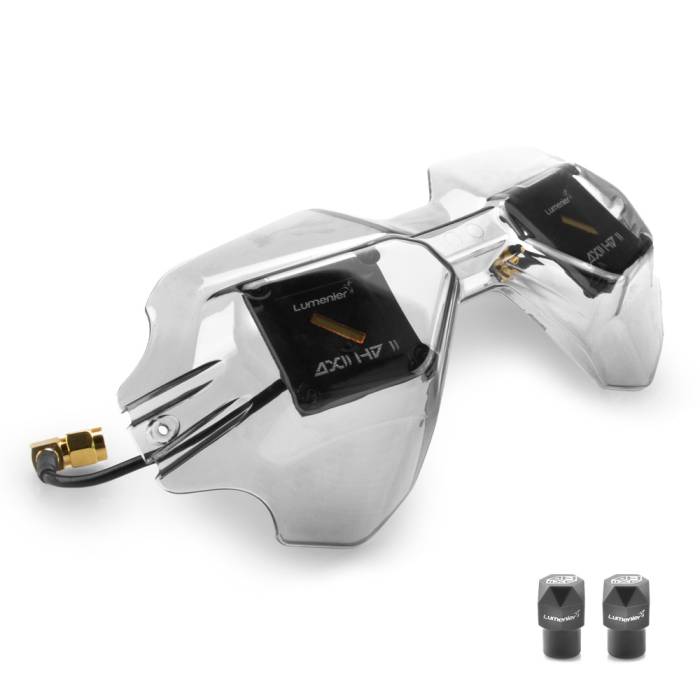

AXII HD 2 Patch Antenna

Model: Lumenier AXII HD V2 Patch Visor Antenna

Frequency: 5.8GHz

Bandwidth: 220 Mhz

Gain: 8.4 dBiC

VSWR: 1:1.1

Radiation Efficiency: 95%

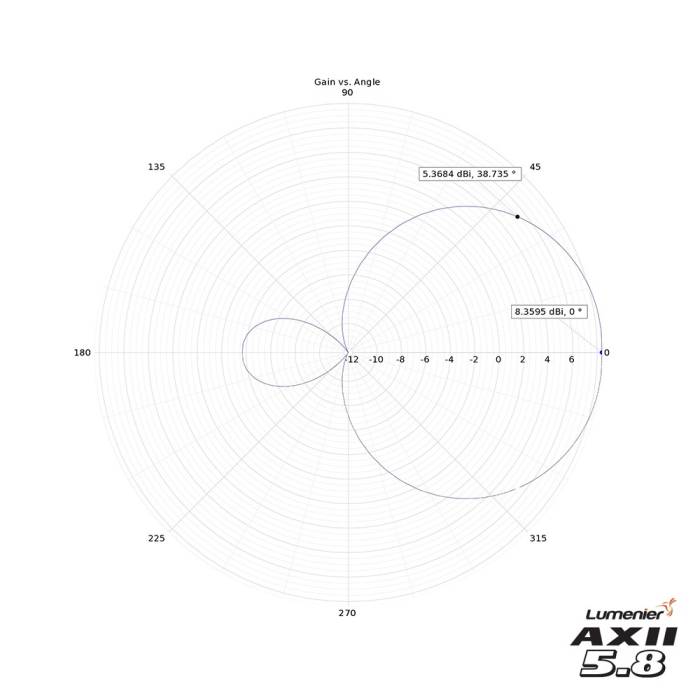

Beam Width: 76° H. 76° V.

Polarization: (LHCP) Left Hand Circularly Polarized

Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)

Weight: 33g



Micro AXII HD 2 Stubby Antenna

Gain: 1.9dbic

Axial ratio: 1.0 (near perfect)

Bandwidth: 5.3GHz-6.2GHz

Radiation Efficiency: 99%

Cross-Polar Rejection: -15 to -30dB (1.9%)
