GEP-Smart 16 Frame Kit

¥ 2,850 税込

商品コード:

数量

40mmプロペラを使用した小さくてかわいいドローンフレームキット!

本格的なカーボンフレーム構造!

0802〜1102サイズのモーターが使用可能です

アクロフライトへのステップアップに最適です





Specification:



Brand Name: GEPRC



Model: GEP-ST16

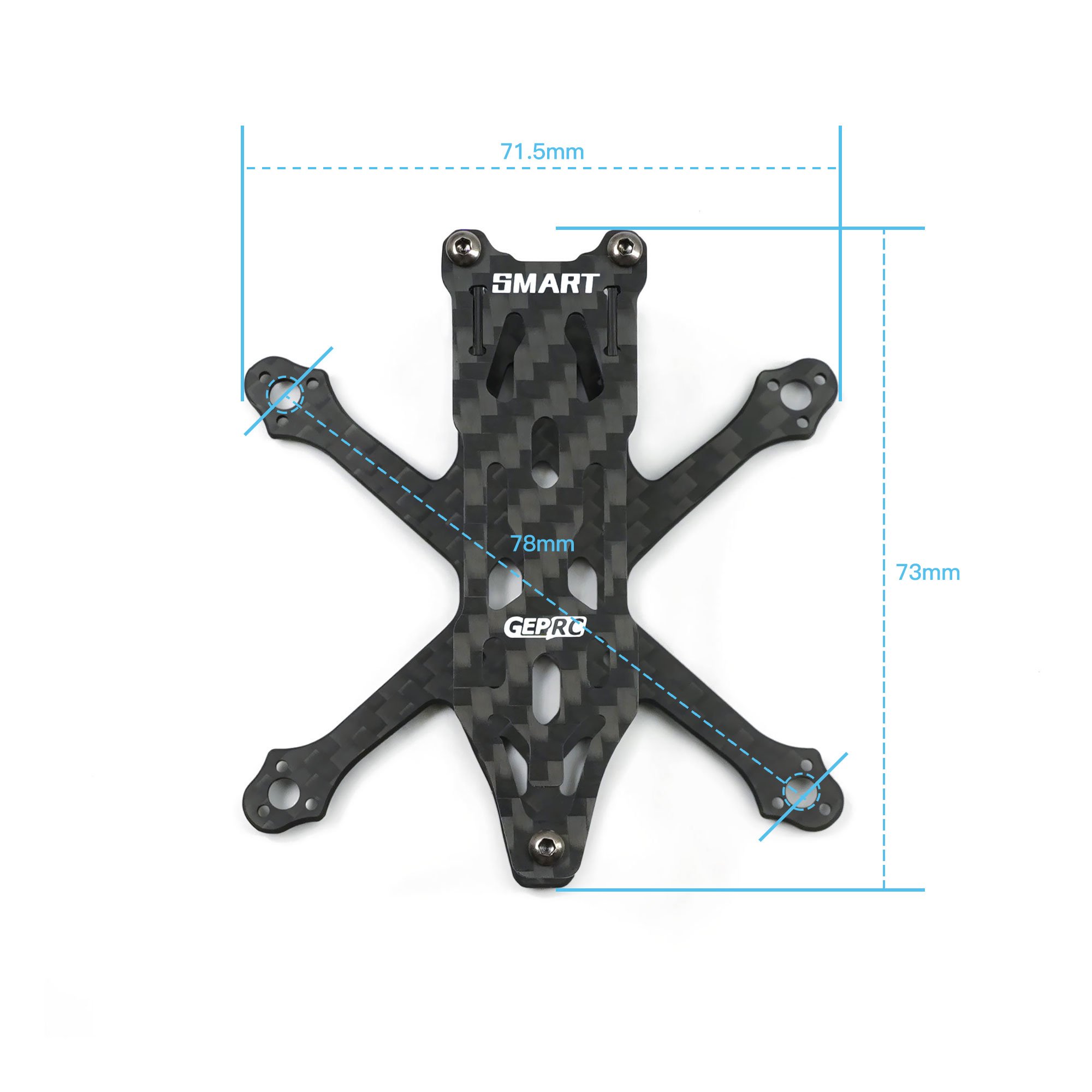

Wheelbase size: 78mm



Top plate thickness: 1.0mm



Bottom plate thickness: 1.5mm



Camera plate thickness: 1.0mm

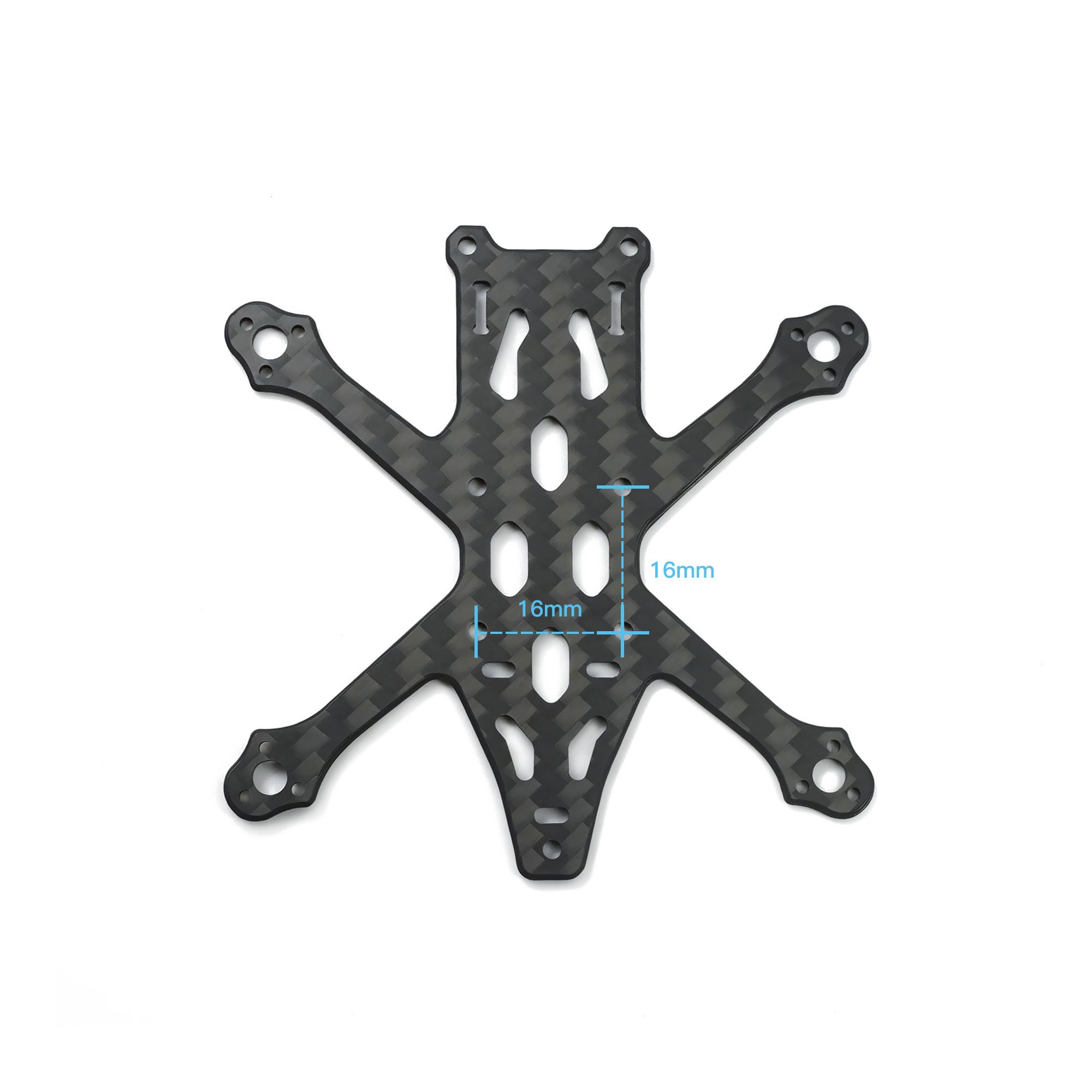

FC mounting holes: 16mm x 16mm



ESC mounting holes: 16mm x 16mm



VTX mounting holes: 16mmX16mm

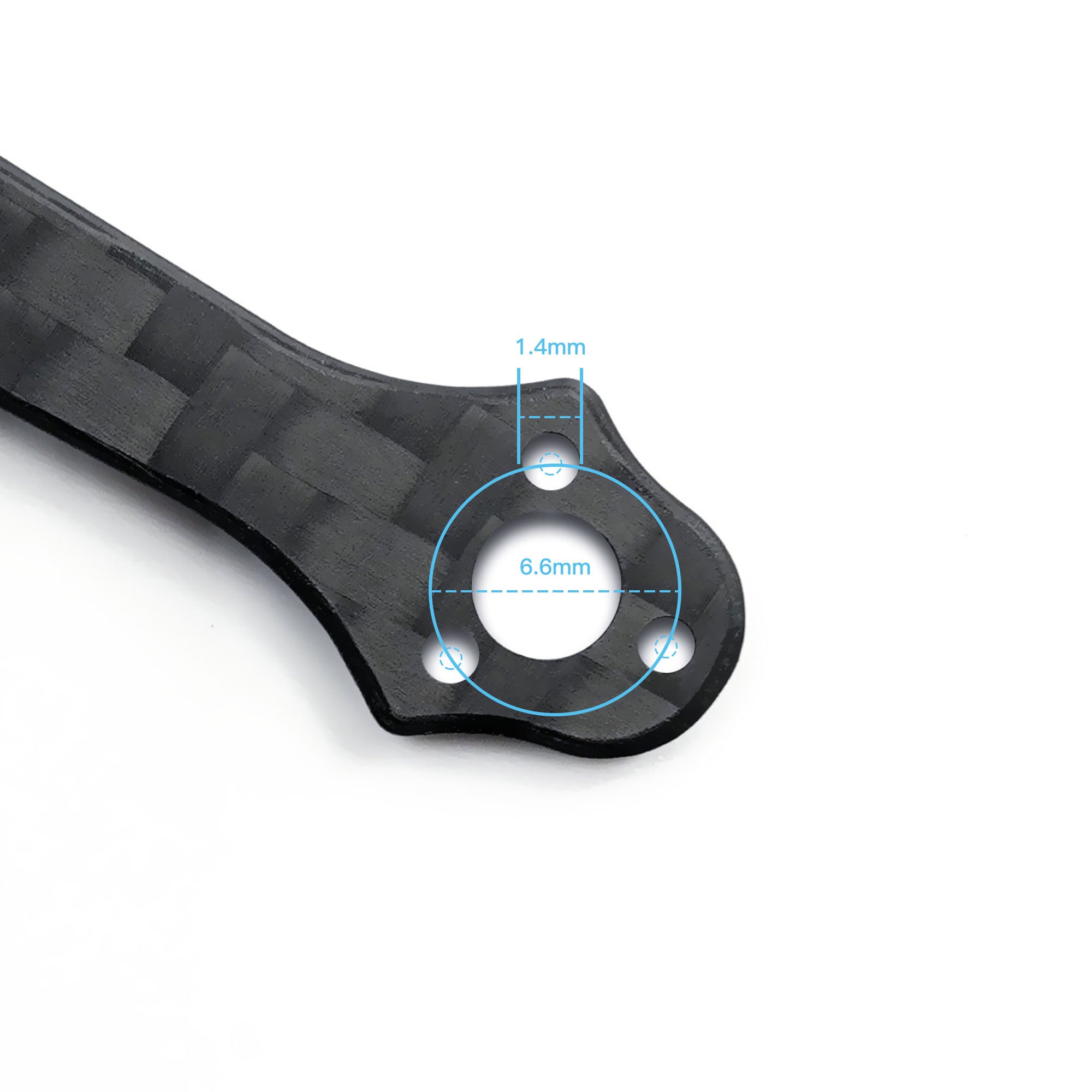

Motor mounting holes: 3-M1.4-EQS-Ø6.6

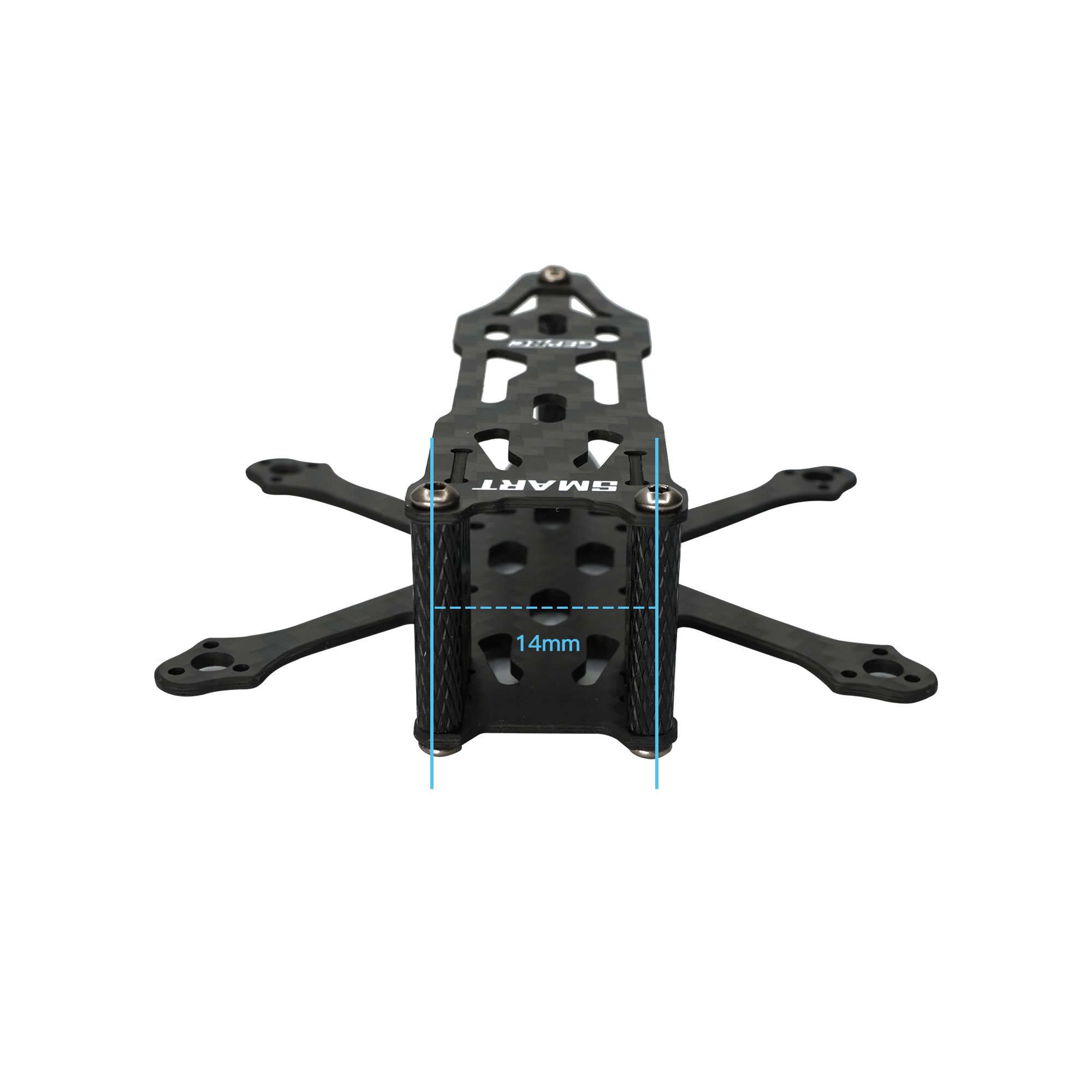

Camera spacing: 14mm



Propeller size: 1.6 inch



Weight: 8.5g (including 3D print)



Features:



1.1.6 inch palm-size



2.Lightweight – 8.5g



3.Motor mounting holes allow installation of 0802 & 0803 motors



4.14x14mm spacing allows installation of any nano camera on the market



5. Independent battery compartment design



6.1.6 inch recommended propeller size maximum efficiency



7.Specifically optimized for both freestyle and racing



8.Includes a full set of high quality 3D printed parts

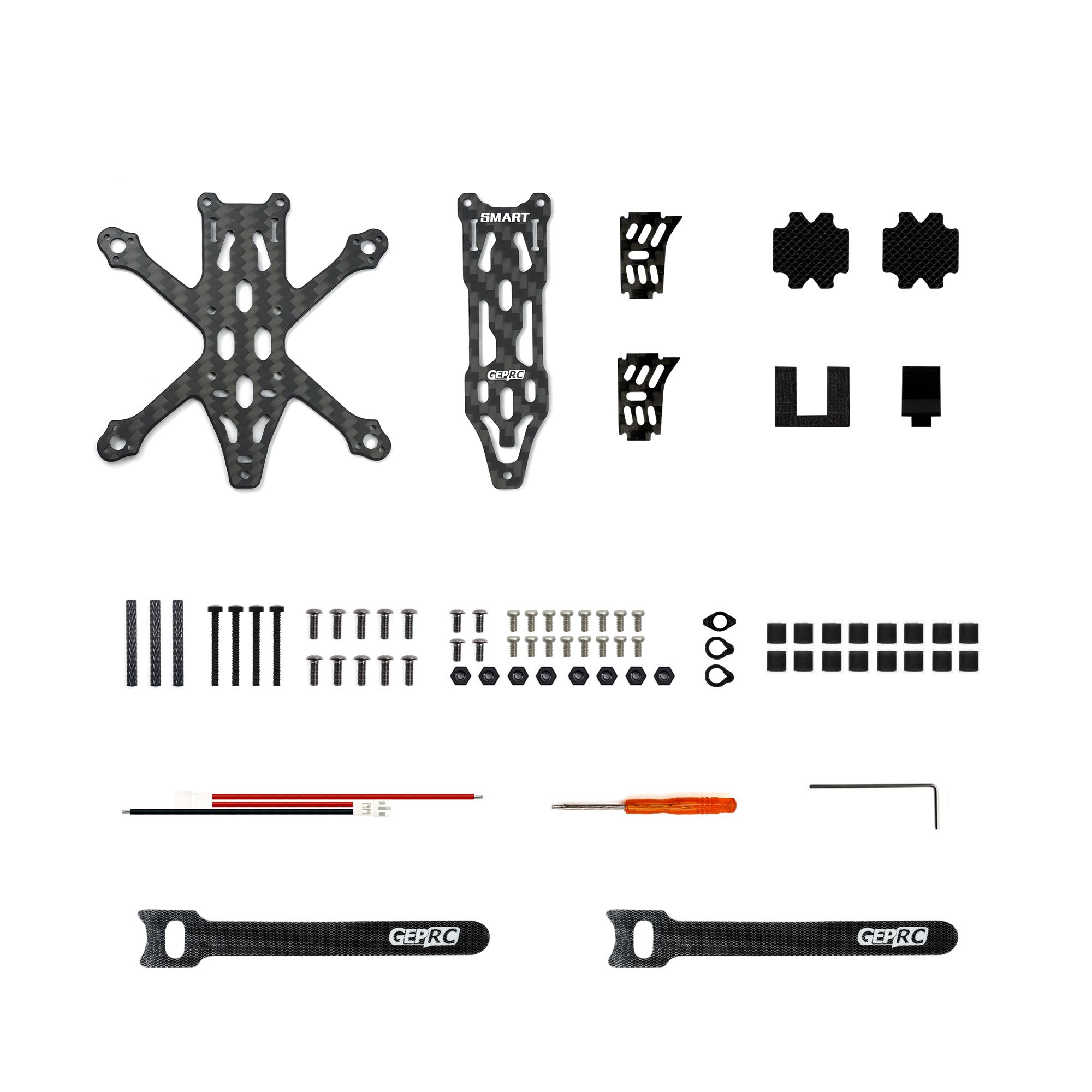

Includes:



1 x 1.0mm top plate



1 x 1.5mm bottom plate



1 x 1.0mm camera plate



1 x Screw set



1 x Printed set



1 x Spare screwdriver set



2 x Battery tie M12x120mm







2 x Battery non-slip mat
