¥ 11,980 税込

商品コード：

Lumenier Razor 55A 2-6S BLHeli_32 4-in-1 ESCは、最新世代のBLHeli_32ファームウェアの32ビットESCです！

32ビットアーキテクチャにより、ESCは驚異的な速度で動作し、8ビットESCとは比べ物にならないパフォーマンスを発揮します！

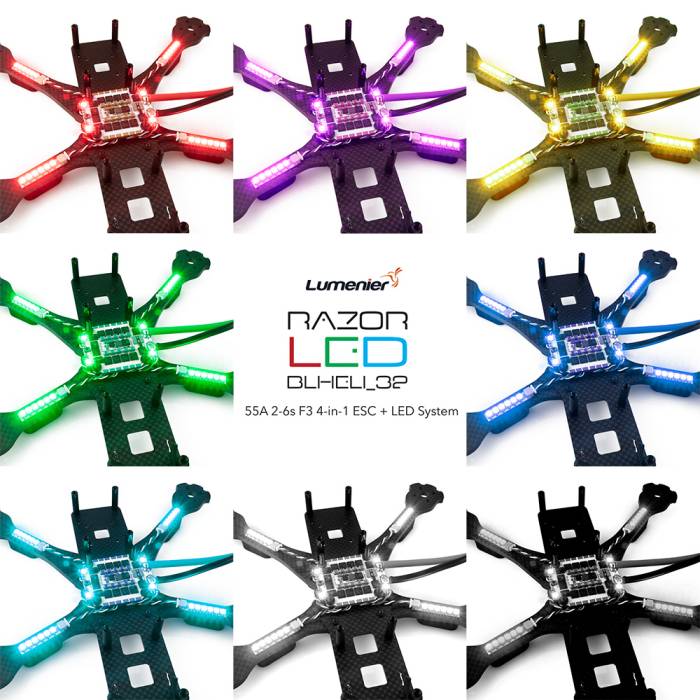

このESCは、RBG LED付属のフライトコントローラー！

各アームへのLED配置や色の変更も簡単にできます。‎

‎このESCの最大の特徴の1つは、極端な電流をサポートできるヘビーデューティ銅トレースです。

ESC PCBの厚さは2mmで、他のほとんどのPCBはわずか1.5mmです。付属のアルミニウムヒートシンクと多くの銅板を使用することによりドローンにより多くの電力を供給することができます。



Benefits of BLHeli_32 Firmware on 32-bit ESC

32bit processors run faster than 8bit, at which we can expect better performance from the new 32bit ESC’s. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols! (Read about DSHOT) (Read about DSHOT1200)

The 32-bit platform also allows more functionality and features that simply wasn't possible on 8bit ESC's, such as

Programmable PWM frequency

Auto-timing for higher efficiency and reliability

Voltage/Current limiting

Adjustable “Brake on Stop” force

Improve direction change in Bidirectional mode

ESC Telemetry

RGB LED control

Configuring from FC using DShot commands

Note: Not all of these features have been implemented yet, some are still in development.

Features

New F3 MCU running at 108MHz, (older ESCs use F0 at 48MHz)

Latest Gen. firmware using BLHeli_32 (Razor_32 target)

Supports DSHOT 1200, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection.

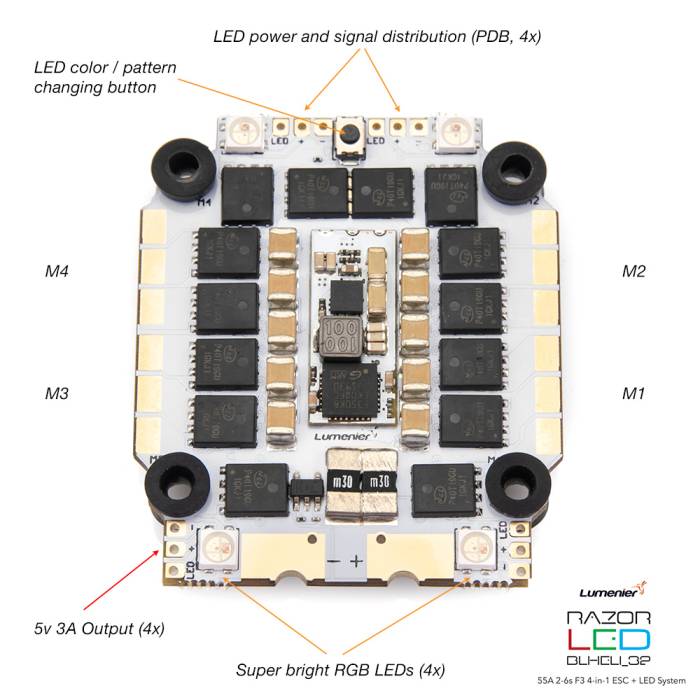

Onboard RGB LEDs with controller and button + LED distribution system

Built in 5v regulator that powers the LED system

Adaptive timing, compatible with a wide range of motors and Kv

Synchronous rectification technology adds efficiency, damped light

Powerful regenerative braking / active braking.

2-6s LiPo battery compatible



Specs

Input: 2-6s LiPoly

Constant: 55 Amps

Burst: 65 Amps

Dimensions: 39x45x5mm

Mounting holes: 30.5x30.5 M4 (M3 with rubber inserts)

Signal wire: 7cm

Weight: 15g

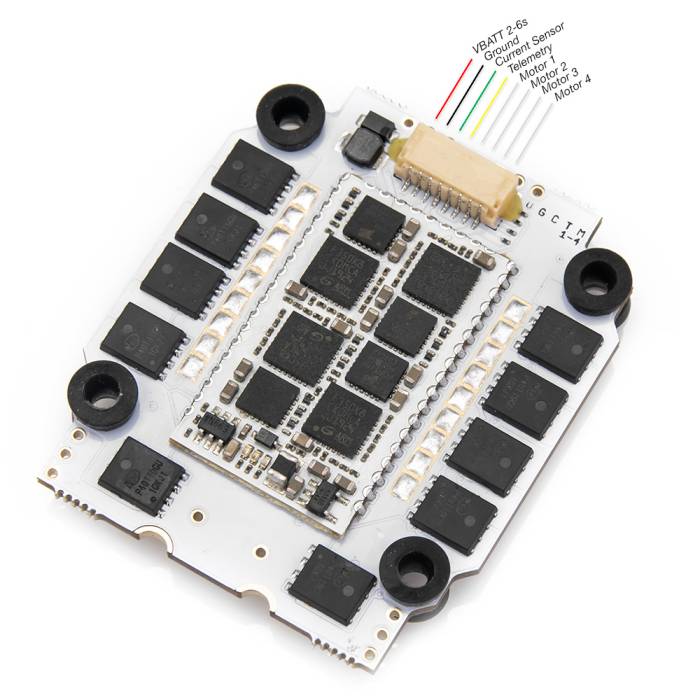

8pin connector pinout: VBAT, Ground, Current ADC, TLM, Motor 1, Motor 2, Motor 3, Motor 4

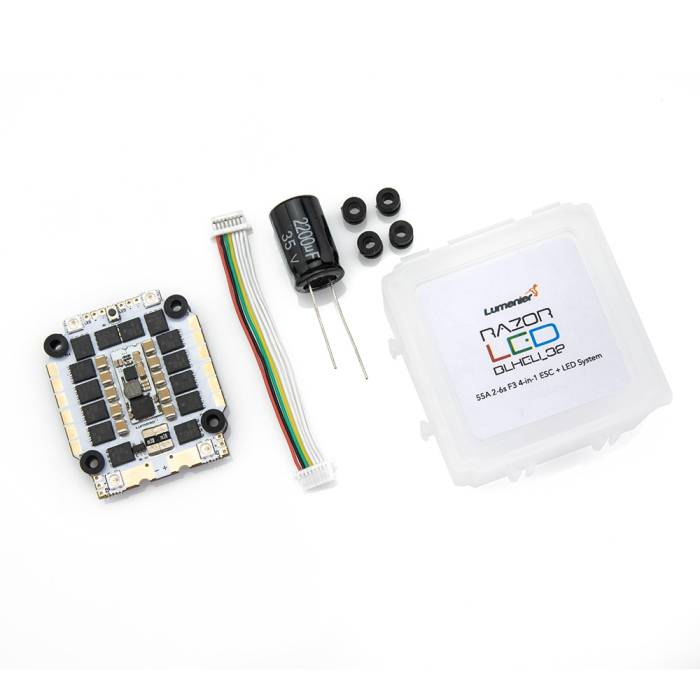

Includes

1x Lumenier Razor LED 55A 4in1 F3 BLHeli_32 2-6s ESC

1x 8pin micro JST-SH 7cm connector for 4in1 ESC to FC connection

1x 2200uF 35V Capacitor4x M3 Anti-vibration gummies (extra)
