Lumenier SM-25 25mW Micro VTX - U.FL SMA

¥ 1,490 税込

商品コード：

数量

Tiny Whoop用25mWのマイクロVTX！

キャノピーなどを取り付ける際に便利

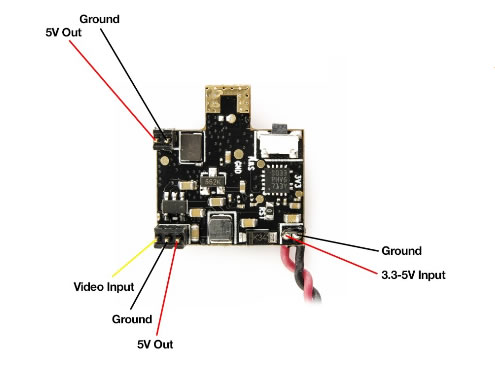

入力電圧は3.3〜5.5V

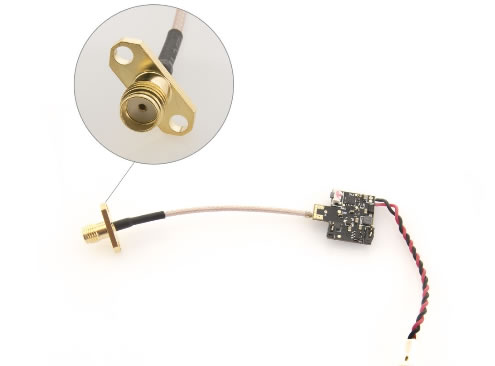

※U.FL to SMA adapter付



Specifications:








  • Operating Voltage: 3.3-5V (Do not power with more than 5v input)

  • Operating Current: 150 mA (350mA Max)

  • Operating Temperature: -10 +85 C

  • Size: 14mm x 18mm x 3mm

  • Weight: 2.2g(4g with SMA adapter)

  • Antenna Connector: None, direct solder

  • Video Format: NTSC/PAL

  • Frequency Selection: Single push to change CH, push and hold for 2 seconds to change FR







Frequency and channel frequency table:




































































Band Channels
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
 Band 1   FS / IRC 5740 5760 5780 5800 5820 5840 5860 5880
 Band 2   Lumenier / DJI  5705 5685 5665 5752 5885 5905 5925 5866
 Band 3   Bosecam A 5865 5845 5825 5805 5785 5765 5745 5725
 Band 4   Raceband 5658 5695 5732 5769 5806 5843 5880 5917








Included








  • 1 x transmitting unit (VTX) SM-25 Dipole

  • 1 x power cable
