Sub250 1s Nanofly16 1.6 inch Freestyle Quadcopter

¥ 23,000 税込

商品コード：

数量

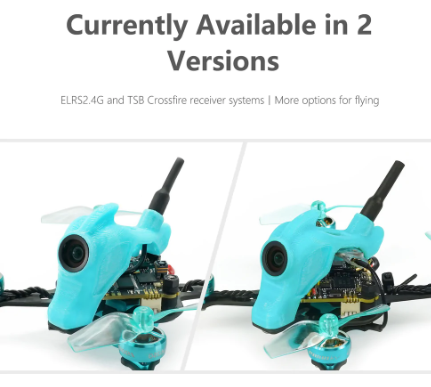

HELLO everyone, Welcome to Sub250 Shop. We are very happy to introduce our first Ultra-light Freestyle FPV Drone Sub250 1s Nanofly 16 to you. it is very quiet, and suitable for both indoors and outdoors. Currently available in 2 versions: ELRS 2.4G, TBSNanoRX-TBS 915 Mhz



The design concept of Nanofly 16 quad is lightweight, small in size, has good hand feels, and is suitable for a variety of flight scenarios FPV traversing aircraft. Obviously, it exceeded the design specifications. We designed a 1.5mm carbon fiber body with a 3D-printed upper shell for the Nanofly 16. The fuselage has high strength and is very crash-resistant. We did a lot of tests and selected the Ant lens with better effect, which has a better imaging effect and less wide-angle distortion. We developed a 0803-19000KV strong magnetic motor with 40mm propellers, it has strong power and smooth throttle, which is very suitable for flying freestyle.



Nanofly16 has an ultra-light body weight with the latest 1S 380mAh high-voltage battery. The take-off weight of a drone is only 38.0g, and the flight time is 4.5 minutes. Equipped with a 3D printed battery holder, it is convenient and quick to replace the battery.



The most important thing is that Nanofly16 is very quiet to fly, like a dragonfly, you can both fly it at home and freestyle in the yard and even set up a few gantries for racing practice. Trust me, you'll love this small, portable, and quiet mini FPV drone after you fly it.







Features:

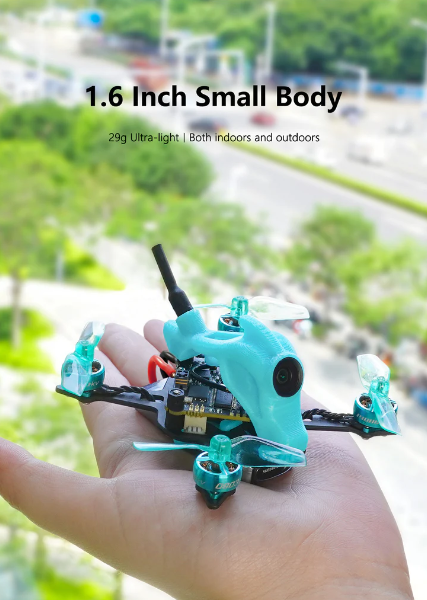

  • 1.6-inch tiny size & lightweight, just 28.0g

  • Includes a full set of high-quality 3D printed parts for a superior flying experience

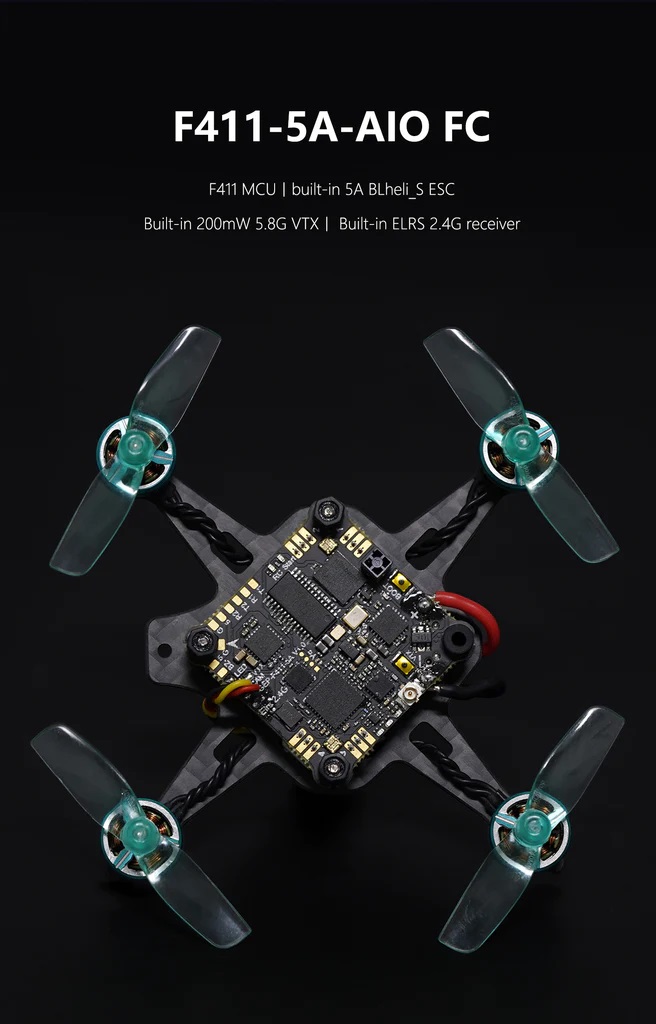

  • It is equipped with a new F411-1S AIO/250mW/ELR Flight controller. Reliable & stable and easy to use.

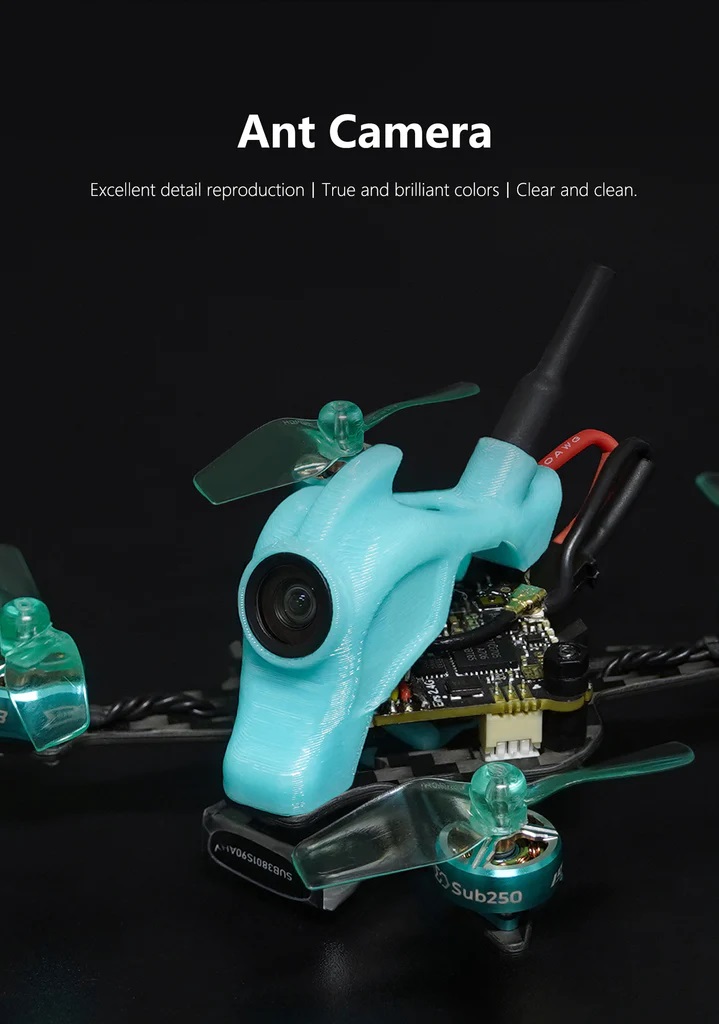

  • Ant camera with a high-quality image. Clear and clean.

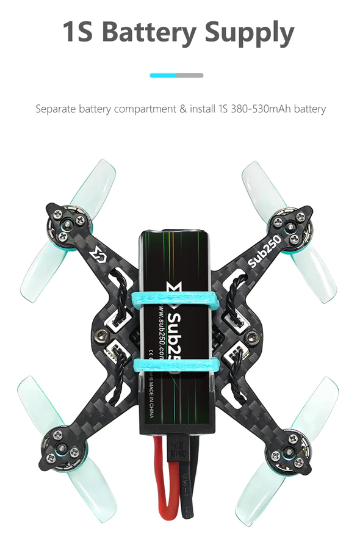

  • With a new 1S 380mAh battery with plenty of power output

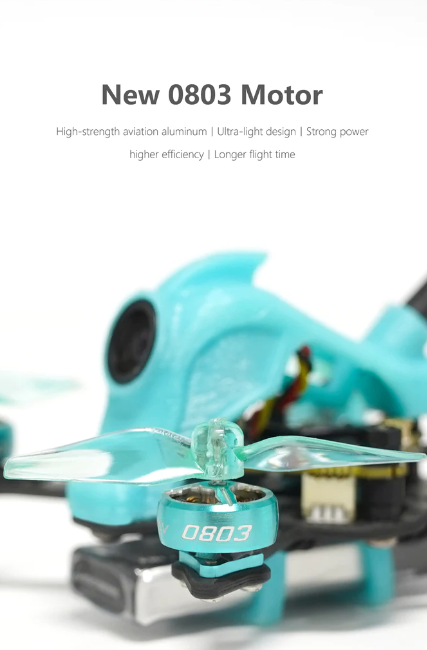

  • The latest light 0803 - 19000KV motor is matched with 40 mm-2 propellers proving maximum power and efficiency

  • It is quiet, like a dragonfly， suitable for both indoors and outdoors.

  • Suitable for both freestyle and racing.

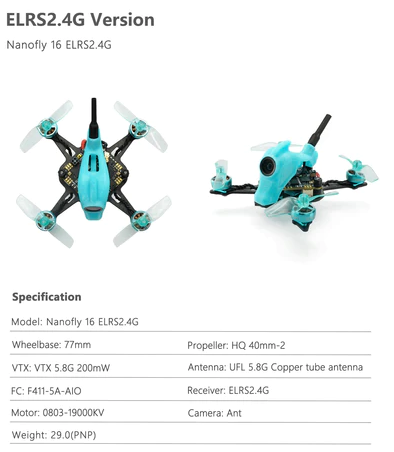

Specifications：




  • Brand Name: Sub250

  •  Model: Nanofly16

  • Frame: NF16

  • Wheelbase size: 77mm

  • Arm thickness: 1.5mm

  • Motor: M1 0803-19000KV

  • Weight：28.0g (ELRS)

  • Camera: Ant

  • MCU：STM32F411

  • IMU： ICM20689(SPI)

  • ESC: BLheli_S 4IN1 5A ESC

  • VTX: VTX 5.8G 250mW

  • Propeller: HQ 40mm-2

  • OSD：BetaFlight OSD w/AT7456E chip

  • Antenna: UFL 5.8G stick VTX antenna

  • Flight Controller: F411-1S AIO/250mW/ELRS

  • Receiver Version: ELRS 2.4G \ TBS 915 Mhz

  • Battery: GNB 380mAh 1S 60C Lipo HV Battery 軽量タイプ 6個セット GNB27

    (Not include)

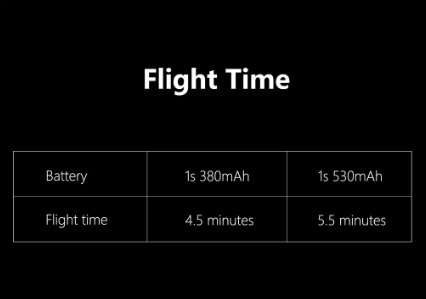

  • Flight Time：4 minutes and 45 seconds flight time with Sub250 latest 1S 380 mAh!





Package Includes:




  • 1 x Nanofly16

  • 4 x HQ 40mm-2 propellers

  • 1 x 3D printed battery holder

  • 1 x Phillips-head screwdriver

  • 1 x 1.5 mm screwdriver


  • 4  x  M1.4*3 Phillips screws




  • 3  x  M2*2 nylon nuts
