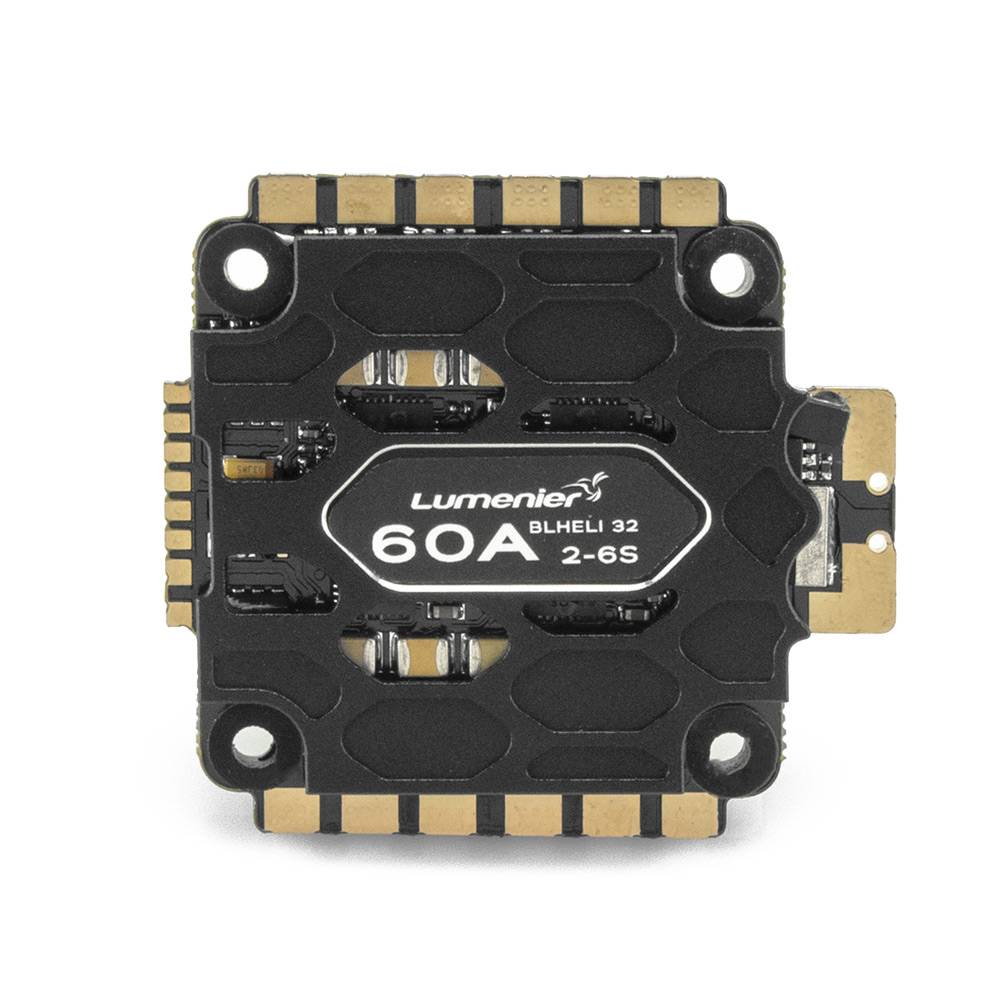

Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
¥ 16,800 税込
商品コード：
関連カテゴリ
ワンランク上の高性能ESC！
Lumenier Elite PRO 60A 2-6S BLHeli_32 4-in-1 ESCは、最新世代のBLHeli_32ファームウェアの32ビットESCです！
上下デュアルヒートシンク付きで放熱性が大幅に上がりました！
32ビットアーキテクチャにより、ESCは驚異的な速度で動作し、8ビットESCとは比べ物にならないパフォーマンスを発揮します！
このESCは、より高度なフライトコントローラ用のライブテレメトリ接続と電流センサのタブも備えています。
このESCの最大の特徴の1つは、極端な電流をサポートできるヘビーデューティ銅トレースです。
ESC PCBの厚さは2mmで、他のほとんどのPCBはわずか1.5mmです。付属のアルミニウムヒートシンクと多くの銅板を使用することによりドローンにより多くの電力を供給することができます。
Benefits of BLHeli_32 Firmware on 32-bit ESC
32bit processors run faster than 8bit, at which we can expect better performance from the new 32bit ESC’s. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols! (Read about DSHOT) (Read about DSHOT1200)
The 32-bit platform also allows more functionality and features that simply wasn't possible on 8bit ESC's, such as
Programmable PWM frequency
Auto-timing for higher efficiency and reliability
Voltage/Current limiting
Adjustable “Brake on Stop” force
Improve direction change in Bidirectional mode
ESC Telemetry
RGB LED control
Configuring from FC using DShot commands
Note: Not all of these features have been implemented yet, some are still in development.
Features
Latest Gen. firmware using BLHeli_32
Supports DSHOT 1200/600, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection
Dual Heatsinks for improved cooling
Lightweight (27g), including dual-sided heatsink
Adaptive timing, compatible with a wide range of motors and Kv
Synchronous rectification technology adds efficiency, damped light
Powerful regenerative braking / active braking.
2-6s LiPo battery compatible
Run 2x of these 4in1 ESC for an X8 Cinelifter
Specs
Input: 2-6S LiPoly
Constant: 60 Amps
Burst: 100 Amps
Dimensions: 43x46x9mm (includes heatsink)
Mounting holes: 30.5x30.5
Weight: 27g
Downloads
USER MANUAL:
Download the latest BLHeli_32 Configurator here.
Download the BLHeli_32 User Manual here.

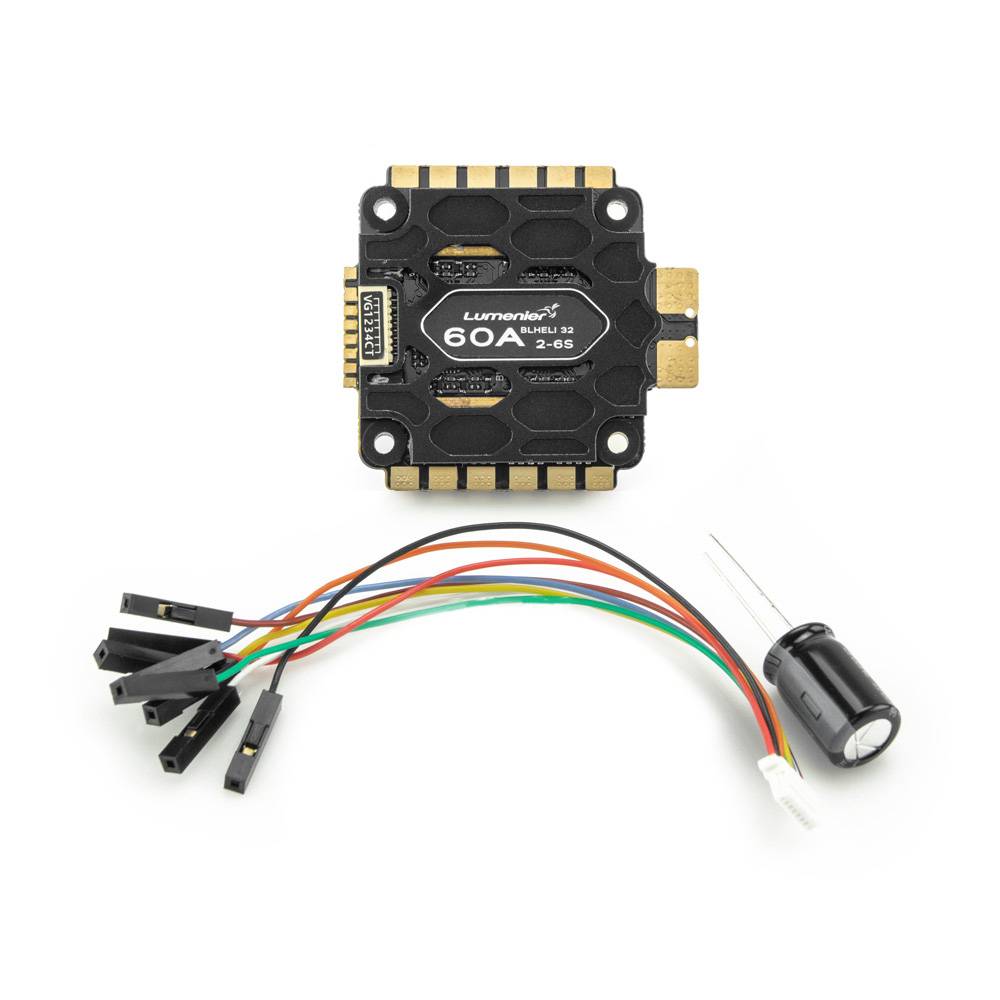

Includes
1 x Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
1 x 35V 470uF Capacitor
1 x 8pin to single connector breakout cable
1 x 8pin to 8pin jst-sh cable
