TBS Crossfire TX Lite ロングレンジモジュール
¥ 23,800 税込
商品コード：
関連カテゴリ
ロングレンジ対応のモジュール！
※各メーカーに対応するアダプター付き
最大3.2Wの出力で10km以上の電波到達を可能にします
Features:
Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing & frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Serial Modem capable of transmitting serial protocols (up & downlink)
RX beacon mode to recover your downed aircraft
Super easy binding and configuration via built-in display
Low latency, 150 Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8ch Diversity Rx, 4ch PPM / SBUS Mini-receiver (4g weight!)
8 or 12ch output via PPM / SBUS / CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 10mW to 2W (local restrictions apply)
Dedicated head-tracking input option for full FPV immersion
Transmitter LED shows link health, OLED display for built in configuration
Short-Range mobile connectivity telemetry output for smartphone apps
Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
CRSF protocol interface to Betaflight, Kiss and Raceflight FCs (lower latency, higher update rate, telemetry support)
Expansion port for future feature support
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link
Technical specifications:
Frequency Bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia)
Input Voltage: 3.5-13V
Power consumption: 1.1W (@ 10mW)-3.2W (@ 2000mW)
Dimensions: 55 x 89 x 15 mm
Weight: 76g
Package includes
TBS Crossfire Transmitter
TBS Crossfire JR Adapter

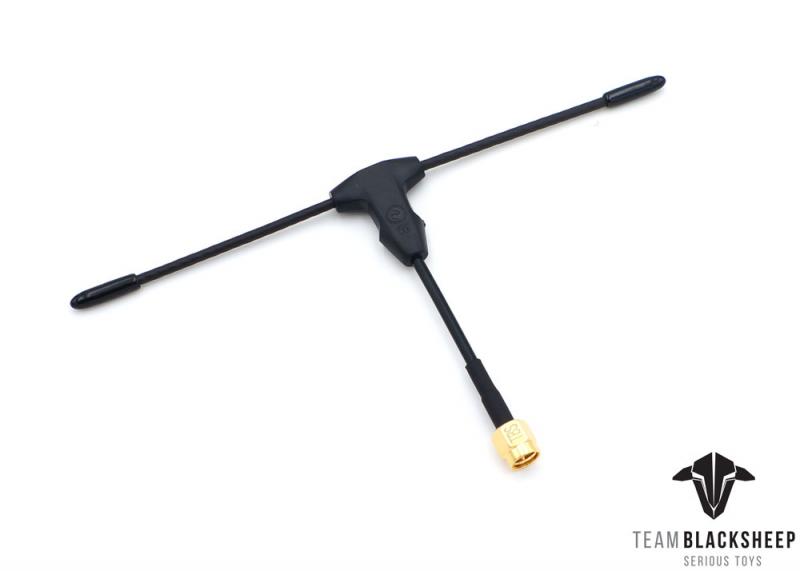

TBS Crossfire Stock Tx Antenna V2
Crossfire Futaba cable
Crossfire Graupner cable
Crossfire PWM Pigtail

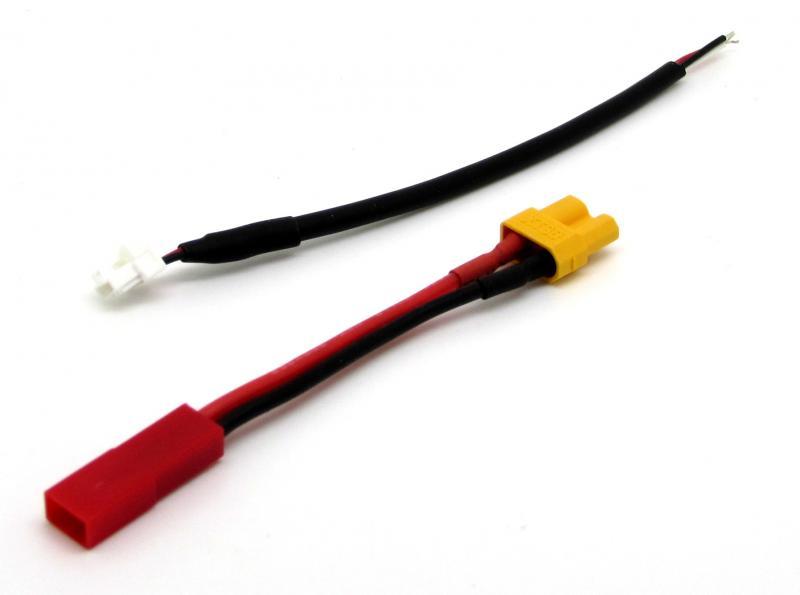

Crossfire JST to XT30 cable
※国内使用での出来ません
