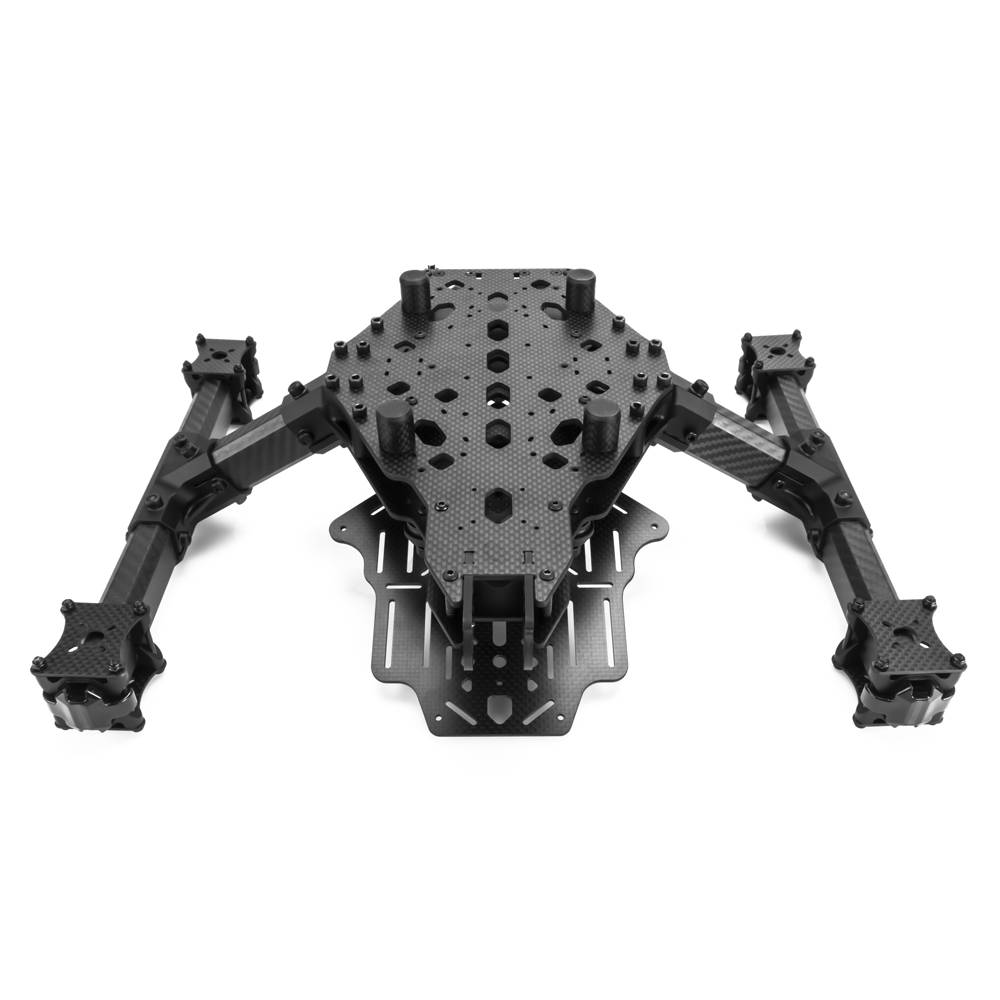

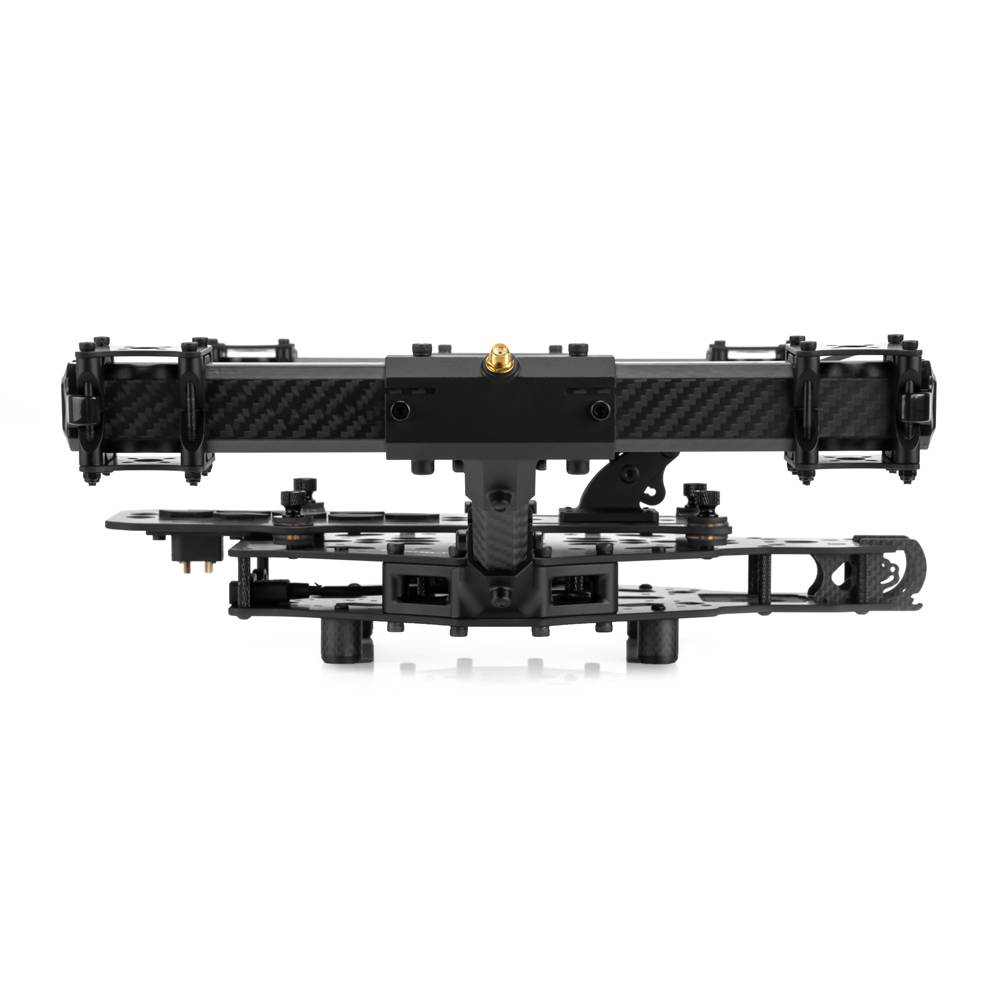

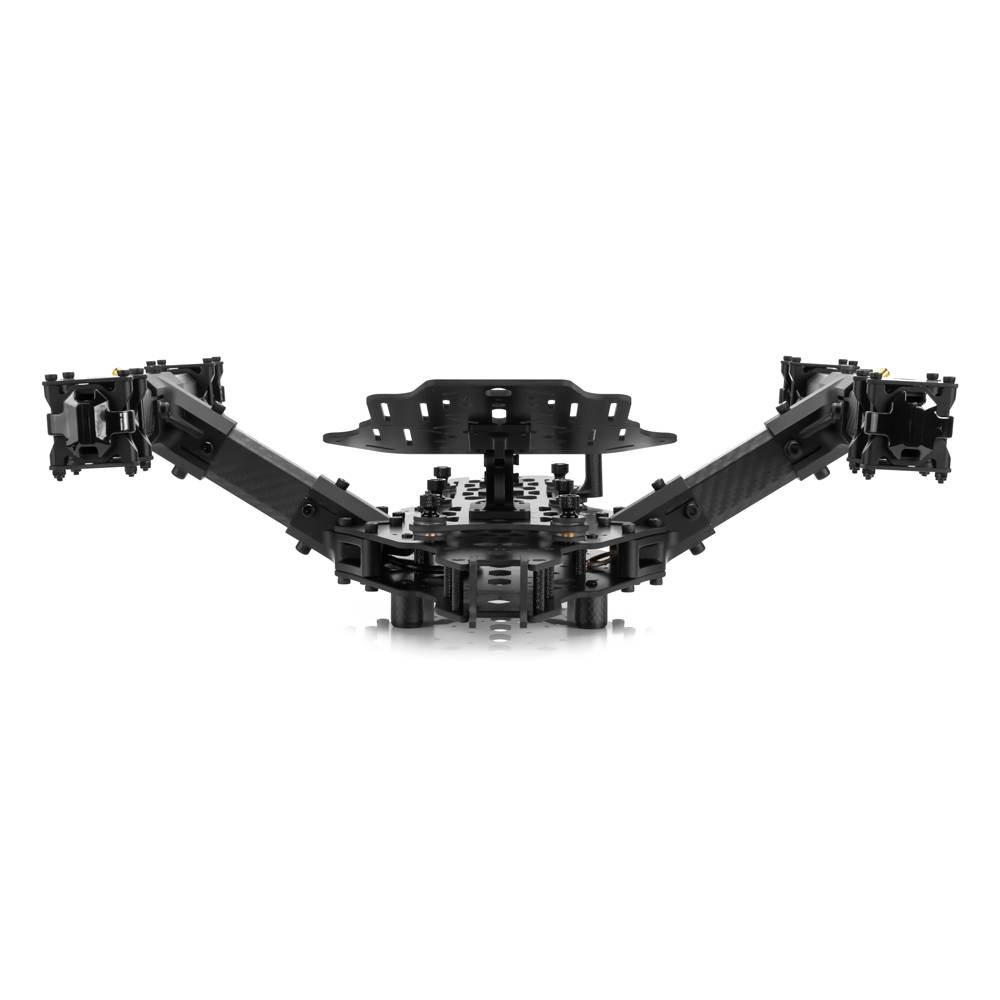

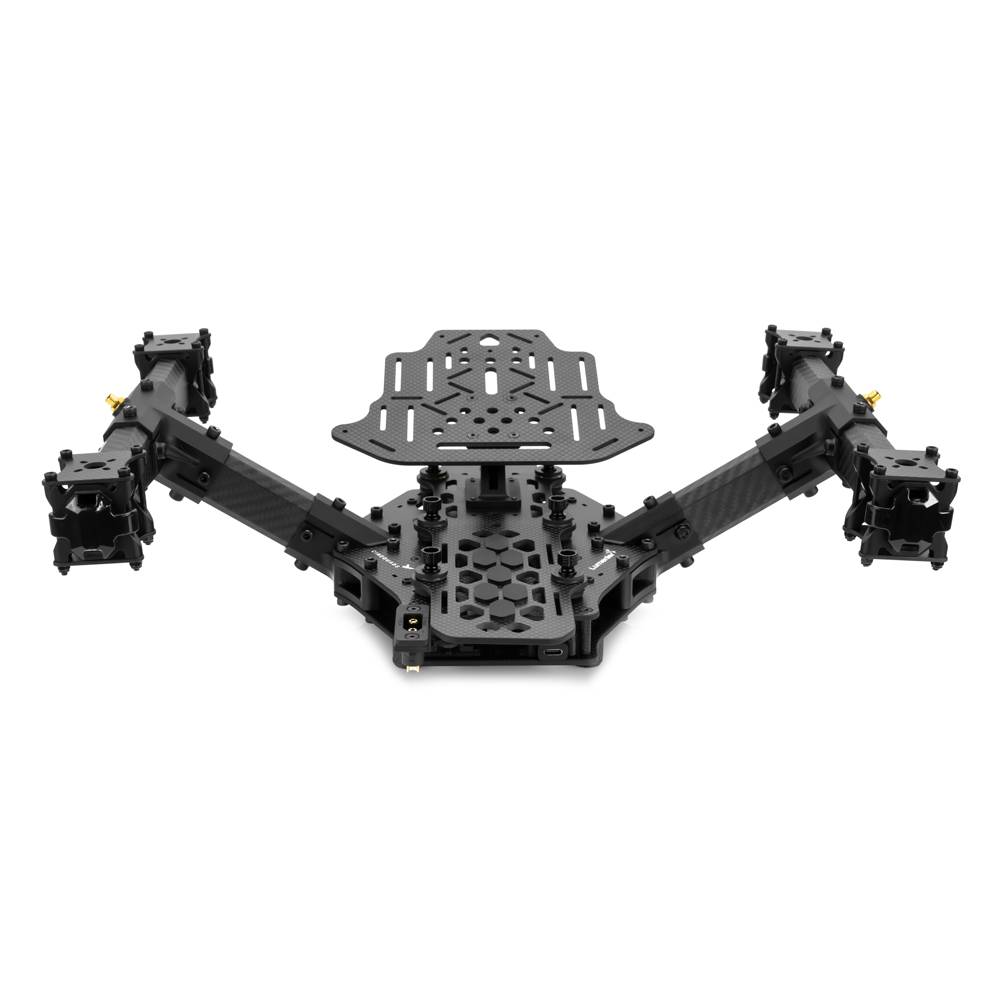

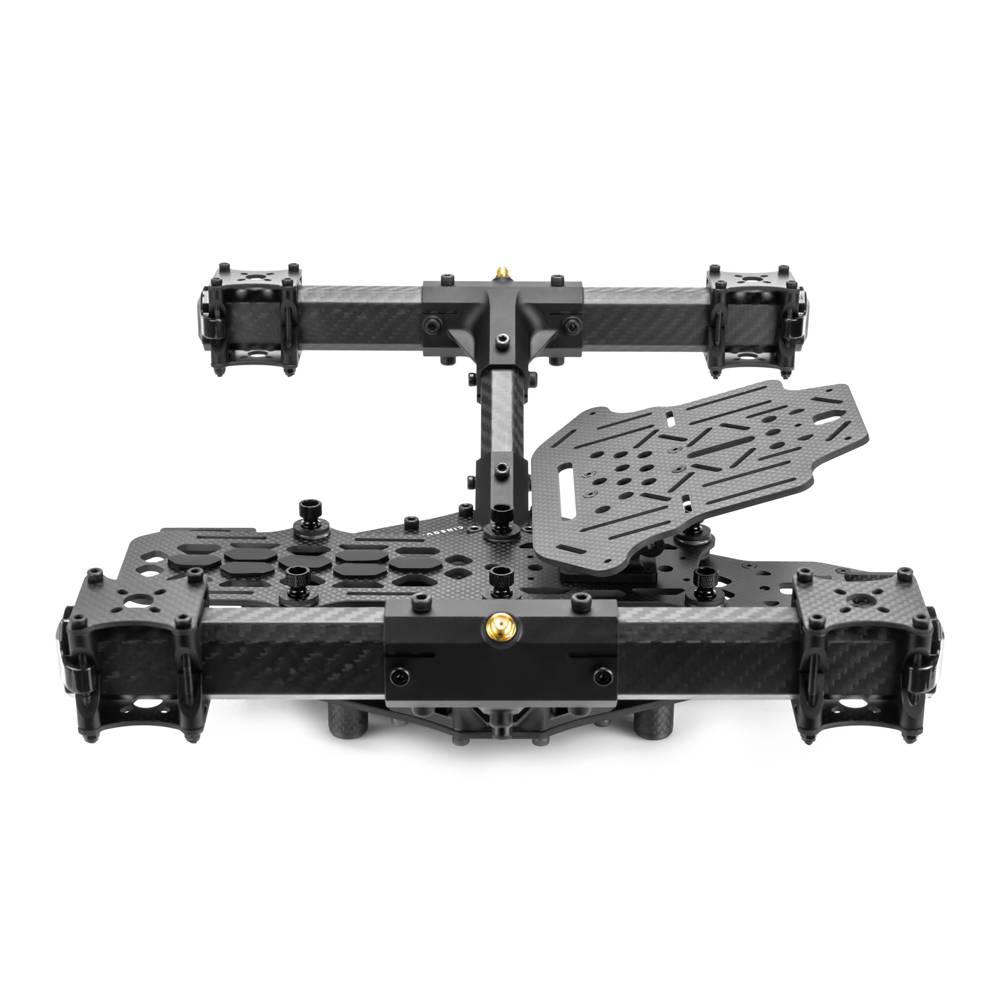

Lumenier QAV-PRO Lifter Cinequads Edition - Frame Kit
¥ 159,800 税込
商品コード：
関連カテゴリ
DJI RONIN RS3などのカメラジンバルを搭載できるシネリフター！
デジタル一眼やビデオカメラなどなどを搭載できる9インチオクトシネマドローンフレームキット！
2.5kgまでの大型カメラを搭載できるドローンです！

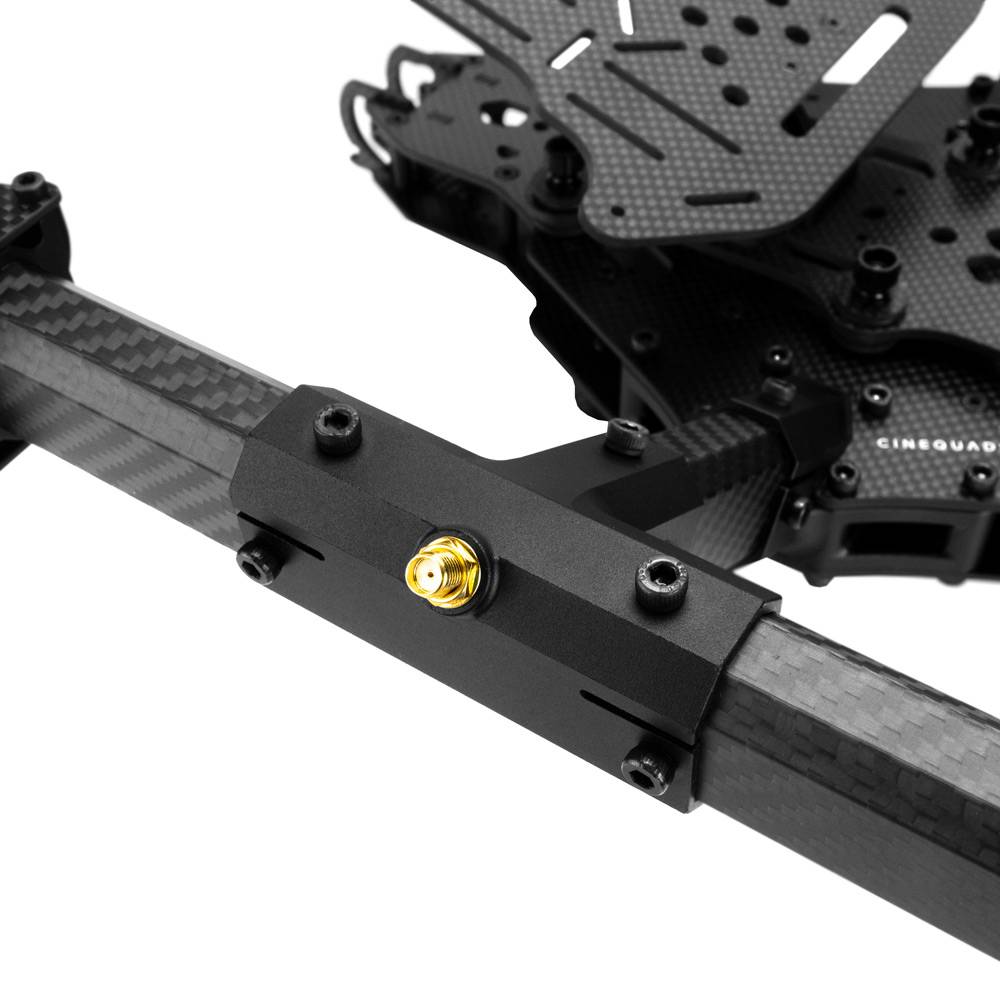

カメラマウントは専用のシリコンダンパー付きで振動を最小限にとどめ、アルミの台座で細かな角度調整が可能です。
低重心でスピードの必要な撮影に最適です！
FPVシステムはDJIのAirユニットを搭載可能
※フレームキットのみですので、モータやFCなどメカ類は別途ご購入下さい
Kit Specifications - Lumenier QAV-PRO Lifter Cinequads Edition
Model: Lumenier QAV-PRO Lifter 9" Cinequads Edition
Dimensions: 470mm (L), 600 (W), 155mm (H) (with 9" propellers)
Weight: Aprox. 1.2Kg (1Kg without camera/isolation plate)
Material: Carbon Fiber and CNC Aluminum
Perfect kit for the DIY drone builder
IMPORTANT NOTES
This is the KIT version of the QAV-PRO Lifter, assembly is required. Electronics and accessories not included.
Recommended (Not Included)
Motors:
Lumenier ZIP V2 3115 Cinematic Motor - 1050KV
Receiver:
TBS Crossfire Diversity Nano RX
Camera/VTX:
DJI Digital HD FPV Air Unit Kit
Propellers:
HQProp MacroQuad 9X4.5X3R Glass Fiber Reinforced Nylon Propeller (CW+CCW)
ESC:
Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
FC:
Lumenier LUX H7 HD Ultimate Flight Controller
Antennas:
TBS Crossfire Immortal T Antenna V2 - Extra Extended
TBS Crossfire Immortal T Antenna V2 - Extended
Lumenier AXII 2 5.8GHz Antenna (LHCP)
FPV Goggles (required to use DJI Air Unit):
DJI HD FPV Goggles 2
Radio Controller:
DJI Remote Controller (Mode 2) or TBS Tango 2 PRO FPV RC Radio Controller
Battery Charger:
iSDT K2 Smart Dual Charger AC200W / DC500W x2
Batteries:
Lumenier 5200mAh 6S 120c CineLifter LiPo Battery or Lumenier 4500mAh 6S 120c CineLifter LiPo Battery
Gimbal:
DJI RS2 or RS3 Gimbal
Cinema Camera:
RED KOMODO 6k Camera + Laowa Lens
Links
Download the QAV-PRO Lifter User Assembly / Build Guide
Includes
1x Lumenier QAV-PRO Lifter Cinequads Edition Drone Kit
