BETAFPV F4 Brushed Flight Controller (2022) Frsky/SFHSS
¥ 5,260 税込
商品コード：
関連カテゴリ
Tiny Whoop用OSD+SPI受信機内蔵のF4フライトコントローラー！

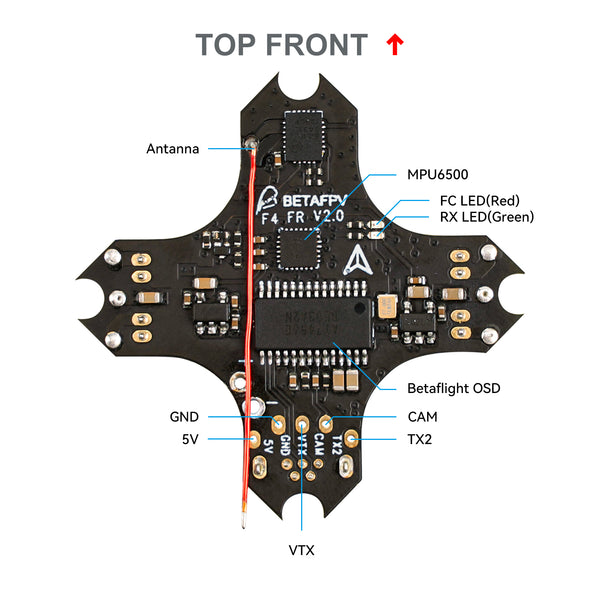

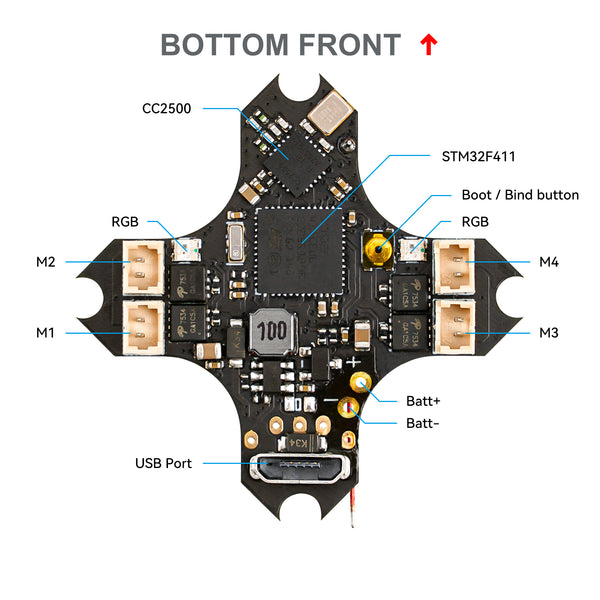

Specification
CPU: STM32F411CEU6
Six-Axis: MPU6500
ESC: All FETs are rated at 30A maximum
Motor: Support 6x15mm/7x16mm/8x20mm/8.5x20mm etc motors. Recommend BETAFPV 7x16mm Brushed Motors (2CW+2CCW)
Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: Betaflight BETAFPVF411RX 4.2.11
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: SPI Frsky D8 (CC2500 chip, adjustable)
Power Cable: 55mm, with BT2.0 Connector
Weight: 3.68g (with Power Cable)
What's the Upgrade
Compared with the previous version F4 Brushed Flight Controller V1.2, now the V2.0 version comes with SPI Frsky D8 receiver that can be compatible with Futaba S-FHSS, Frsky D16 FCC, and Frsky D16 LBT protocol. The power cable applies BT2.0 connector instead of PH2.0, which solves the problem of voltage sag, and the discharge can be more efficient, bringing this board a better performance on function for power and responsiveness. What's more, with the compatibility of BETAFPV BT2.0 series batteries, it is convenient to upgrade in the future. Besides, it supports custom RGB lights on the Betaflight configuratio
RECOMMENDED PARTS LIST
Battery: BT2.0 300mAh 1S Battery
Frame: 65mm Micro Whoop Frame
Props: 31mm 3-Blade
Motors: BETAFPV 7x16mm Brushed Motors (2CW+2CCW)

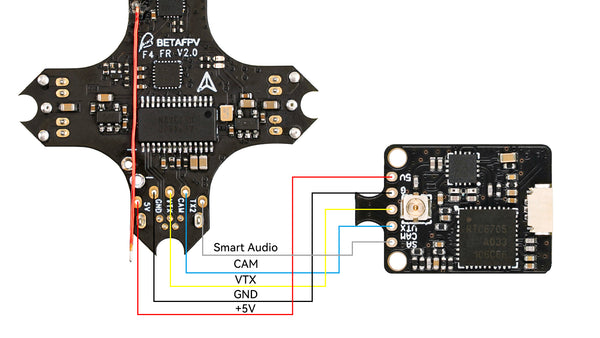

VTX: M03 25-350mW VTX
Recommend drones: Beta65S BNF Micro Whoop Quadcopter

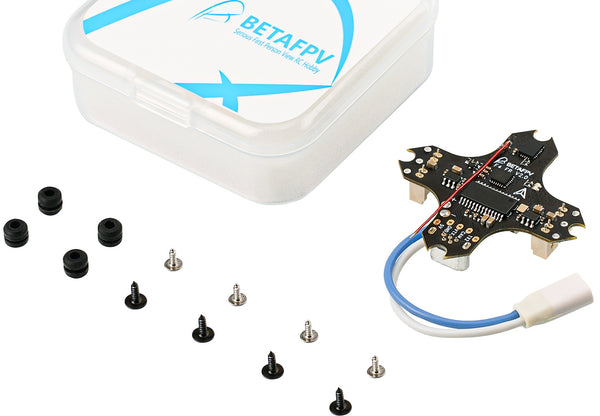

セット内容：
1 x F4 Brushed Flight Controller (BT2.0 Connector)
4 x M1.2x4mm screws
4 x M1.4x5mm screws
4 x Anti-vibration rubber dampers
