RadioMaster TX16S Mark II V4.0 Hall Gimbal Radio Controller 4-in-1 EdgeTX (Mode2)

¥ 38,500 税込

商品コード：

数量

EGGE TXやV4.0ジンバルを搭載したミドルエンドモデル！

V4.0ジンバルは調整がとても簡単でリニアでスムーズな操作感！

カラー液晶タッチパネルで使いやすくなりました！

グリップ部分は本革を使用し、握った感覚もしっくりきます！

オープンソースマルチプロトコル2.4GHzのデジタルプロポ！

16chで4-in-1モジュール搭載！

Frsky/Flysky/Hubsan/SFHSSなどが互換使用できます！



飛行機/ヘリのモデル切り替えやスロットルカーブ/ピッチカーブなど設定が可能！



Features:

Improved internal circuity and optimized power supply.

New charge circuitry with integrated reverse-polarity protection.

Optimized charge IC now allows up to 2.2A internal USB-C charge current.

Rear mounted audio jack provided headphone output.

V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).

Optional high/low rear grips included for improved ergonomics.

Improved S1/S2 knobs with clear centre-detents.

Redesigned battery cover for improved battery access.

Retooled body shell with improved fit and finish.

Available ELRS and 4in1 versions.







Specification:

Size: 287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHz



Transmitter module:

Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)；

Option 2: Internal ELRS (SX1280)



Transmitting power:

Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent);

Internal ELRS : Max 250mw (transmitting power is adjustable)

Antenna gain: 2db (transmit power adjustable)

Working current: 400mA

Working voltage: 6.6-8.4v DC

Remote control distance:> 2km @ 22dbm

Radio firmware: EdgeTX

Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)

Channels: Up to 16 channels (depending on the receiver)

Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272

Gimbal: Option 1: V4.0 Hall sensor with Aluminium facia; Option 2: AG01 CNC Hall sensor

Module Bay: JR compatible module bay

Upgrade method: Supports USB-C online / SD card offline upgrade

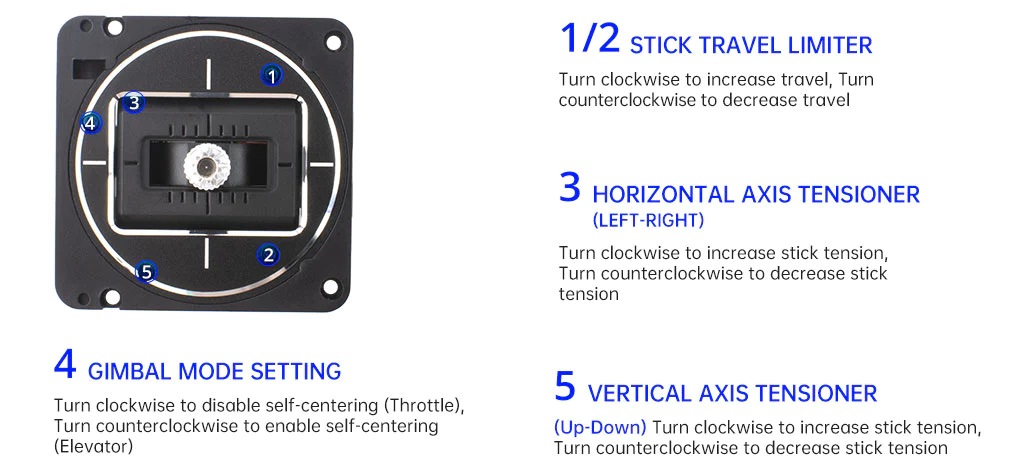

V4.0 HALL GIMBALS

Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.



Improved internal circuity and optimized power supply.

New charge circuitry with integrated reverse-polarity protection.

Optimized charge IC now allows up to 2.2A internal USB-C charge current.

Rear mounted audio jack provided headphone output.

Optional high/low rear grips included for improved ergonomics.

Improved S1/S2 knobs with clear centre-detents.

Redesigned battery cover for improved battery access.

Retooled body shell with improved fit and finish.
