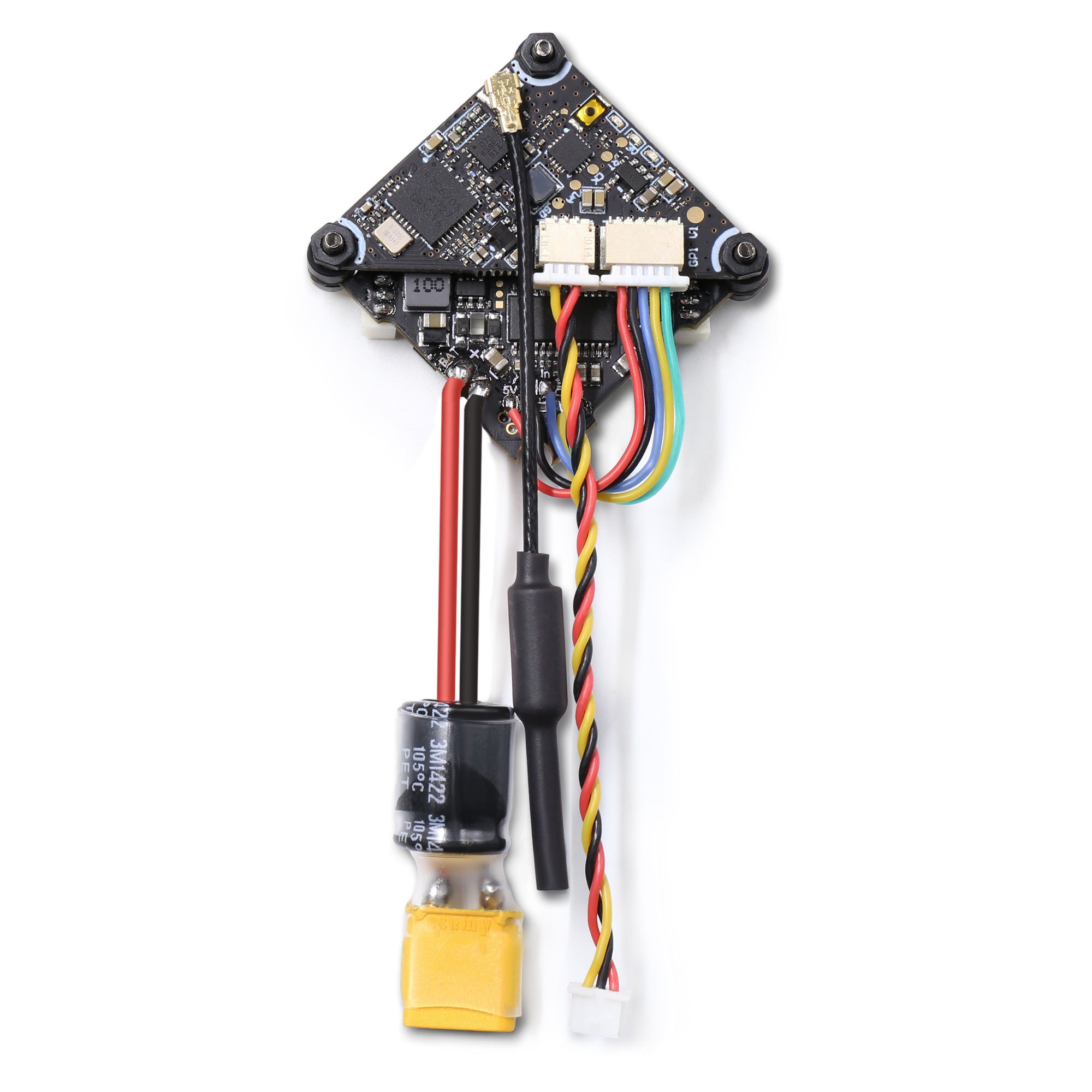

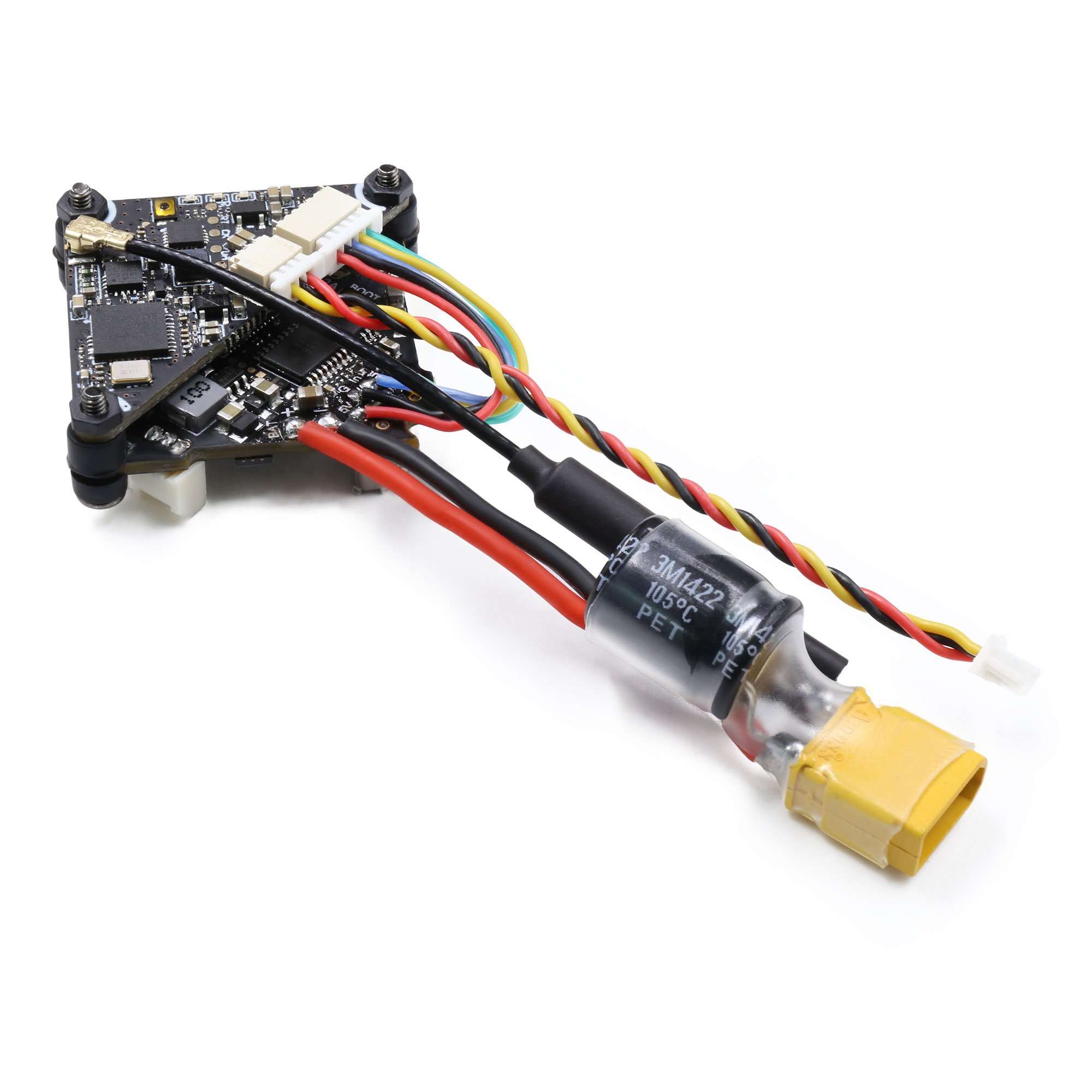

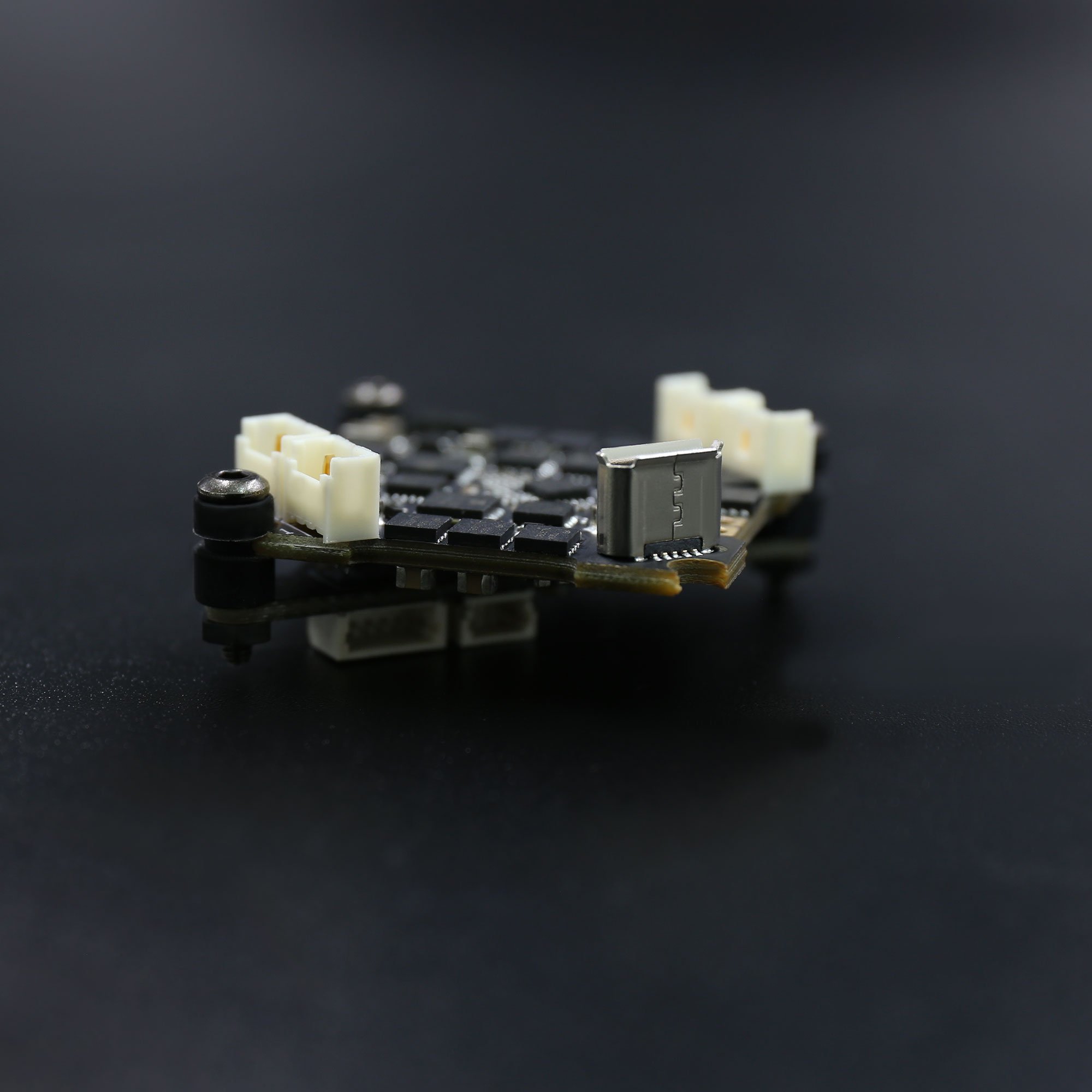

GEPRC GEP-STABLE 12A Whoop Stack
¥ 9,950 税込
商品コード：
関連カテゴリ
VTXもセットになったSTABLE！
2~4セル対応のTinyサイズのオールインワンFC！
Tiny Whoopタイプに最適な12AのESC！
75〜85サイズののフレームに対応します
Specifications:
Model Name:GEP-12A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: MATEKF411
Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
Installing Hole: 25.5×25.5mm, M2
ESC MCU: 8BB21F16G
Continuous current: 12A
Input voltage:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Receiver Support:
VTX Specifications:
Model Name:GEP-VTX200-Whoop
Item name: 25~200mw 48CH VTX FPV Transmitter
Output power: Pit/25/100/200mw switchable
Channels: 48CH
Input voltage: 4.5V – 5.3V
Current consumption: 300mA(type)
Antenna: RG178 antenna U.FL interface
Frequency: 5.8GHz 5 bands 48 channels With Raceband
Video Format:PAL/NTSC
Control protocol：IRC Tramp
Weight: 2g without antenna

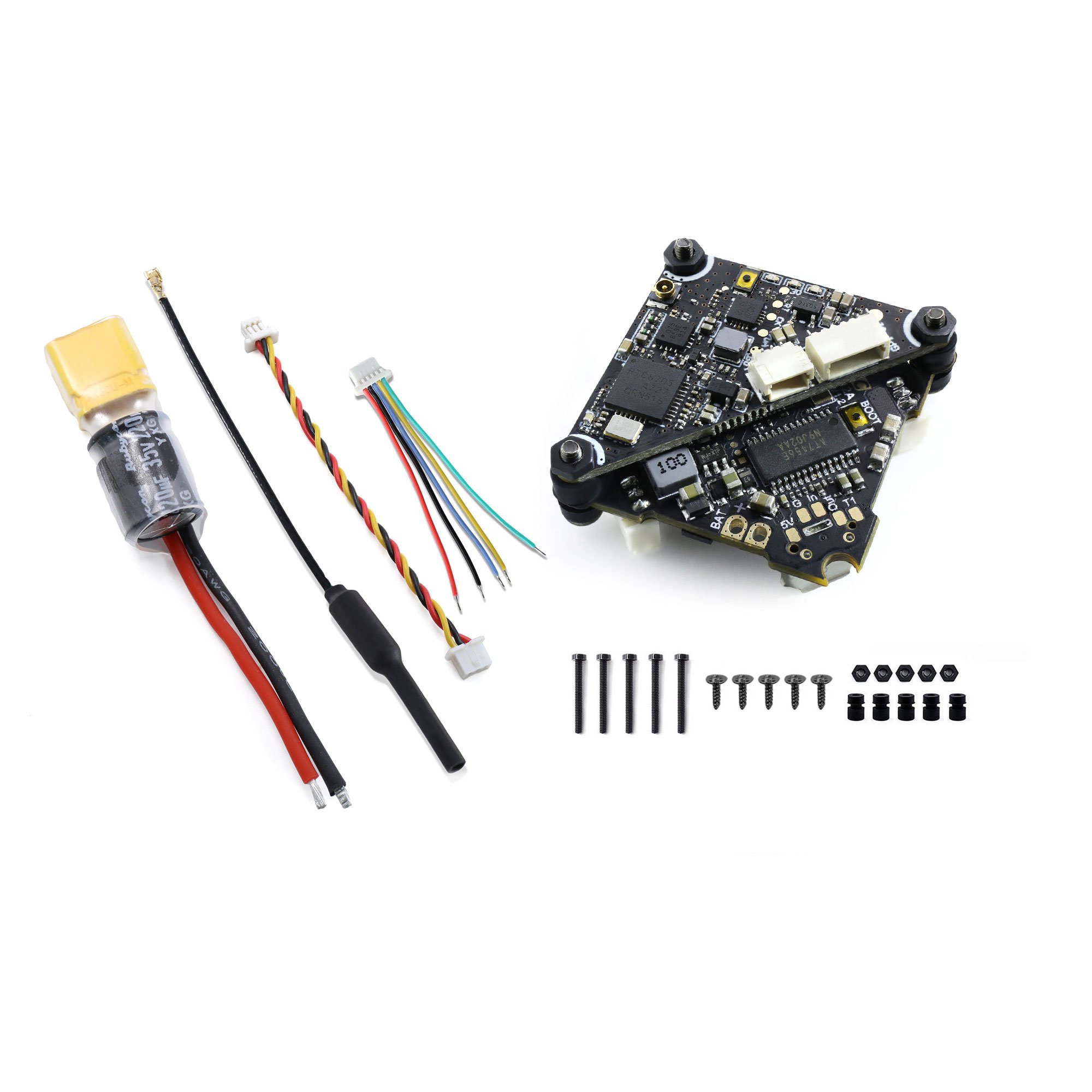

Include：
– 1 x GEP-12A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
