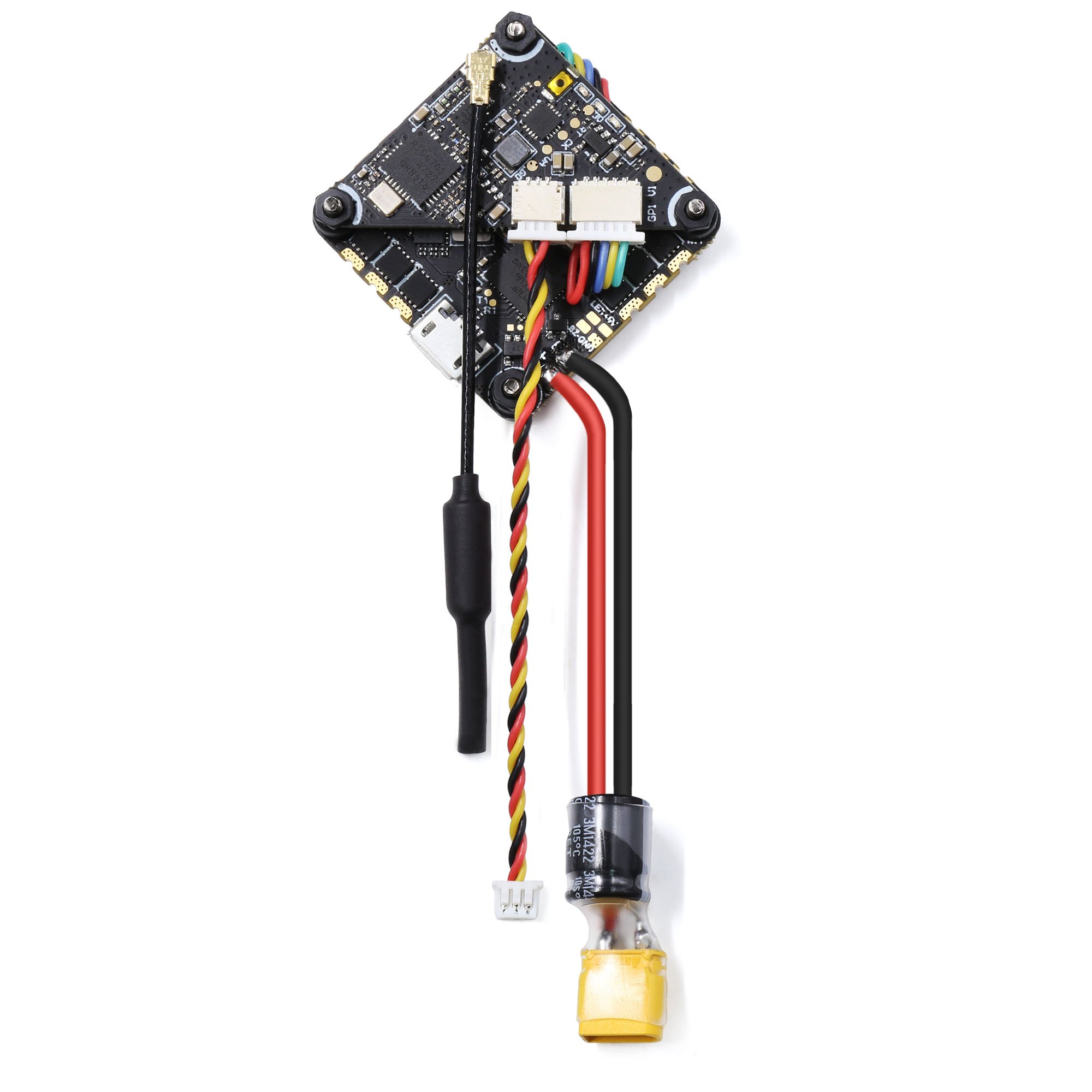

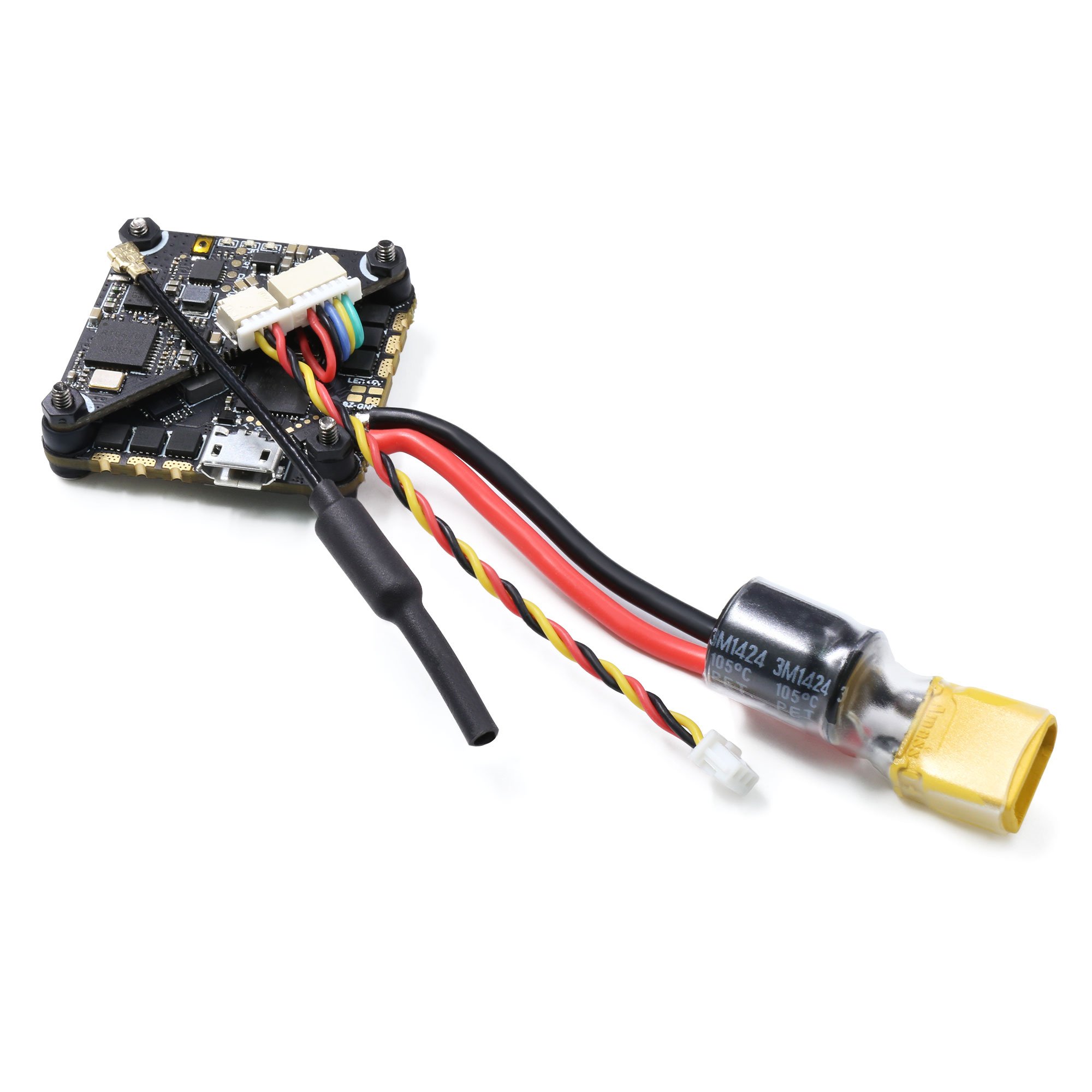

GEPRC STABLE 20A Toothpick Stack AIO
¥ 12,200 税込
商品コード：
関連カテゴリ
VTXもセットになったSTABLE！
2~4セル対応のTinyサイズのオールインワンFC！
Toothpickに最適な20AのESC！
15XXサイズのモーターまで対応します
XT30コネクター付属
Specifications:
Model Name:GEP-20A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
FC Firmware target:MATEKF411
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
Current Monitoring : Support
Betaflight OSD : Support
External Buzzer : Support
LED : Support
USB Port: MicroUSB
BEC Output: 5V@1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 20A
Peak current: 30A
Input voltage:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Size: 32x32mm board,26.5mm mounting holes (M2)
Installing Hole: 26.5×26.5mm, M2
Receiver Support:
VTX Specifications:
Model Name:GEP-VTX200-Whoop
Item name: 25~200mw 48CH VTX FPV Transmitter
Output power: Pit/25/100/200mw switchable
Channels: 48CH
Input voltage: 4.5V – 5.3V
Current consumption: 300mA(type)
Antenna: RG178 antenna U.FL interface
Frequency: 5.8GHz 5 bands 48 channels With Raceband
Video Format:PAL/NTSC
Control protocol：IRC Tramp
Weight: 2g without antenna

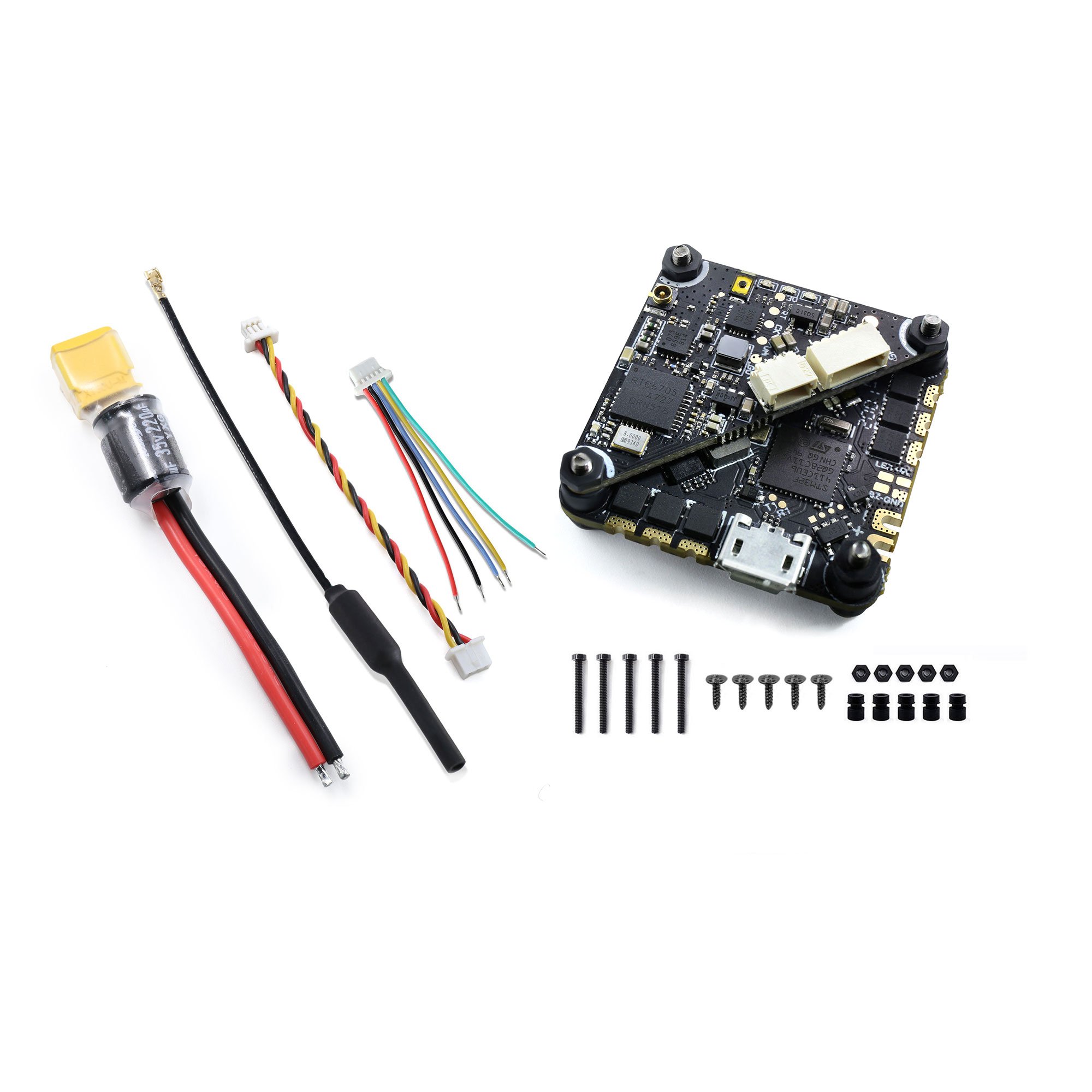

Include：
– 1 x GEP-20A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
