GEP-F411-35A AIO (F411 FC 35A 2-6S 8bits BLS ESC 25.5mm)
¥ 10,950 税込
商品コード：
関連カテゴリ
2~6セル対応のTinyサイズのオールインワンFC！
Toothpickに最適な35AのESC！
2004サイズのモーターまで対応します
Specification:
Model: GEP-F411-35A AIO
MCU: STM32F411
IMU: BMI270/accelerometer(SPI)
Target: GEPRC_F411_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: T1 R1 / T2 R2
Beep: YES
LED: YES
USB Connector: micro USB
ESC MCU: 8BB21F16G
Intergrated LC Filter
Continue Current: 35A
Burst Current: 40A(10s)
Input Voltage: 2~6S (LIPO Battery)
ESC Protocol: Dshot300/600,Oneshot,Multishot
Blackbox:16Mb
ESC Target: G_H_30 BLS
Size: 32x32mm Board
Mount Holes: 25.5×25.5mm
Weight: 8.8g
Features:
BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
Mainstream STM32F411 FC and runs stably.
BMI270 gyroscope with 8K sampling frequency.
Rich external ports, it supports buzzer and LED light function.
25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

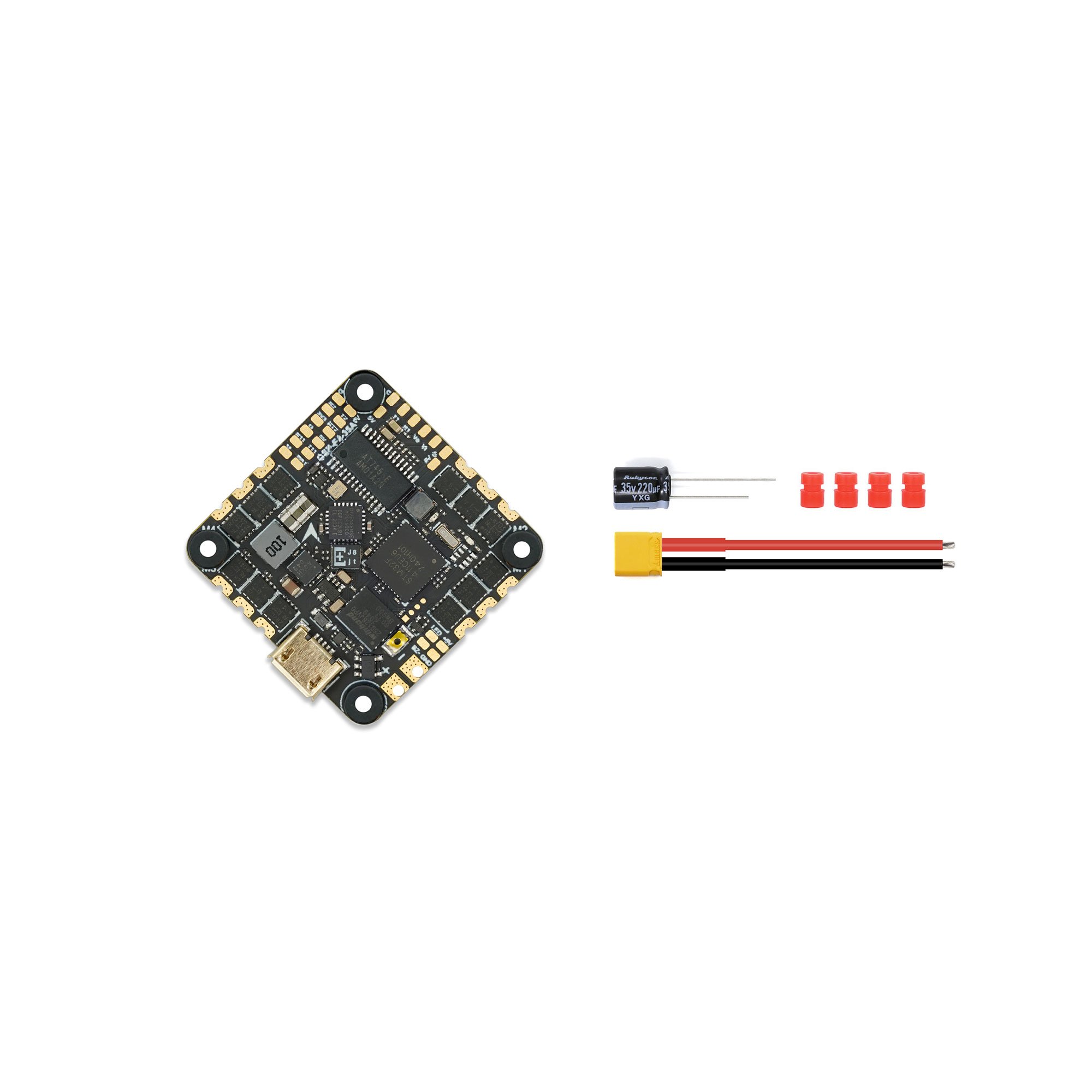

Include:
1 x GEP-F4-35A-AIO
1 x XT30-7CM-18AWG cables
1 x 35V220UF capacitance
8 x M2*6.5mm Damping rings
