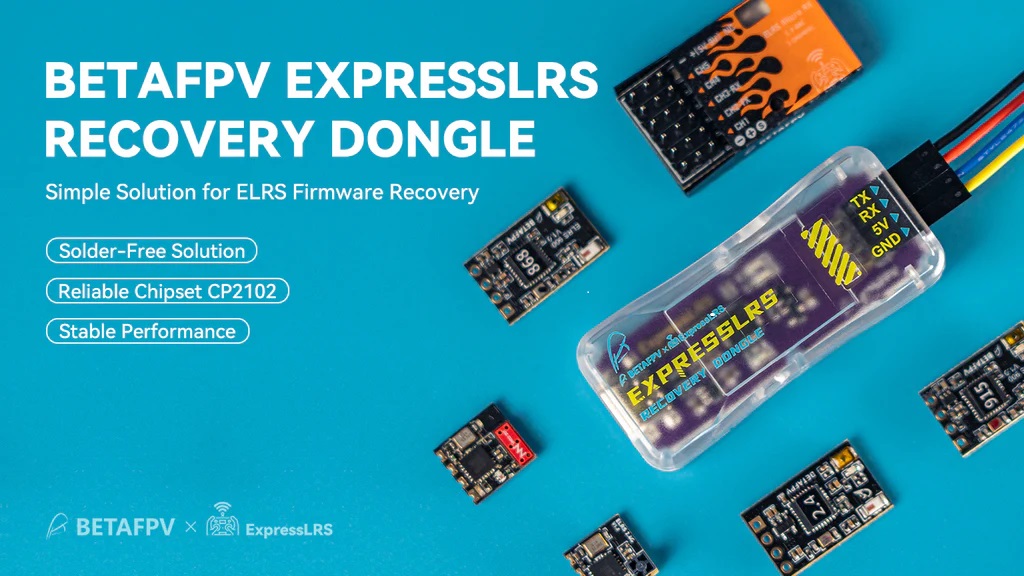

BETAFPV ExpressLRS Recovery Dongle
¥ 1,200 税込
商品コード：
関連カテゴリ
BETAFPV ExpressLRS Recovery DongleはFCを介さずに直接PCから書き込みができます！
これにより、ExpressLRSの受信機を半田付けすることなく設定可能です！
Bullet Point
Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.
Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.
Specification
USB Interface: Type-C USB male connector
Operating Voltage: 5V.
Logic Voltage: 5V.
3.3V power supply output current: 400mA

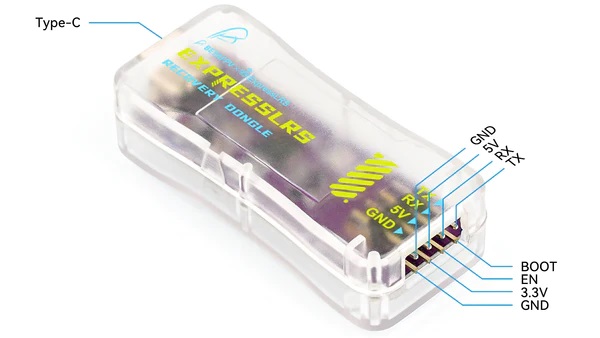

Pins output method: 2*4P-2.54mm pin header
Serial baud rate: Up to 921600bps.
Support USB1.1, USB2.0
USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC
使用方法
