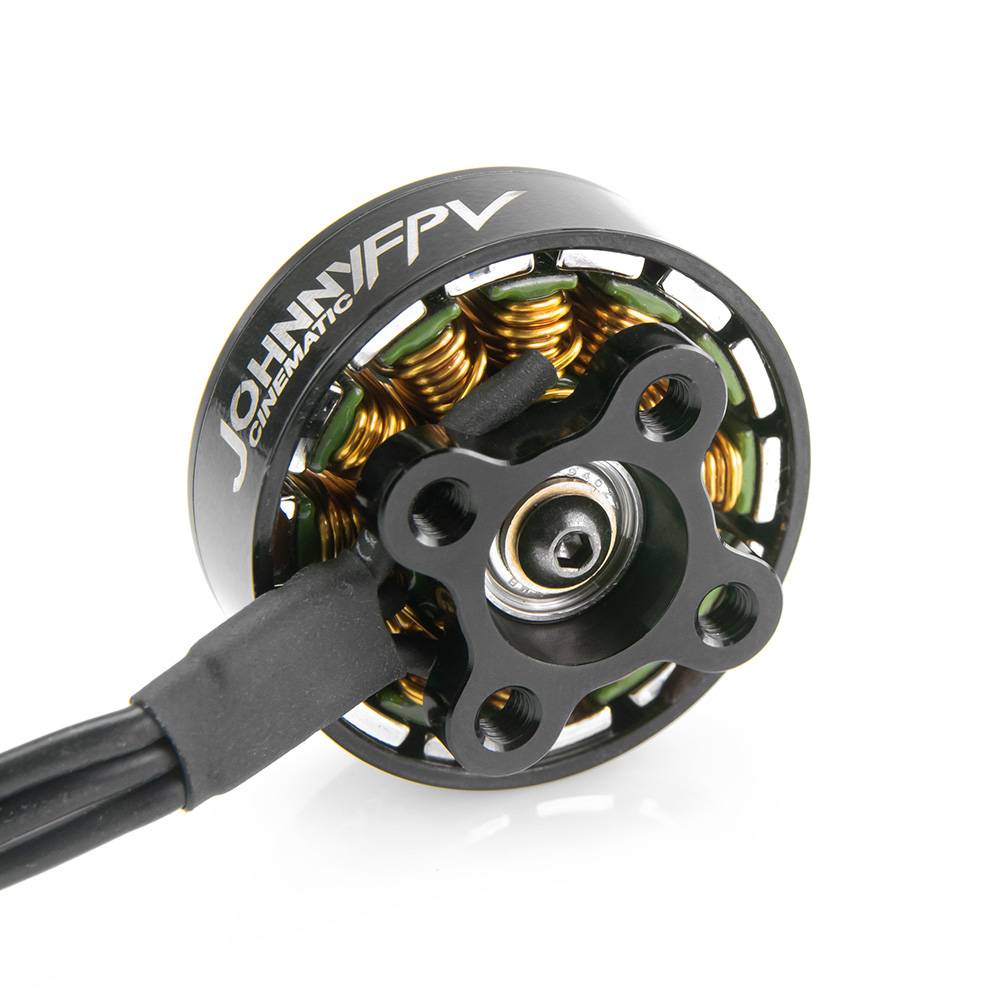

Lumenier 2306 JohnnyFPV Cinematic V2 Motor (1750KV)
¥ 3,650 税込
商品コード：
関連カテゴリ
フリースタイルにもシネマティックにも使用できる高精度のブラシレスモーター！
5インチの6セルに最適なkv値です
Features
Curved N52SH magnets for increased power
Minimal base design for additional weight savings
Single piece 4mm steel shaft with a screw termination in the base for easy maintenance
Anti-slip grip deck for the propeller machined into the aluminum bell
Stylish two-tone anodization

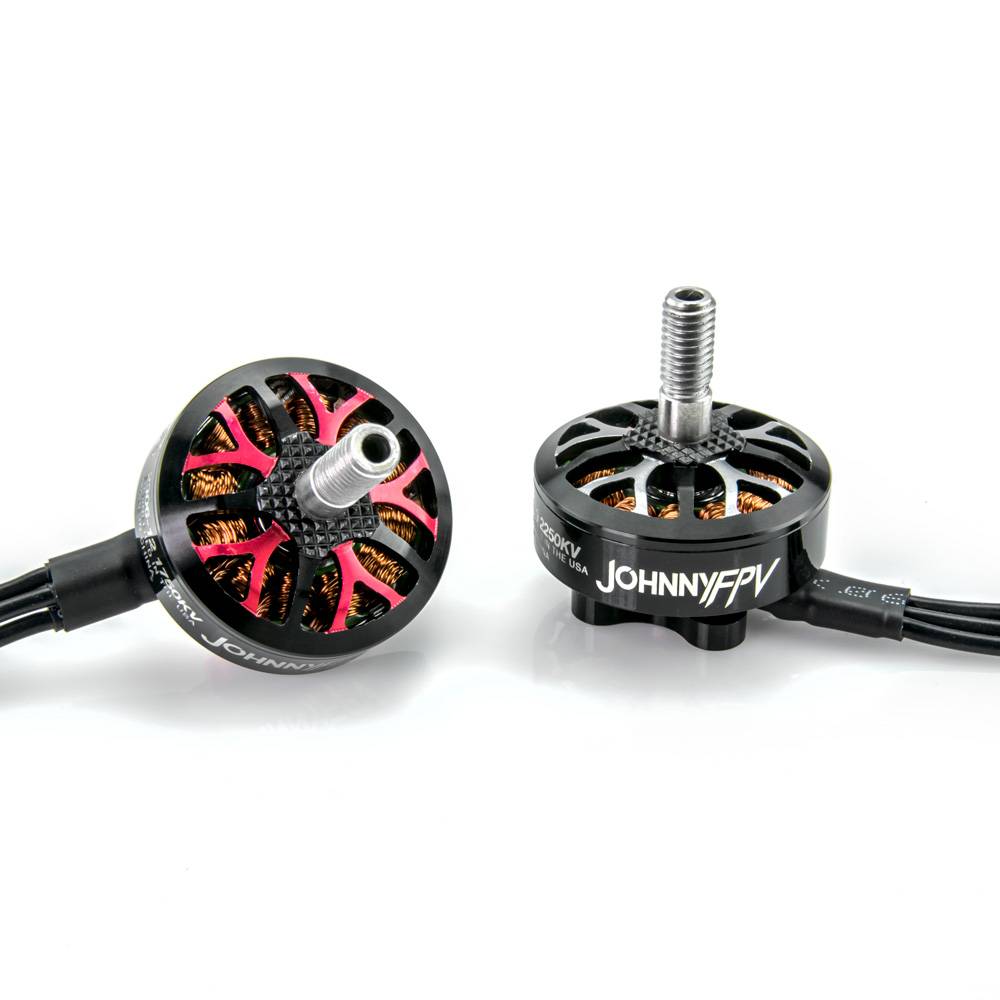

3 colors and 3 KV's to perfectly match your flying style and setup
Red 1750KV, Blue 2250KV, Black 2550KV
Long 145mm motor wires for ultra-clean setups with a 4in1 ESC even on 6" build
In addition to all these features, the Johnny 2306 motor uses high-quality parts and precision Lumenier manufacturing. High-grade aluminum, N52SH magnets, smooth 9x4x4 steel bearings, and tight QC ensure you get the very best out of every motor.
Specifications
KV: 1750(Red 6S)
Configuration: 12N14P
Termination: D (Delta)
Stator Diameter: 23mm
Stator Height: 6mm
Magnets: N52SH Curved
Bearing Size: 9x4x4mm
Shaft: 5mm Aluminum
Inner Shaft Diameter: 4mm
Weight: 28g (short wires)
Motor Wire Length: 145mm
Motor Connection: Bare Wire

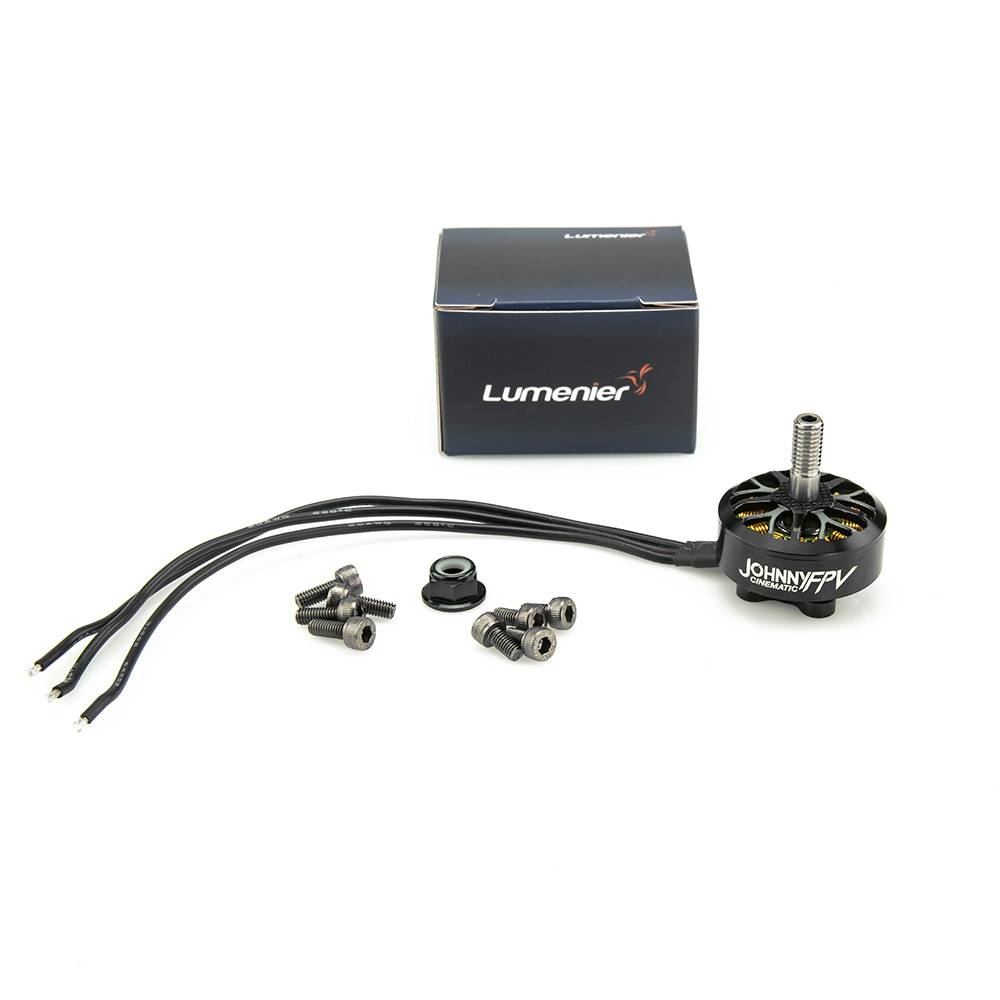

Includes
1x Lumenier 2306-8 JohnnyFPV Cinematic V2 Motor
1x Lumenier M5 Black Aluminum Lock Nut (CW)
4x M3x6 Socket Cap Screws
4x M3x8 Socket Cap Screws
