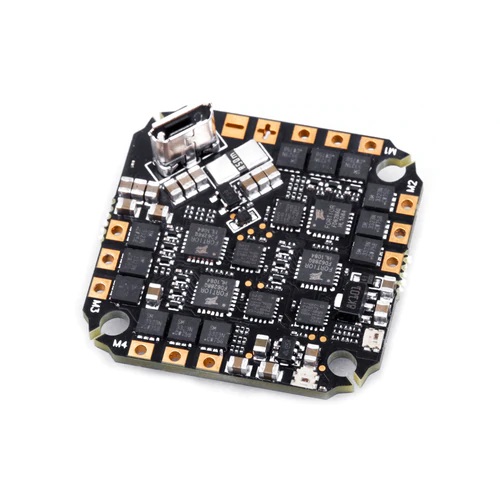

Flywoo GOKU GN 405S 20A AIO (MPU6000 ) 25.5mm X 25.5mm
¥ 11,000 税込
商品コード：
関連カテゴリ
マイクロサイズやWhoopに最適な25.5mmサイズのF405S+20A AIOフライトコントローラー！
20Aで2〜4インチのサイズまで対応
※85-95サイズに対応
FLYWOO new top GOKU series AIO are finally here! GOKU GN405 20A FC is an economical and durable all-in-one AIO , which can meet most your FPV needs.
Use powerful F405 chip , integrate 5V BEC, barometer, black box, WS2812LED, support 6 complete hardware serial ports, I2C and other functions are all open.
Features
F405 BGA MCU
Barometer
5V BEC
Black Box
20A 8Bit ESC
6 UARTS
current sensor
LED
Specifications
MCU: STM32F405 BGA 8bit processor
IMU: MPU6000 (SPI)
Barometer: BMP280
Onboard LED：WS2812*4
6 hardware UARTS (UART1,2,3,4,5,6)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 8.5g
Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2-6S Lipo
Continuous Current: 20A
Firmware: BLHELI_S
Q&A :
1、 Betaflight Firmware target: FLYWOOF405S_AIO
2、GOKU GN405S 20A AIO Wiring Diagram : ( LINK )
