GEP-GR1206-6000kv 2-4S Brushless Motor
¥ 1,980 税込
商品コード：
関連カテゴリ
100~150サイズのドローン用ブラシレスモーター！
高精度で8.3gと軽量な1206サイズのモーターです
耐久性に優れたモーターで180度の高温までOK
2〜4セル用
Specifications：
Item name: GEP-GR1206
KV: 6000KV
Configuration:9N12P
Stator Diamter:12mm
Stator Length:6mm
Shaft Diameter:2mm
Motor (Dimension(Dia.*Len)):Φ8*17mm
of Cells(Lipo):2~4S
Internal Resistance:120mΩ
Max Current(180S):15A
Rotor: N52H arc magnets
Bearings:NMB 520
Base casing: Al 7075
Wire AWG: 28AWG
Weight(g):8.3g
Features:
The new 1206 brushless motor has a stronger power output
Lightweight base design, no change in weight reduction intensity
The upper cover is specially designed for efficient heat dissipation and strong structure

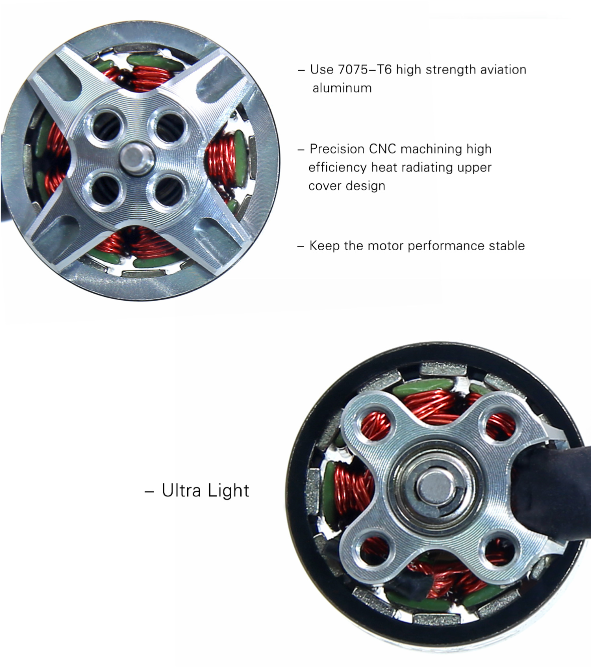

Precision CNC processing, aviation aluminum 7075 aluminum, high precision, high strength

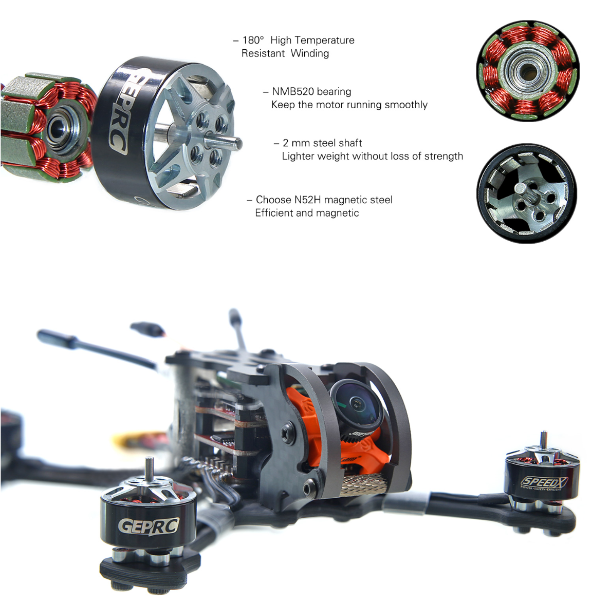

N52H magnet is adopted to ensure torque and high temperature resistance without losing magnetism
NMB520 bearing of Japan ensures low vibration and low noise when the motor runs at high speed
Excellent heat dissipation structure design and 20% reduction of temperature of the same type of motor
180 ℃high temperature resistant enameled wire
Reliable magnetic circuit optimization, smoother start

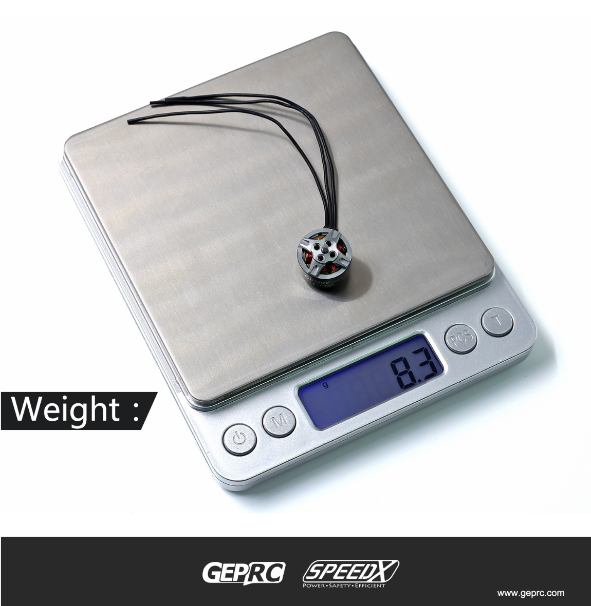

The weight is only 8.3g (including wire)
