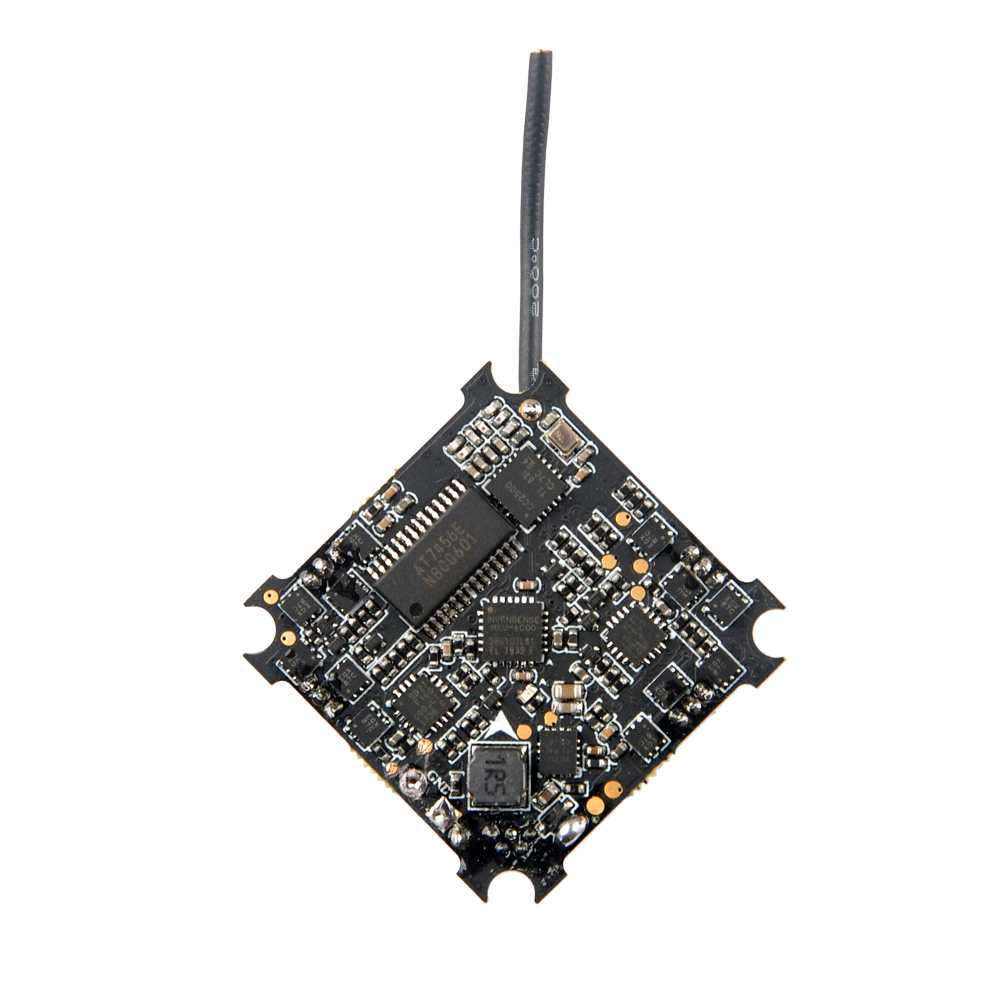

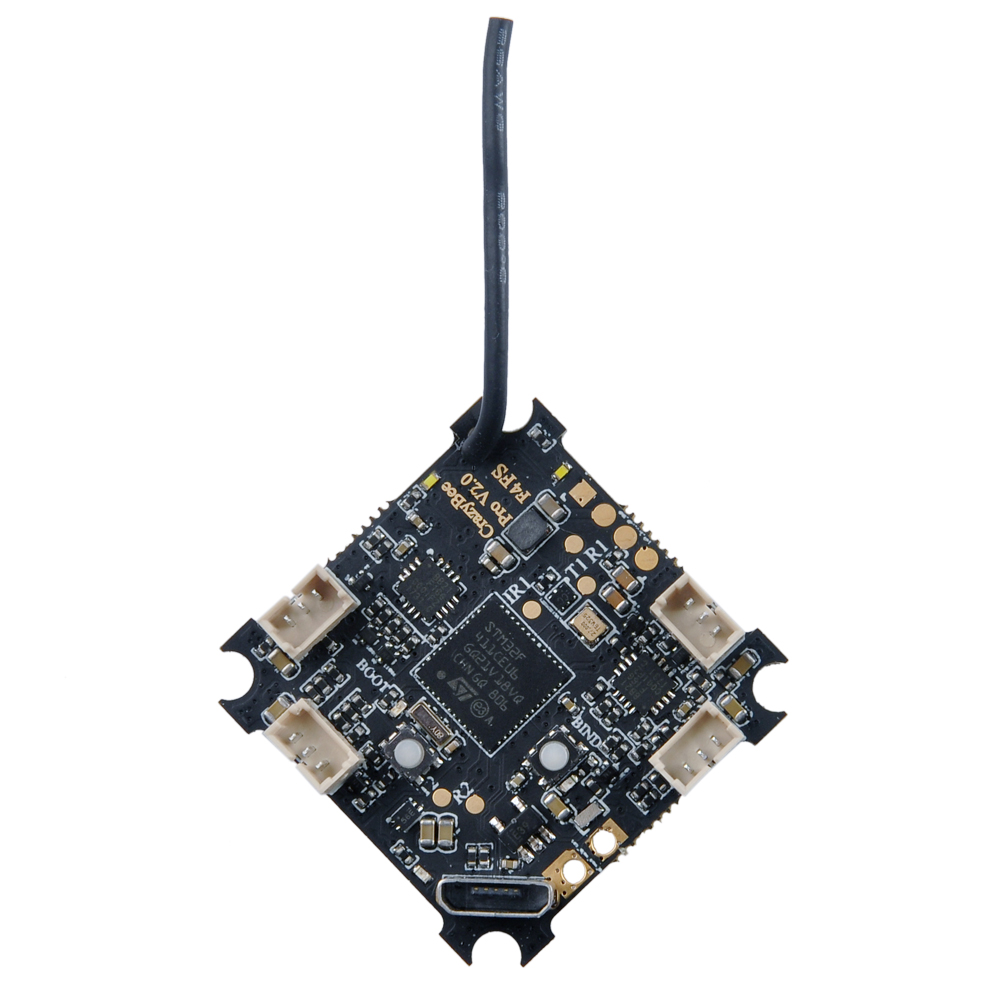

Crazybee F4 Pro V2.0 flight controller 1-2S SFHSS for Mobula7 HD
¥ 7,980 税込
商品コード：
関連カテゴリ
1〜3セルまで対応するF4オールインワンFC！
フタバSFHSS対応の受信機内蔵！
BETA75Xや75PRO2などを3セルで飛ばすことが可能です
Specification:
Brand Name: Happymodel
Item Name: Crazybee F4 Pro V2 Flight Controller
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-9V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Receiver ( Diffirent version having diffirent receiver,
without receiver version doesn't have rx)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
Onboard 5A 4 In 1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/9v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
Onboard Receiver
Frsky version: Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version: Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible)
DSMX version: Built-in Serial-based DSM2/DSMX compatible satellite receiver
(Default RX2 was used for DSM2/DSMX receiver)
No RX version: support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.

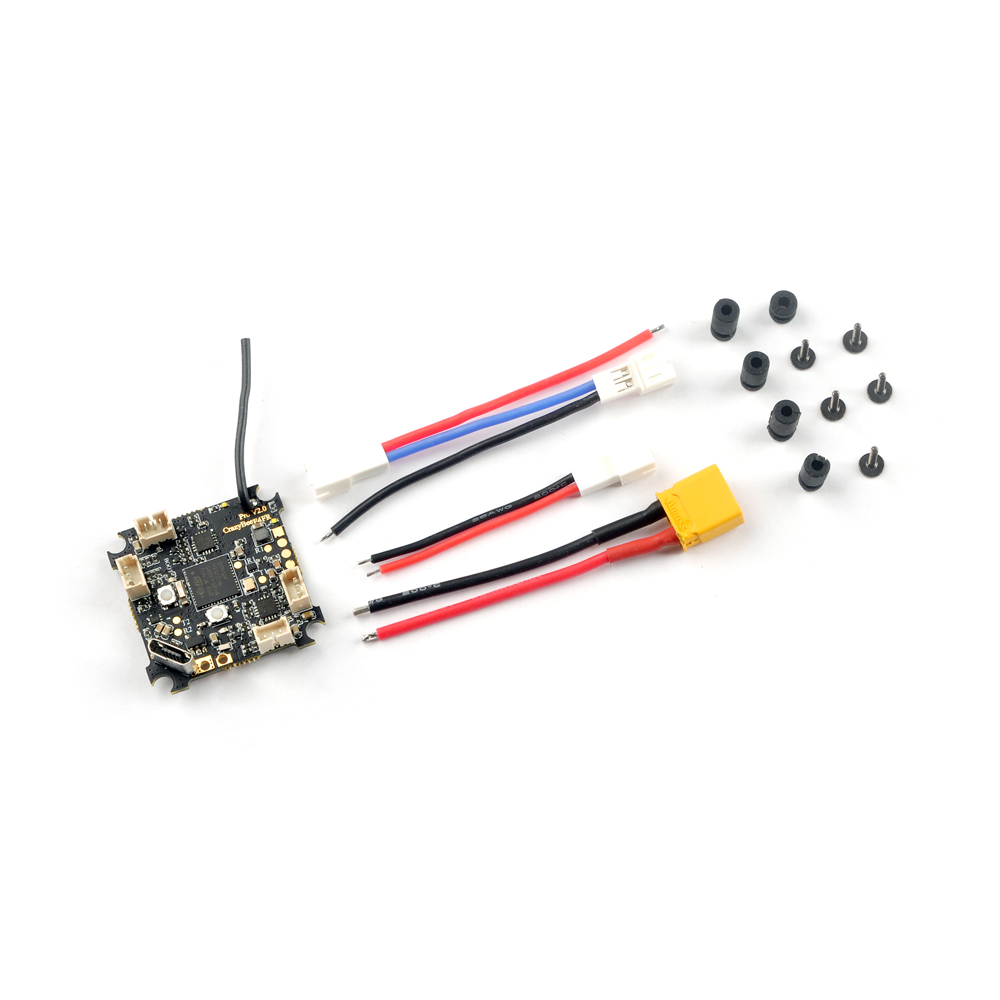

Package Included:
1x Crazybee F4 Pro V2.0 Flight Controller
