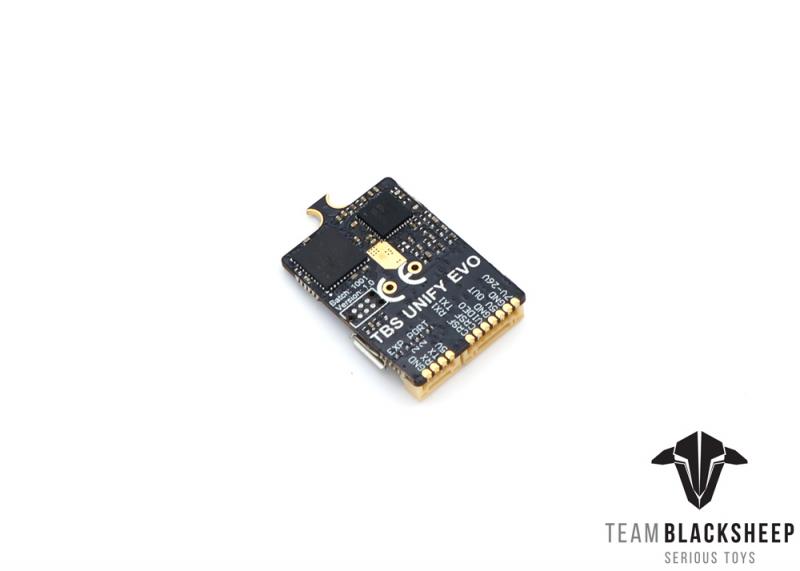

TBS Unify EVO(SMA)
¥ 7,980 税込
商品コード：
関連カテゴリ

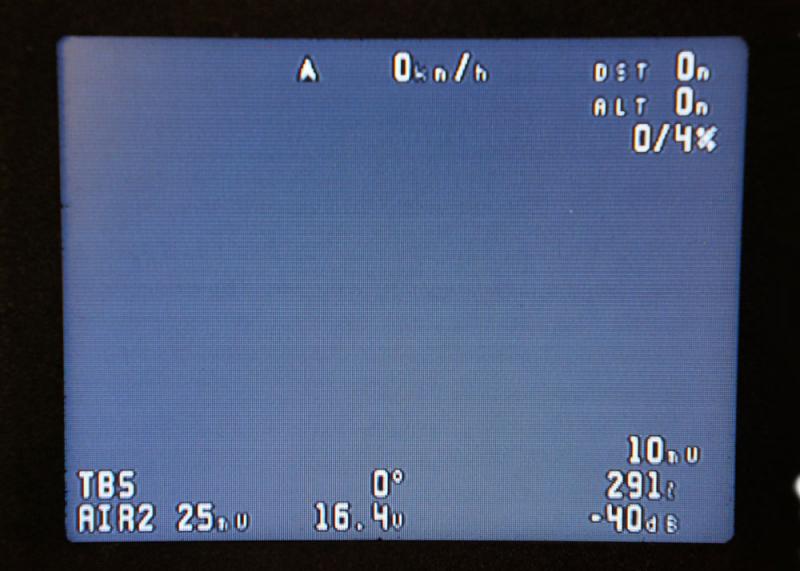

OSD付きで使いやすい高精度ハイクォリティな5.8Gトランスミッター！
バーコードをカメラに映すとCH変更が出来る優れもの！
精度が高くノイズが少ないVTXです
7gの小型軽量タイプ！
パワフルな800mW まで出力可能！
※6V~26V駆動
Specifications
Operating Voltage: 6V-26V (2S-6S)
Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A
Operating Temperature: watch for normal airflow
Video Input Impedance: 75 Ohm
Weight: 7g
Dimensions: 30 x 23 x 5.5 mm
Antenna Connector: u.FL socket
Video Format: NTSC / PAL
Audio: Microphone included
Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

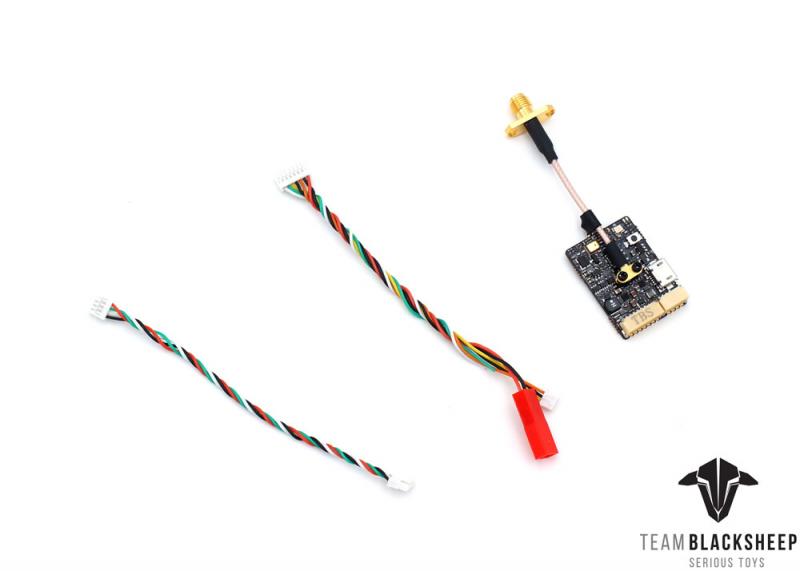

Included
1x TBS UNIFY EVO 5G8 Video transmitter
1x u.FL pigtail SMA

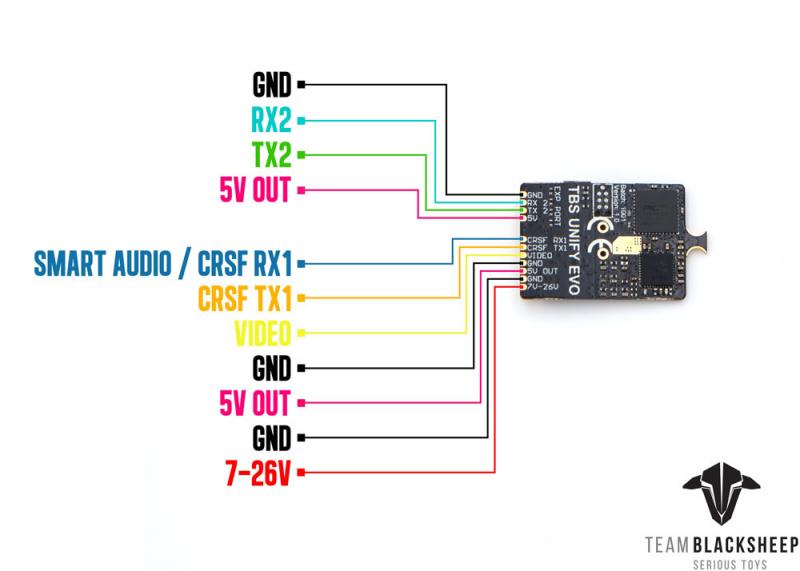

1x Power, Camera and CRSF cables
Downloads
TBS UNIFY EVO Manual
Barcode Catalog
Declaration of Conformity
3rd Party Apps
Barcode App by Swiss Fries
Barcode App by APOC
