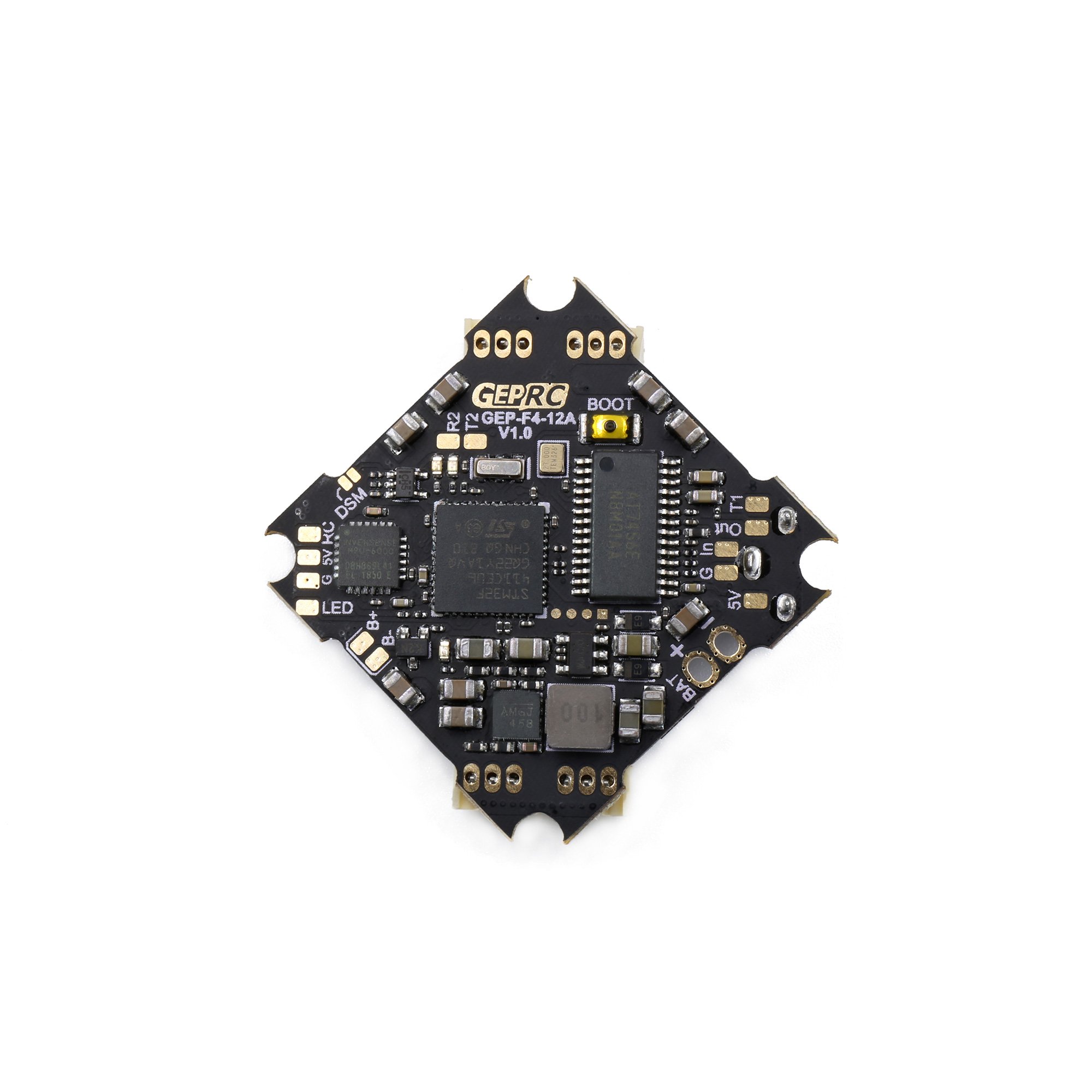

GEPRC GEP-12A-F4 Flight Controller 12A ESC

¥ 7,950 税込

商品コード:

数量

2~4セル対応のTinyサイズのオールインワンFC!

Tiny Whoopタイプに最適な12AのESC!

75~85サイズののフレームに対応します





Specifications:



Model Name:GEP-12A-F4



MCU: STM32F411



IMU: MPU6000 gyro/accelerometer (SPI)



OSD: BetaFlight OSD w/ AT7456E chip



Baro:NO



BEC Output: 5V@1A



Integrated LC Filter



Firmware target: MATEKF411



Size: 28.5×28.5mm board,25.5mm mounting holes (M2)



Installing Hole: 25.5×25.5mm, M2



ESC MCU: 8BB21F16G



Continuous current: 12A



Input voltage:2-4s lipo



Supports Dshot600 ,Oneshot,Multishot



Current meter: 210



Target: G_H_30

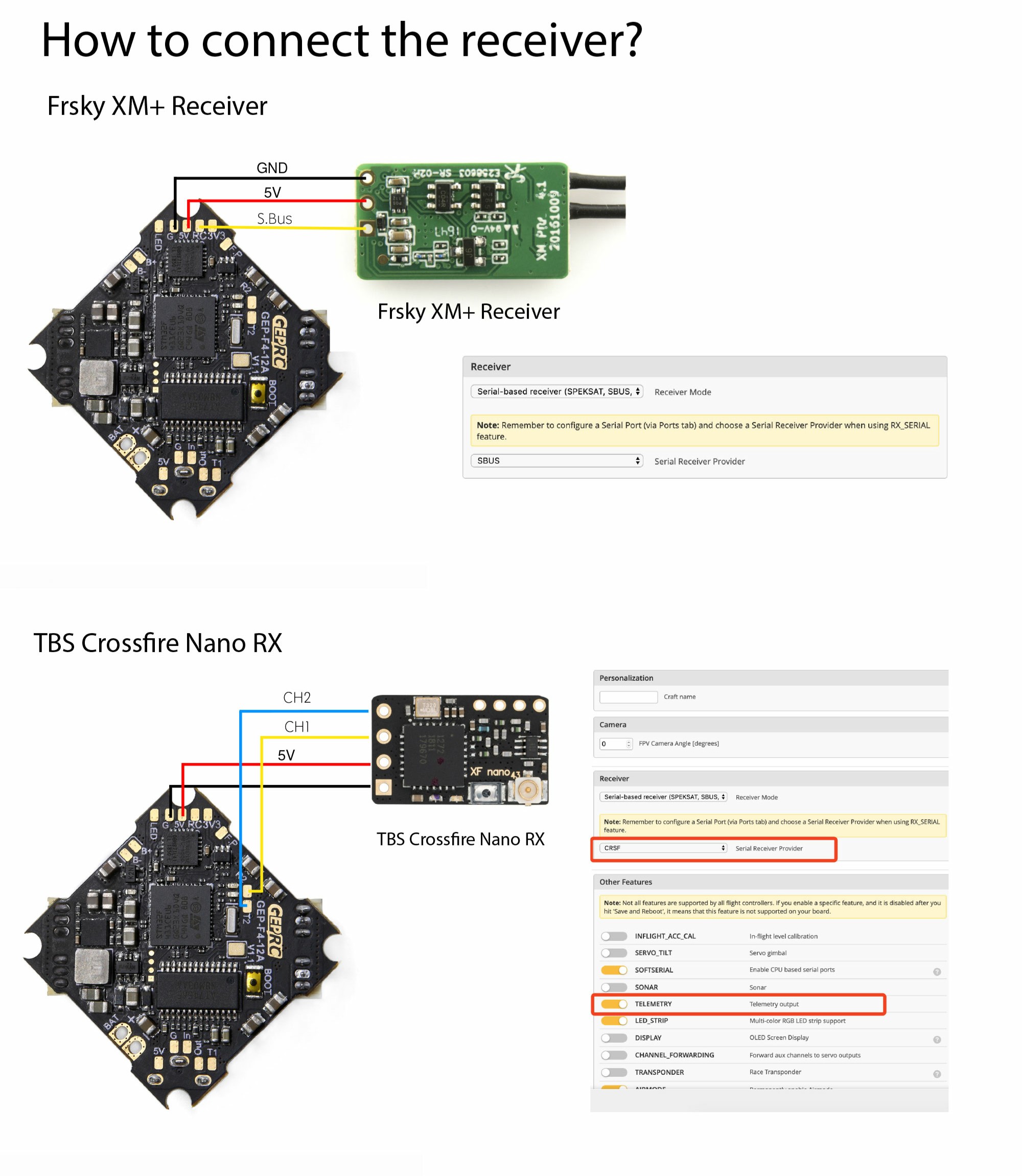

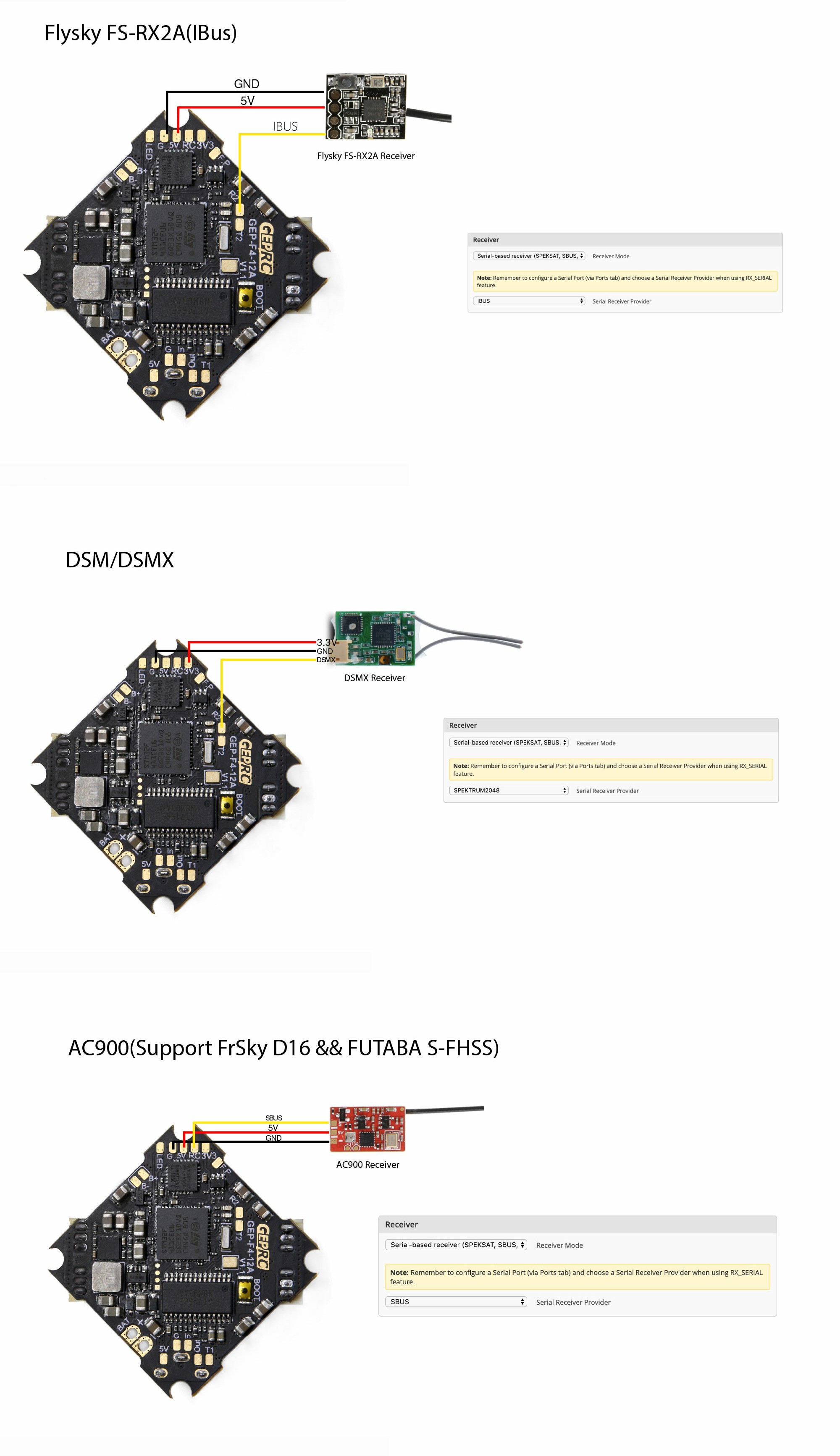

Receiver Support:







Include:



– 1 x GEP-12A-F4



– 1 x Power cable



– 8 x screw



– 4 x Soft silicone
